FQM1 Series

Flexible Motion Controllers

FQM1 Series

Advanced Power in Three Applications: Motion Control, Measurement Control, and High-speed Response Control

last update: December 13, 2013

(Unit: mm)

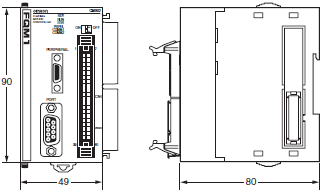

Coordinator Module
FQM1-CM002

FQM1 Series Dimensions 1

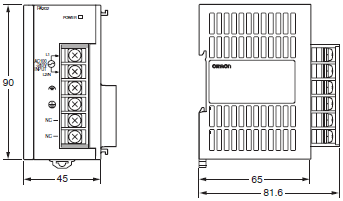

Power Supply Units
CJ1W-PA202

FQM1 Series Dimensions 2

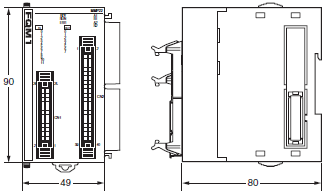

Motion Control Modules
FQM1-MMP22/MMA22

FQM1 Series Dimensions 3

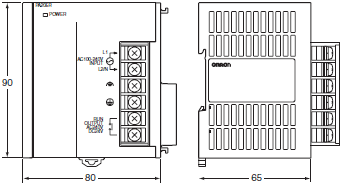

Power Supply Units
CJ1W-PA205R

FQM1 Series Dimensions 4

End Module
FQM1-TER01

FQM1 Series Dimensions 5

I/O Control Module
FQM1-IC101

FQM1 Series Dimensions 6

Assembled Dimensions

FQM1 Series Dimensions 7

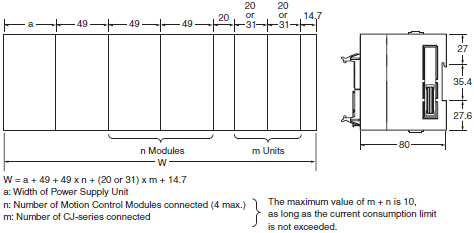

FQM1 Expanded Using CJ-series Units

FQM1 Series Dimensions 8

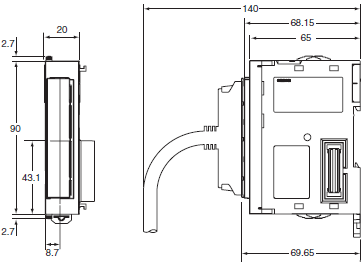

Height with Cables Connected

Height with Peripheral Port and RS-232C Port Connected

FQM1 Series Dimensions 9

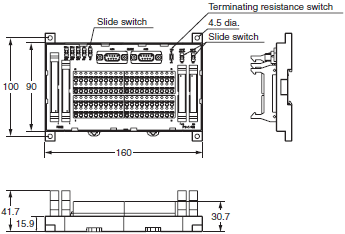

Servo Relay Unit

XW2B-80J7-1A

FQM1 Series Dimensions 11

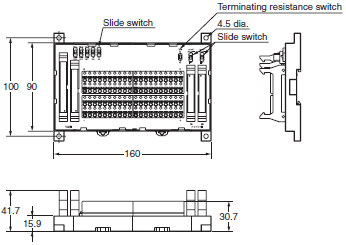

XW2B-80J7-12A

FQM1 Series Dimensions 12

last update: December 13, 2013
