K7L-U[] / UD[][]

Liquid Leakage Sensor Amplifiers for Long-distance Wiring

K7L-U[] / UD[][]

Ultra-miniature Liquid Leakage Sensor Amplifier Enables Longest Liquid Leakage Monitoring Distance in Industry. K7L-UB and K7L-UDB are our Value Design products which increase the value of your control panels.

(Unit: mm)

Liquid Leakage Sensor Amplifier

K7L-U/-UD/-UDP

K7L-U[] / UD[][] Dimensions 1

Liquid Leakage Sensor Amplifier

K7L-UB/-UDB/-UDPB

K7L-U[] / UD[][] Dimensions 2

Terminal Block *

F03-20

K7L-U[] / UD[][] Dimensions 3

Terminator *

F03-20T

K7L-U[] / UD[][] Dimensions 4

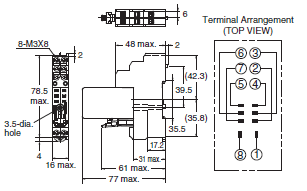

Track-mounted Sockets *

P2RFZ-08 (Round terminals can be used.)

K7L-U[] / UD[][] Dimensions 5

Note: The applicable models of the K7L depend on the model of the Socket. If the correct Socket is not used, the K7L nameplate will be upside down.

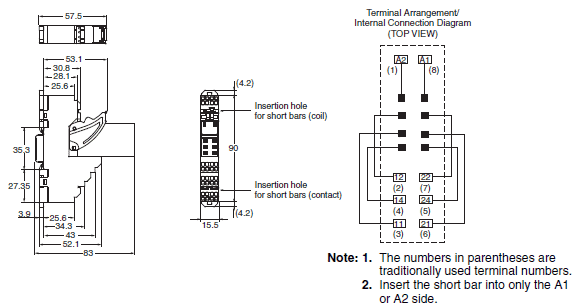

Track-mounted Sockets *

P2RFZ-08-E

K7L-U[] / UD[][] Dimensions 7

Note: The applicable models of the K7L depend on the model of the Socket. If the correct Socket is not used, the K7L nameplate will be upside down.

Front-mounting Sockets

P2RF-08-PU

K7L-U[] / UD[][] Dimensions 9

Note: The applicable models of the K7L depend on the model of the Socket. If the correct Socket is not used, the K7L nameplate will be upside down.

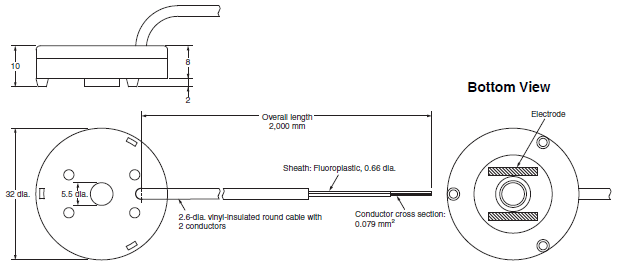

Liquid Leakage Point Sensor

F03-16PS
F03-16PS-F

K7L-U[] / UD[][] Dimensions 11

Note: Operation may not be possible with small amounts of liquid.

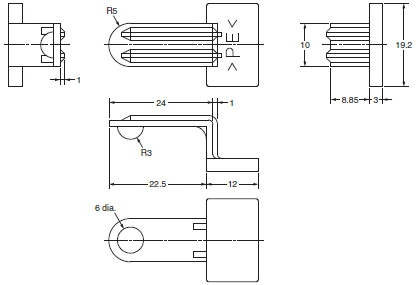

Point Sensor Mounting Bracket

F03-26PS

K7L-U[] / UD[][] Dimensions 13

* The Terminal Block is made of nylon 66. Mount the Terminal Block in locations not subject to liquid chemicals using M3 screws.
* Secure the Sockets with M3 screws at a torque of 0.78 to 1.18 N·m.
