XS5
Round Water-resistant Connectors (M12 Smartclick)
Round Water-resistive Smartclick Connectors That Reduce Installation Work
Related Contents
Application Solutions
- Features
- Lineup
- Specifications
- Dimensions
- Catalog / Manual / CAD / Software
last update: March 3, 2022
Ratings and Specifications
| Item | XS5-F, XS5C/G, XS5P/M | XS5-S/PR | XS5-P/SA |
|---|---|---|---|
| Rated current | 4 A | 3 A | 3 A |
| Rated voltage | 250 VDC | 250 VDC | 125 VDC |
| Contact resistance (connector) | 40 m max. (20 mV max., 100 mA max.) | ||
| Insulation resistance | 1,000 M min. (at 500 VDC) | ||
| Dielectric strength (connector) | 1,500 VAC for 1 min (leakage current: 1 mA max.) | ||
| Degree of protection | IP67 (IEC60529) | ||
| Insertion tolerance | 50 times | ||
| Lock strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s | ||
| Cable holding strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s (for cable diameter of 6 mm) *2 | ||
| Lock operating force | 0.1 to 0.25 N·m | ||
| Ambient operating temperature range | -25 to 70°C *3 | ||
| Ambient humidity range | 20% to 85% | ||
| Number of pressure-weld repairs *1 | 10 times max. (Limited to the same external diameter and wire diameter.) | ||
*1. Only XS5C/G (IDC models)
*2. Connectors with cables only. Refer to product specifications for details.
*3. Use the robot cable within a temperature range between 0°C and 70°C to prevent the wires inside the cable from
being broken when bending it.
*2. Connectors with cables only. Refer to product specifications for details.
*3. Use the robot cable within a temperature range between 0°C and 70°C to prevent the wires inside the cable from
being broken when bending it.
Materials and Finishes
| Model | XS5F/H/W | XS5R | XS5M/P | XS5C/G
(Crimping, Soldering) |
XS5C/G
(Screw-on) |
XS5C/G
(IDC) |
|
|---|---|---|---|---|---|---|---|
| Contacts | Copper alloy/Nickel plated | ||||||
| Fixture | Nickel plated zinc alloy | ||||||
| Fixtures (Lock) * | Stainless | ||||||
| Pin block | PBT resin | ||||||
| O-ring | Rubber | ||||||
| Cover | PBT resin | — | PBT resin | ||||
| Cable | Fire-retardant,
PVC robot cable |
UL AWM2464 CL3, 6 mm dia.,
AWG20 Sheath color: light gray |
— | ||||
| Fire-retardant,
thin PVC robot cable |
UL CL3, 4 mm dia.,
AWG20 Sheath color: black |
— | |||||
| Oil-resistant
polyurethane robot cable |
4.7 mm dia.
AWG23 Sheath color: black |
— | |||||
| Oil-resistant
polyurethane cable |
6 mm dia.
AWG20 Sheath color: dark gray |
— | |||||
| Spatter-resistant
Cable |
6.6 mm dia.
AWG20 Sheath color: blue |
— | |||||
* Only plug

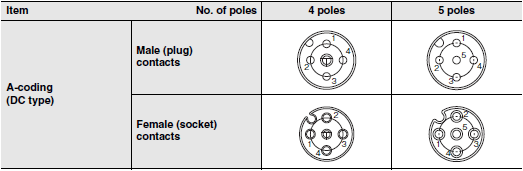

Pin Arrangement (Engaged Side)

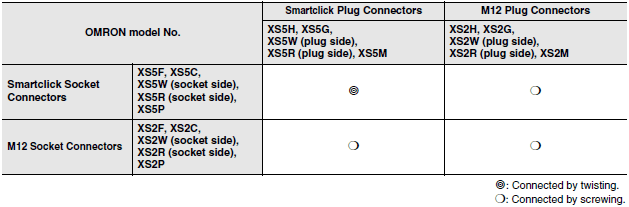

Connection
Note: The XS[]M and XS[]P cannot mate with each other.
XS5[] Eight-pole Connectors with Cables
Ratings and Specifications
| Rated current | 1.5 A |
|---|---|
| Rated voltage | 36 VDC |
| Contact resistance | 40 mΩ max. (at 20 mVDC max. and 100 mA max.) |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) |
| Dielectric strength | 1,000 VAC for 1 min (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC60529) |
| Insertion tolerance | 50 times |
| Ambient operating temperature range | -25 to 70°C |
| Ambient humidity range | 20% to 85% |
Materials and Finish
| Contacts | Brass, gold plating |
|---|---|
| Fixture | Nickel plated zinc alloy *1 |
| Body | Nickel plated zinc alloy *2 |
| Nut | Nickel plated brass *2 |
| Fixtures (lock) | Stainless *2 |
| Pin block | PBT resin |
| Cover *1 | Soft PBT resin |
| Seal resin *2 | Rubber |
| O-ring *1 |
*1. XS5F only.
*2. XS5M only.
