XW3D

Connector Terminal Boxes

XW3D

Simple Wiring of Sensors, Limit Switches and Actuators

(Unit: mm)

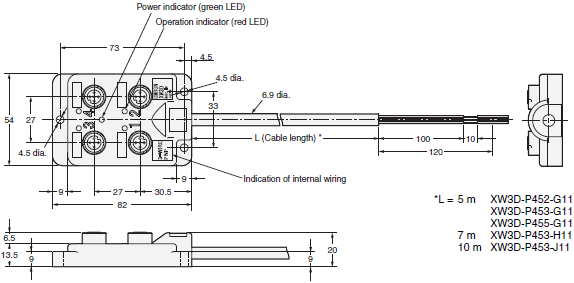

XW3D-P452-[]11
XW3D-P453-[]11
XW3D-P455-[]11
(Model with Four Ports and One I/O)

XW3D Dimensions 1

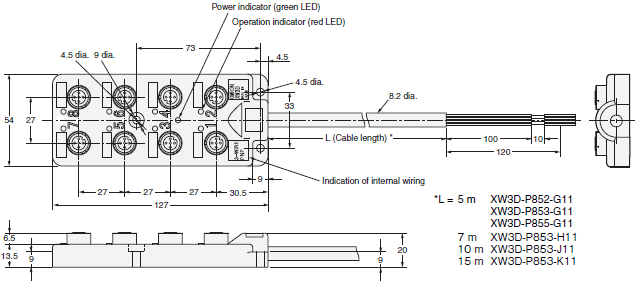

XW3D-P852-[]11
XW3D-P853-[]11
XW3D-P855-[]11
(Model with Eight Ports and One I/O)

XW3D Dimensions 2

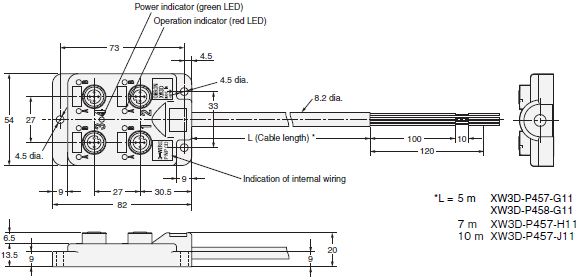

XW3D-P457-[]11
XW3D-P458-[]11
(Model with Four Ports and Two I/O)

XW3D Dimensions 3
