H3M

Solid-state Timer

H3M

Solid-state Timer with Variable Time Ranges

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: November 12, 2012

(Unit: mm)

H3M(-H)

Accessories (Order Separately)

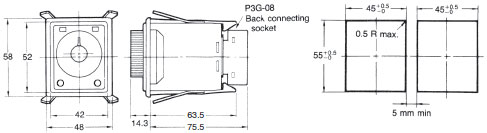

Adapter with Flush Mounting

Y92F-40

Note: When two or more timers mounted in line are to be continuously energized at the same time after the lapse of the
set time, be sure to limit the carry current to less than 1 A. When using the timers at an ambient temperature of
more than 40°C, be sure to reset the timers immediately after the set time has elapsed.

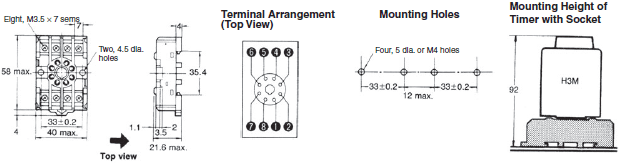

Track Mounted/Front Connecting Socket

PF085A

Note: There are no restrictions to the mounting direction.

Hold-down Clips (Attached)

PHC-1 For PF085A

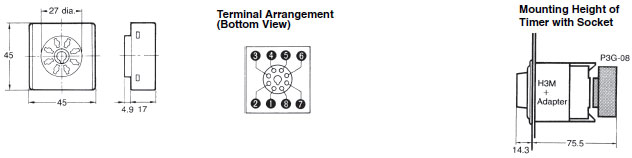

Back Connecting Socket

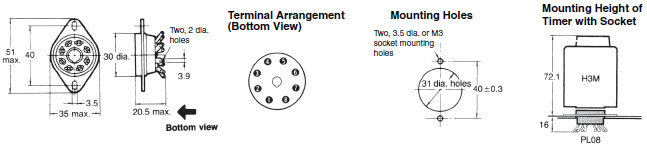

PL08

P3G-08

last update: November 12, 2012
