H5F

Digital Daily Time Switch

H5F

Daily Time Control with Simple Operations

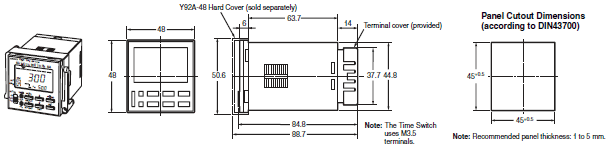

H5F-B (provided with Y92F-30 Flush Mounting Adapter)
(Flush Mounting)

H5F Dimensions 2 H5F-B_Dim

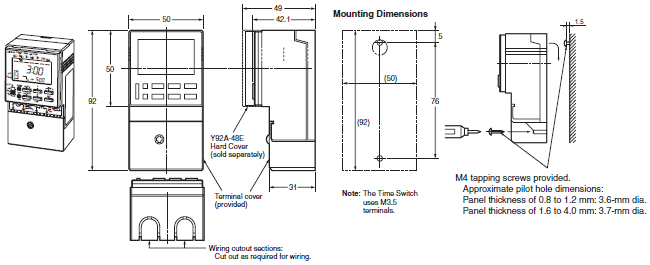

H5F-FB
(Surface Mounting)

H5F Dimensions 4 H5F-FB_Dim

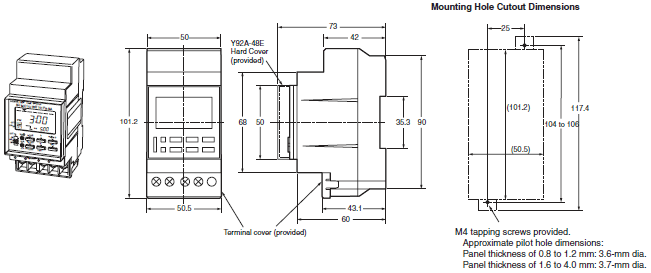

H5F-KB
(Surface/Track Mounting)

H5F Dimensions 6 H5F-FB_Dim

Accessories (Order Separately)

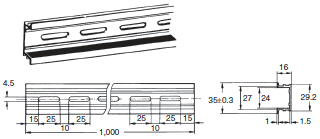

Mounting Track

PFP-100N, PFP-50N

H5F Dimensions 9 PFP-100N_Dim

PFP-100N2

H5F Dimensions 10 PFP-100N2_Dim

Note:The values shown in parentheses are for the PFP-50N.

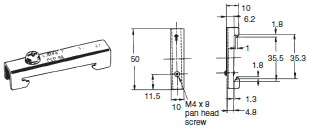

End Plate
PFP-M

H5F Dimensions 12 PFP-M_Dim

Spacer
PFP-S

H5F Dimensions 13 PFP-S_Dim
