PS-[]S(R) / -31

Electrode Holder

PS-[]S(R) / -31

Separate Electrode Holders for Water Supply and Drainage Control in Buildings. Small, Lightweight Electrode Holders for Use as Built-in Components.

(Unit: mm)

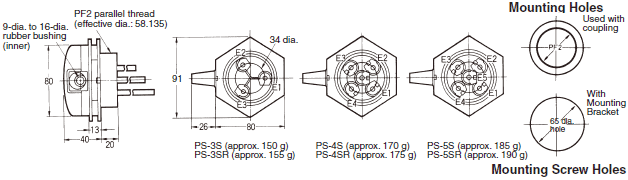

Electrode Holders

PS-3S/-4S/-5S
PS-3SR/-4SR/-5SR
(see note)

PS-[]S(R) / -31 Dimensions 2

Note: The PS-3SR, PS-4SR, and PS-5SR have built-in resistor of 6.8 kΩ and used for the two-wire 61F models.

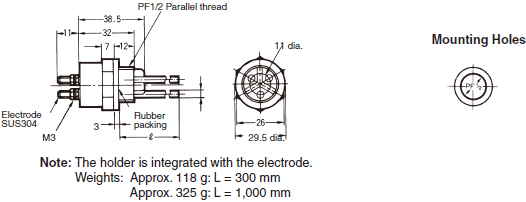

PS-31

PS-[]S(R) / -31 Dimensions 3
