SGE / SCC

Safety Edge/Edge Controller

SGE / SCC

Safety sensors to detect contacts by mounting to moving parts of hazards

Edge Controller

Product Appearance Safety
output
Auxiliary output Rated
voltage
Terminal
block type
Model
Safety Mat/
Edge Controller *
2617_lu_1_1 SPDT-NO SPST-NO 120 VAC
or
24 VAC/DC
Screw
terminals
SCC-1224A

* Can also be connected with UMA-series Safety Mats.
  Refer to the SCC-1224A Safety Mat/Edge Controller User Manual (Cat. No. Z394) for details.

Safety Edge

Appearance Cross-sectional dimensions
(including a standard
mounting base) *1
Actuation
distance
*2
Material Model Specification
(Cable)
2617_lu_2_1

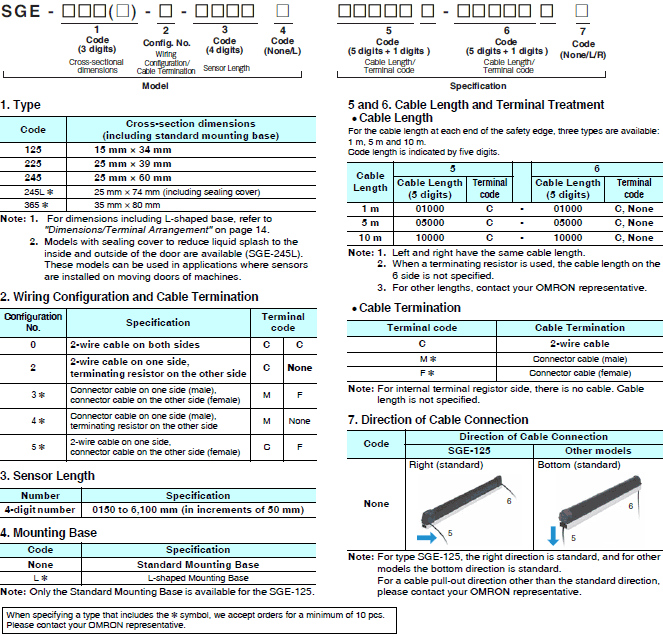

15 mm x 34 mm 2.6 mm TPE SGE-125-[]-[] [](-[])
2617_lu_2_2
25 mm x 39 mm 3.9 mm EPDM SGE-225-[]-[] (L) [](-[])
2617_lu_2_3
25 mm x 60 mm 7.4 mm SGE-245-[]-[] (L) [](-[])
2617_lu_2_4
25 mm x 60 mm
25 mm x 74 mm
(including sealing cover)
SGE-245L-[]-[] (L) [](-[])
2617_lu_2_5
35 mm x 80 mm 5.2 mm SGE-365-[]-[] (L) [](-[])

*1. For dimensions including L-shaped base, refer to "Dimensions/Terminal Arrangement" on Catalog.
*2. Values of actuation distance are characteristic values tested according to EN ISO 13856-2 using a test object of ϕ80
     mm and actuating point C3 under a test temperature of 20°C and test speed v = 10 mm/s. Refer to "Characteristics"
     on Catalog for details.
