FJ Series (All-in-One Vision System)

Discontinued On May. 2018

FJ Series (All-in-One Vision System)

PC Vision System

FJ Series (All-in-One Vision System)

PC-based, flexible image processing system. All-in-One Vision System.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: February 7, 2018

(Unit: mm)

Controllers

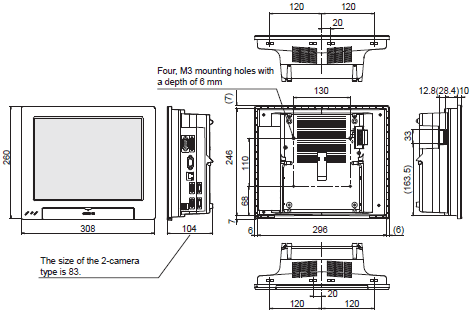

LCD-integrated type

FJ-300[]/FJ-300[]-10
FJ-H300[]/FJ-H300[]-10

FJ Series (All-in-One Vision System) Dimensions 3

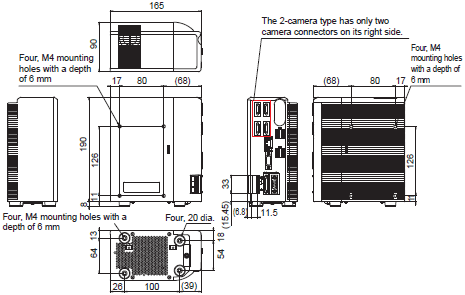

Box-type

FJ-305[]/FJ-305[]-10
FJ-H305[]/FJ-H305[]-10

FJ Series (All-in-One Vision System) Dimensions 5

FJ-35[]/FJ-35[]-10

FJ Series (All-in-One Vision System) Dimensions 6

Cable

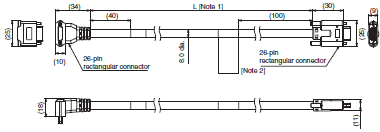

Camera Cable

Camera Cable

FZ-VS3

FJ Series (All-in-One Vision System) Dimensions 9

Bend resistant Camera Cable

FZ-VSB3

FJ Series (All-in-One Vision System) Dimensions 10

Right-angle Camera Cable

FZ-VSL3

FJ Series (All-in-One Vision System) Dimensions 11

Bend resistant Right-angle Camera Cable

FZ-VSLB3

FJ Series (All-in-One Vision System) Dimensions 12

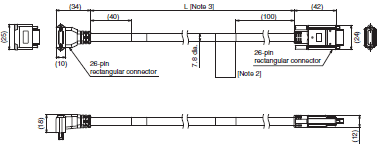

Long-distance Camera Cable

FZ-VS4

FJ Series (All-in-One Vision System) Dimensions 13

Long-distance Right-angle Camera Cable

FZ-VSL4

FJ Series (All-in-One Vision System) Dimensions 14

Note1. Cable is available in 2m/3m/5m/10m.
2. Each camera cables has polarity. Please ensure that the name plate side of the cable is connected to the
controller.
3. Cable is available in 15m.

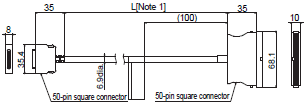

Parallel Cable

FZ-VP

FJ Series (All-in-One Vision System) Dimensions 17

Note 1: cable is available in 2 m/5 m.

FZ-VPX

FJ Series (All-in-One Vision System) Dimensions 18

Note 1: cable is available in 2 m/5 m.

Monitor Cable

FZ-VM

FJ Series (All-in-One Vision System) Dimensions 20

Note 1: cable is available in 2 m/5 m.

Cameras

Digital cameras

300,000-pixel camera
FZ-S
FZ-SC

FJ Series (All-in-One Vision System) Dimensions 23

2 million-pixel camera
FZ-S2M
FZ-SC2M

FJ Series (All-in-One Vision System) Dimensions 24

Small digital cameras

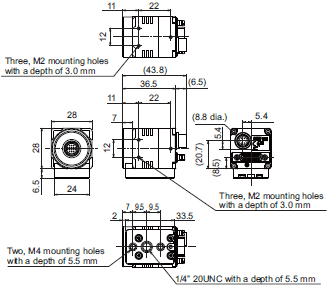

Camera head

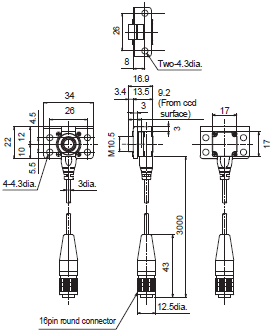

Flat camera
FZ-SF
FZ-SFC

FJ Series (All-in-One Vision System) Dimensions 26

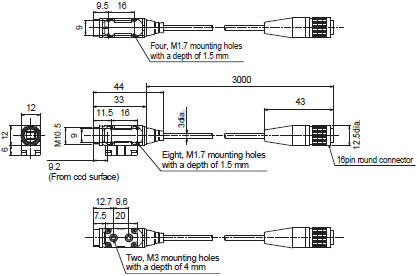

Pen-shaped camera
FZ-SP
FZ-SPC

FJ Series (All-in-One Vision System) Dimensions 27

Camera amplifier
Can be used for both flat cameras and pen-shaped cameras

FJ Series (All-in-One Vision System) Dimensions 28

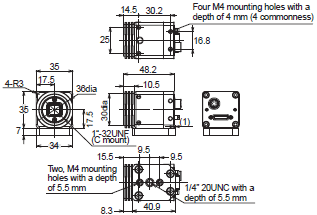

High speed camera

FZ-SHC
FZ-SH

FJ Series (All-in-One Vision System) Dimensions 30

Intelligent Compact Cameras

(Dimensional drawings are provided here only for the products that have undergone design changes as of Dec. 2012.)

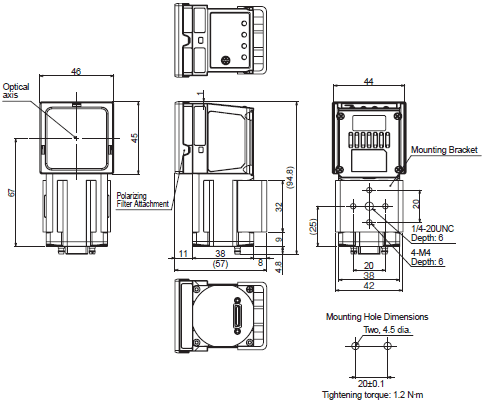

Narrow view/Standard

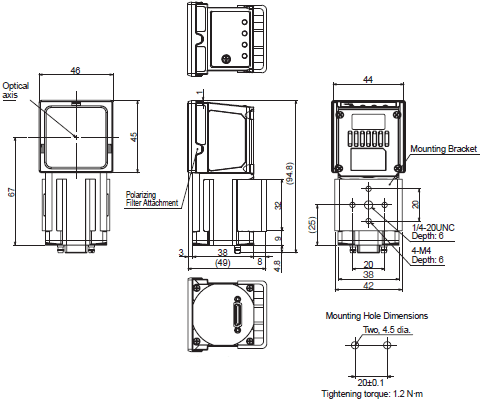

FZ-SQ010F
FZ-SQ050F

FJ Series (All-in-One Vision System) Dimensions 32

Note 1. The mounting brackets can be connected to either side.

Wide View
FZ-SQ100F (long-distance)
FZ-SQ100N (short-distance)

FJ Series (All-in-One Vision System) Dimensions 33

Note 1. The mounting brackets can be connected to either side.

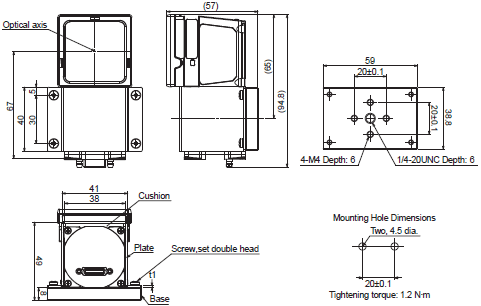

See the diagram below when mounting bracket FQ-XL2 is attached.

FJ Series (All-in-One Vision System) Dimensions 34

Lens for small camera

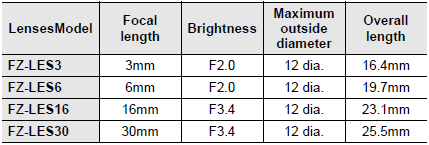

FZ-LES Series

FJ Series (All-in-One Vision System) Dimensions 36

FJ Series (All-in-One Vision System) Dimensions 37

Extension Tubes for small camera

FZ-LESR

FJ Series (All-in-One Vision System) Dimensions 39

Camera Cable Extension Unit

FZ-VSJ

FJ Series (All-in-One Vision System) Dimensions 41

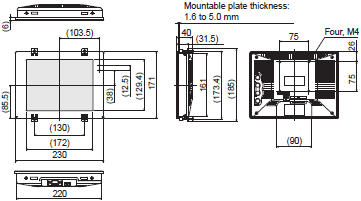

LCD Monitor

FZ-M08

FJ Series (All-in-One Vision System) Dimensions 43
