3G3RX-V1

High-function General-purpose Inverters

3G3RX-V1

Versatile for a Wide Range of Applications

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: December 6, 2019

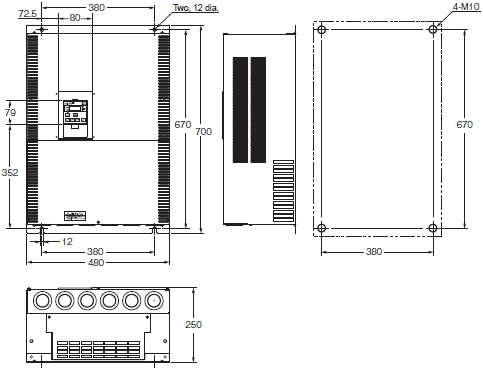

(Unit: mm)

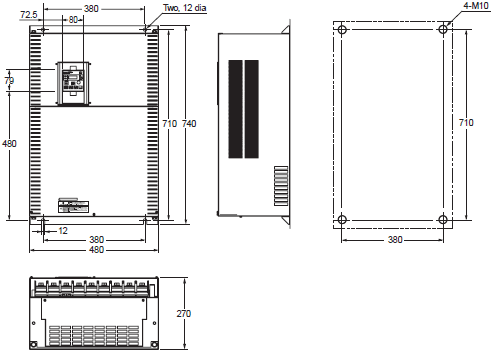

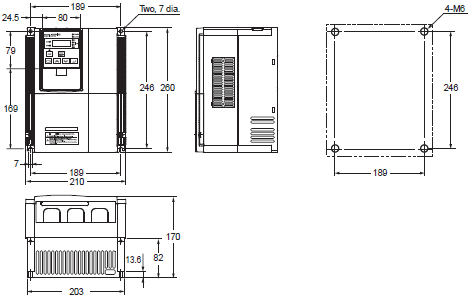

Inverter 3G3RX-V1

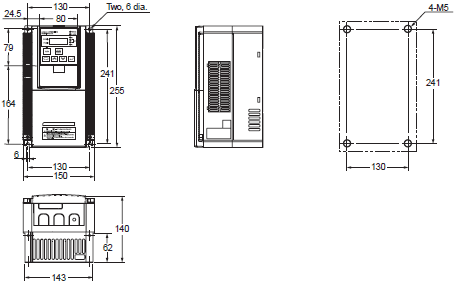

3G3RX-A2004-V1
3G3RX-A2007-V1
3G3RX-A2015-V1
3G3RX-A2022-V1
3G3RX-A2037-V1
3G3RX-A4004-V1
3G3RX-A4007-V1
3G3RX-A4015-V1
3G3RX-A4022-V1
3G3RX-A4037-V1

3G3RX-A2055-V1
3G3RX-A2075-V1
3G3RX-A2110-V1
3G3RX-A4055-V1
3G3RX-A4075-V1
3G3RX-A4110-V1

3G3RX-A2150-V1
3G3RX-A2185-V1
3G3RX-A2220-V1
3G3RX-A4150-V1
3G3RX-A4185-V1
3G3RX-A4220-V1

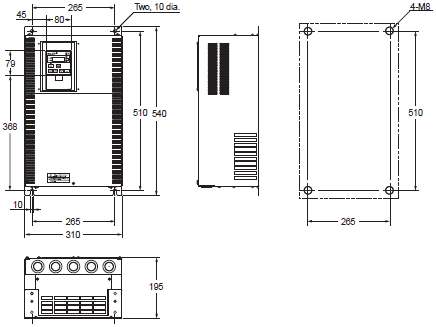

3G3RX-A2300-V1
3G3RX-A4300-V1

3G3RX-A2370-V1
3G3RX-A2450-V1
3G3RX-A4370-V1
3G3RX-A4450-V1
3G3RX-A4550-V1

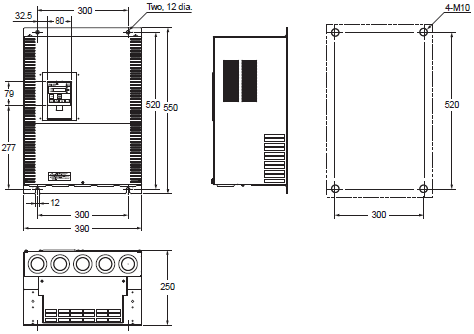

3G3RX-A2550-V1

3G3RX-B4750-V1
3G3RX-B4900-V1

3G3RX-B411K-V1
3G3RX-B413K-V1

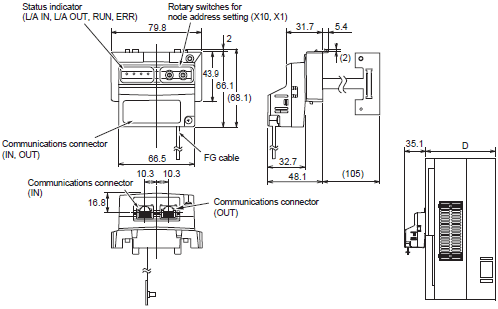

Communication Unit

RX-Series V1 type EtherCAT Communication Unit 3G3AX-RX-ECT

Note: After the EtherCAT Communication Unit is installed, dimension D of the inverter increases by 35.1 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to the RX-series V1 type USER'S MANUAL
(Cat. No. I578))

RX-Series V1 type CompoNet™ Communication Unit 3G3AX-RX-CRT-E

Note: After the CompoNet™ Communication Unit is installed, dimension D of the inverter increases by 35.1 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to the RX-series V1 type USER'S MANUAL
(Cat. No. I578))

RX-Series V1 type DeviceNet™ Communication Unit 3G3AX-RX-DRT-E

Note: After the DeviceNet™ Communication Unit is installed, dimension D of the inverter increases by 35.1 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to the RX-series V1 type USER'S MANUAL
(Cat. No. I578))
