E52 (Exclusive Models)

Temperature Sensor (Exclusive Models)

E52 (Exclusive Models)

Thermocouples for Molding Machines, Thermocouples with Crimp Terminals, Surface Temperature Measurement, Room Temperature Measurement, Waterproof Platinum Resistance Thermometers, Corrosion-resistant Models, Pressure-resistant Explosion-proof Models and Double-element Models

(Unit: mm)

Exclusive Models

Thermocouples

Thermocouples for Molding Machines

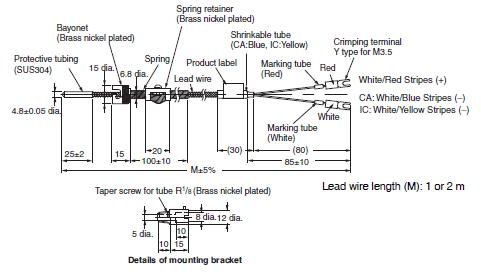

E52-CA2GVY, E52-IC2GVY

E52 (Exclusive Models) Dimensions 4

Note: The Adapter is included with the Thermocouple.
          If it is lost or damaged, you can order a replacement with the following model number.
          Adapter: Y92F-S1

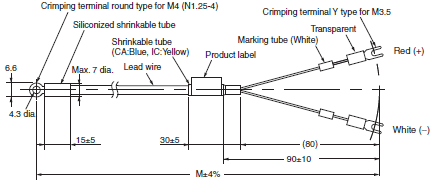

Thermocouples with Crimp Terminal

E52-CA1GTY, E52-IC1GTY

E52 (Exclusive Models) Dimensions 6

Platinum Resistance Thermometers

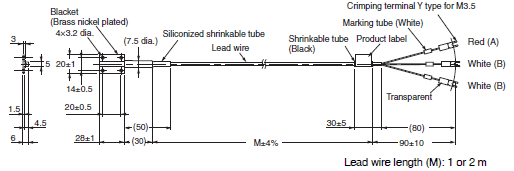

Platinum Resistance Thermometers for Surface Temperature Measurement

E52-P2GSY

E52 (Exclusive Models) Dimensions 9

Platinum Resistance Thermometers for Room Temperature Measurement

E52-P10GRY

E52 (Exclusive Models) Dimensions 11

Waterproof Platinum Resistance Thermometers

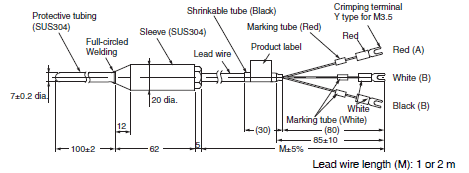

E52-P10GPY

E52 (Exclusive Models) Dimensions 13

Note: The lead wires are vinyl-covered, and cannot be used underwater.
         Use the E52-P5AY-40 if waterproof lead wires are required for use underwater.

Corrosion-resistant Models with Fluororesin-covered Protective Tubing

Thermocouples

Exposed-lead Models

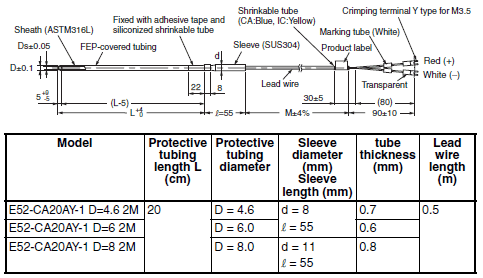

E52-CA20AY-1

E52 (Exclusive Models) Dimensions 17

Platinum Measurement

Exposed-lead Models

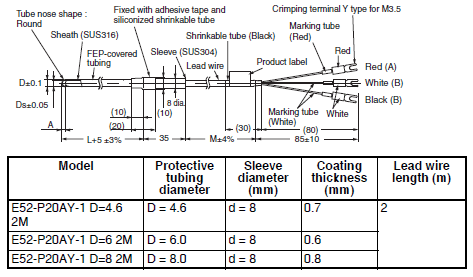

E52-P20AY-1

E52 (Exclusive Models) Dimensions 20

FEP-molded Models (Completely Waterproof)

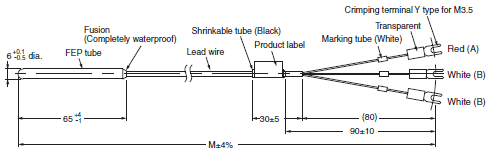

E52-P5AY-40

E52 (Exclusive Models) Dimensions 22

Pressure-resistant Explosion-proof (IICT6) Models

Thermocouples

Enclosed-terminal Models

E52-CA[][]C-N-6

E52 (Exclusive Models) Dimensions 26

Platinum Resistance Thermometers for Surface Temperature Measurement

Enclosed-terminal Models

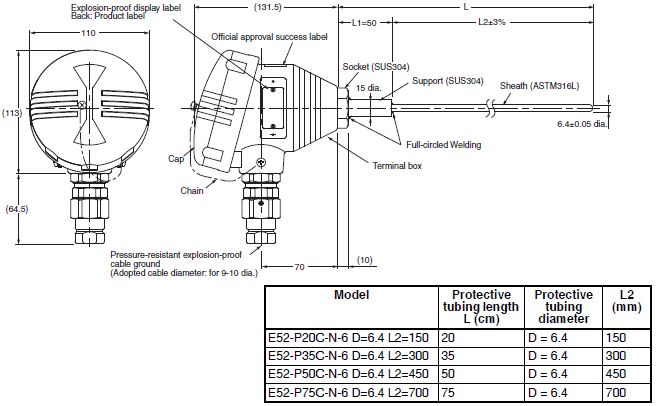

E52-P[][]C-N-6

E52 (Exclusive Models) Dimensions 29

Double-element Models

Thermocouple

Exposed-lead Models

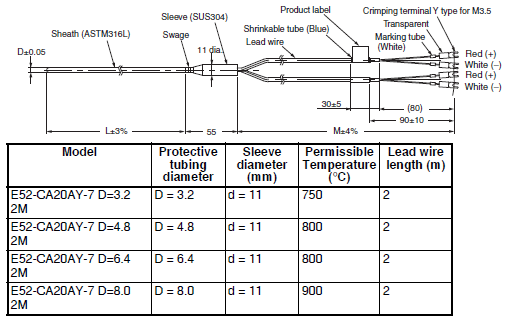

E52-CA20AY-7

E52 (Exclusive Models) Dimensions 33

Platinum Resistance Thermometers

Exposed-lead Models

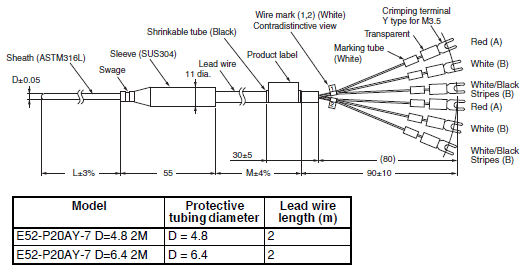

E52-P20AY-7

E52 (Exclusive Models) Dimensions 36

Enclosed-terminal Models

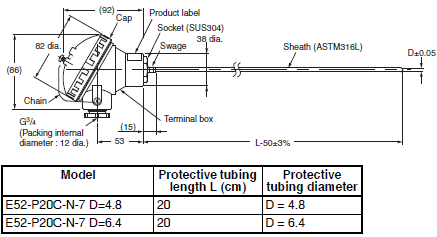

E52-P20C-N-7

E52 (Exclusive Models) Dimensions 38

Terminal for terminal connection Size: M4
Note: The length L is in centimeters, but “50” is 50 millimeters.
         Therefore, for the E52-P20C-N-7: L = 20 (cm), the sheath length L - 50 = 200 - 50 = 150 mm.

Silicone-covered Lead Wires Models

Thermocouples

Exposed-lead Models with Screws

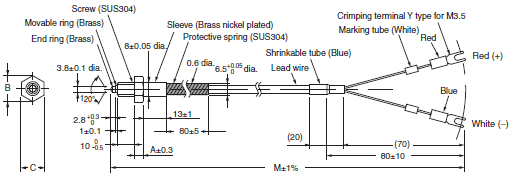

E52-CA1DY-40

E52 (Exclusive Models) Dimensions 42

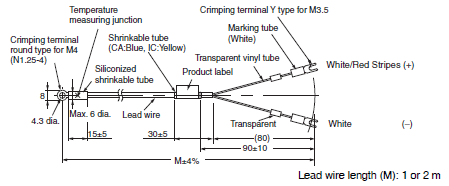

Thermocouples with Crimp Terminal

E52-CA1GTY-14

E52 (Exclusive Models) Dimensions 44

Lead wire length (M): 1 or 2 m
