3G3MX2-V1

Multi-function Compact Inverter

3G3MX2-V1

Born to drive machines

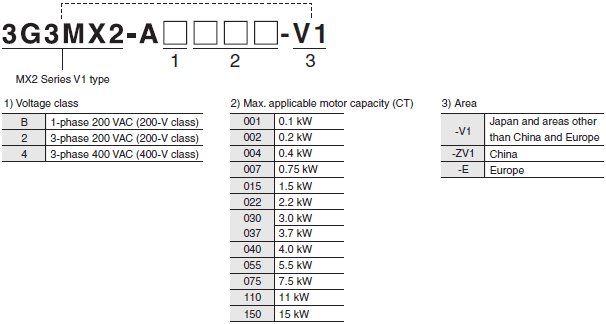

Interpreting Model Numbers

3G3MX2-V1 Lineup 1

3G3MX2 Inverter Models

Note: Inverters with model numbers ending in "-V1" are designed to be used in areas other than China and Europe.
           Refer to the above "Interpreting Model Numbers" for the model numbers for China and Europe.

Rated voltage Enclosure ratings Max. applicable motor capacity Model
CT: Heavy load VT: Light load
3-phase 200 VAC IP20 0.1 kW 0.2 kW 3G3MX2-A2001-V1
0.2 kW 0.4 kW 3G3MX2-A2002-V1
0.4 kW 0.75 kW 3G3MX2-A2004-V1
0.75 kW 1.1 kW 3G3MX2-A2007-V1
1.5 kW 2.2 kW 3G3MX2-A2015-V1
2.2 kW 3.0 kW 3G3MX2-A2022-V1
3.7 kW 5.5 kW 3G3MX2-A2037-V1
5.5 kW 7.5 kW 3G3MX2-A2055-V1
7.5 kW 11 kW 3G3MX2-A2075-V1
11 kW 15 kW 3G3MX2-A2110-V1
15 kW 18.5 kW 3G3MX2-A2150-V1
3-phase 400 VAC IP20 0.4 kW 0.75 kW 3G3MX2-A4004-V1
0.75 kW 1.5 kW 3G3MX2-A4007-V1
1.5 kW 2.2 kW 3G3MX2-A4015-V1
2.2 kW 3.0 kW 3G3MX2-A4022-V1
3.0 kW 4.0 kW 3G3MX2-A4030-V1
4.0 kW 5.5 kW 3G3MX2-A4040-V1
5.5 kW 7.5 kW 3G3MX2-A4055-V1
7.5 kW 11 kW 3G3MX2-A4075-V1
11 kW 15 kW 3G3MX2-A4110-V1
15 kW 18.5 kW 3G3MX2-A4150-V1
1-phase 200 VAC IP20 0.1 kW 0.2 kW 3G3MX2-AB001-V1
0.2 kW 0.4 kW 3G3MX2-AB002-V1
0.4 kW 0.55 kW 3G3MX2-AB004-V1
0.75 kW 1.1 kW 3G3MX2-AB007-V1
1.5 kW 2.2 kW 3G3MX2-AB015-V1
2.2 kW 3.0 kW 3G3MX2-AB022-V1

Communication Unit

Name Model
EtherCAT Communication Unit 3G3AX-MX2-ECT
CompoNet Communication Unit 3G3AX-MX2-CRT-E
DeviceNet Communication Unit 3G3AX-MX2-DRT-E

Related Options

Name Specifications Model
Regenerative
Braking Units
3-phase 200 VAC General purpose with Braking resistor 3G3AX-RBU21
High Regeneration purpose with Braking resistor 3G3AX-RBU22
3-phase 400 VAC General purpose with Braking resistor 3G3AX-RBU41
Braking Resistor Compact type Resistor 120 W, 180 Ω 3G3AX-RBA1201
Resistor 120 W, 100 Ω 3G3AX-RBA1202
Resistor 120 W, 5 Ω 3G3AX-RBA1203
Resistor 120 W, 35 Ω 3G3AX-RBA1204
Standard type Resistor 200 W, 180 Ω 3G3AX-RBB2001
Resistor 200 W, 100 Ω 3G3AX-RBB2002
Resistor 300 W, 50 Ω 3G3AX-RBB3001
Resistor 400 W, 35 Ω 3G3AX-RBB4001
Medium capacity type Resistor 400 W, 50 Ω 3G3AX-RBC4001
Resistor 600 W, 35 Ω 3G3AX-RBC6001
Resistor 1200 W, 17 Ω 3G3AX-RBC12001

Regenerative Braking Unit and Braking Resistor Combination

Inverter Usage
conditions
Regenerative
braking unit
Braking resistor Con-
nec-
tion
con-
figu-
ra-
tion
Restrictions
Volt-
age
Max.
appli-
cable
motor
ca-
pacity
(kW)
Model %ED
*1
(%)
Ap-
proxi-
mate
braking
torque
(% *2)
Model Num-
ber
of
units
Model Num-
ber
of
units
Allowa-
ble
contin-
uous
braking
time
(s)
Min.
con-
nect-
able
resis-
tance
(Ω)
200-V
Class
0.1 3G3MX2-
A2001-V1
3G3MX2-
AB001-V1
3.0% 220% Built-in
Inverter
3G3AX-RBA1201 1 1 20 100
10.0% 220% 3G3AX-RBB2001 1 1 30 100
0.2 3G3MX2-
A2002-V1
3G3MX2-
AB002-V1
3.0% 220% Built-in
Inverter
3G3AX-RBA1201 1 1 20 100
10.0% 220% 3G3AX-RBB2001 1 1 30 100
0.4 3G3MX2-
A2004-V1
3G3MX2-
AB004-V1
3.0% 220% Built-in
Inverter
3G3AX-RBA1201 1 1 20 100
10.0% 220% 3G3AX-RBB2001 1 1 30 100
0.75 3G3MX2-
A2007-V1
3G3MX2-
AB007-V1
3.0% 120% Built-in
Inverter
3G3AX-RBA1201 1 1 20 50
10.0% 120% 3G3AX-RBB2001 1 1 30 50
1.5 3G3MX2-
A2015-V1
3G3MX2-
AB015-V1
2.5% 110% Built-in
Inverter
3G3AX-RBA1202 1 1 12 50
10.0% 215% 3G3AX-RBC4001 1 1 10 50
2.2 3G3MX2-
A2022-V1
3G3MX2-
AB022-V1
3.0% 150% Built-in
Inverter
3G3AX-RBB3001 1 1 30 35
10.0% 150% 3G3AX-RBC4001 1 1 10 35
3.7 3G3MX2-
A2037-V1
3.0% 125% Built-in
Inverter
3G3AX-RBB4001 1 1 20 35
10.0% 125% 3G3AX-RBC6001 1 1 10 35
5.5 3G3MX2-
A2055-V1
3.0% 120% Built-in
Inverter
3G3AX-RBB3001 2 2 30 20
10.0% 120% 3G3AX-RBC4001 2 2 10 20
7.5 3G3MX2-
A2075-V1
3.0% 125% Built-in
Inverter
3G3AX-RBB4001 2 2 20 17
10.0% 125% 3G3AX-RBC6001 2 2 10 17
11 3G3MX2-
A2110-V1
3.0% 90% Built-in
Inverter
3G3AX-RBC12001 1 1 10 17
10.0% 90% 3G3AX-RBC12001 1 1 10 17
10.0% 125% 3G3AX-
RBU23
*3
1 3G3AX-RBC6001 3 14 10 4
15 3G3MX2-
A2150-V1
3.0% 110% Built-in
Inverter
3G3AX-RBB3001 5 7 30 10
10.0% 110% 3G3AX-RBC4001 5 7 10 10
400-V
Class
0.4 3G3MX2-
A4004-V1
3.0% 220% Built-in
Inverter
3G3AX-RBA1201 2 3 20 180
10.0% 220% 3G3AX-RBB2001 2 3 30 180
0.75 3G3MX2-
A4007-V1
3.0% 220% Built-in
Inverter
3G3AX-RBA1201 2 3 20 180
10.0% 220% 3G3AX-RBB2001 2 3 30 180
1.5 3G3MX2-
A4015-V1
3.0% 120% Built-in
Inverter
3G3AX-RBA1201 2 3 20 180
10.0% 120% 3G3AX-RBB2001 2 3 30 180
2.2 3G3MX2-
A4022-V1
2.5% 150% Built-in
Inverter
3G3AX-RBA1202 2 3 12 100
10.0% 220% 3G3AX-RBC4001 2 3 10 100
3.0 3G3MX2-
A4030-V1
2.5% 110% Built-in
Inverter
3G3AX-RBA1202 2 3 12 100
10.0% 215% 3G3AX-RBC4001 2 3 10 100
4.0 3G3MX2-
A4040-V1
3.0% 165% Built-in
Inverter
3G3AX-RBB3001 2 3 30 100
10.0% 165% 3G3AX-RBC4001 2 3 10 100
5.5 3G3MX2-
A4055-V1
3.0% 120% Built-in
Inverter
3G3AX-RBB3001 2 3 30 70
10.0% 120% 3G3AX-RBC4001 2 3 10 70
7.5 3G3MX2-
A4075-V1
3.0% 125% Built-in
Inverter
3G3AX-RBB4001 2 3 20 70
10.0% 125% 3G3AX-RBC6001 2 3 10 70
11 3G3MX2-
A4110-V1
3.0% 85% Built-in
Inverter
3G3AX-RBB4001 2 3 20 70
10.0% 85% 3G3AX-RBC6001 2 3 10 70
10.0% 120% 3G3AX-
RBU41
*3
1 3G3AX-RBC4001 4 15 10 34
15 3G3MX2-
A4150-V1
3.0% 125% Built-in
Inverter
3G3AX-RBB4001 4 5 20 35
10.0% 125% 3G3AX-RBC6001 4 5 10 35

*1 %ED shows the ratio that can be used for braking (deceleration time) among operating time of one task period.
*2 Approximate breaking torque is shown in % of rating torque of the motor (100%).
*3 Please remove the built-in resistor.

Name Specifications of Inverter Model
Voltage class CT: Heavy load VT: Light load
Radio Noise Filter 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-ZCL2
0.2 kW 0.4 kW
0.4 kW 0.75 kW
0.75 kW 1.1 kW
1.5 kW 2.2 kW
2.2 kW 3.0 kW
3.7 kW 5.5 kW 3G3AX-ZCL1 (3G3AX-ZCL2)
5.5 kW 7.5 kW
7.5 kW 11 kW 3G3AX-ZCL1
11 kW 15 kW
15 kW 18.5 kW
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-ZCL2
0.2 kW 0.4 kW
0.4 kW 0.55 kW
0.75 kW 1.1 kW
1.5 kW 2.2 kW
2.2 kW 3.0 kW
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-ZCL2 (3G3AX-ZCL1)
0.75 kW 1.5 kW
1.5 kW 2.2 kW
2.2 kW 3.0 kW
3.0 kW 4.0 kW
4.0 kW 5.5 kW
5.5 kW 7.5 kW
7.5 kW 11 kW 3G3AX-ZCL1
11 kW 15 kW
15 kW 18.5 kW
Input Noise Filter 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-NFI21
0.2 kW 0.4 kW
0.4 kW 0.75 kW
0.75 kW 1.1 kW 3G3AX-NFI22
1.5 kW 2.2 kW 3G3AX-NFI23
2.2 kW 3.0 kW
3.7 kW 5.5 kW 3G3AX-NFI24
5.5 kW 7.5 kW 3G3AX-NFI25
7.5 kW 11 kW 3G3AX-NFI26
11 kW 15 kW 3G3AX-NFI27
15 kW 18.5 kW 3G3AX-NFI28
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-NFI21
0.2 kW 0.4 kW
0.4 kW 0.55 kW 3G3AX-NFI22
0.75 kW 1.1 kW 3G3AX-NFI23
1.5 kW 2.2 kW 3G3AX-NFI23 *
2.2 kW 3.0 kW 3G3AX-NFI24
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-NFI41
0.75 kW 1.5 kW
1.5 kW 2.2 kW
2.2 kW 3.0 kW 3G3AX-NFI42
3.0 kW 4.0 kW
4.0 kW 5.5 kW 3G3AX-NFI43
5.5 kW 7.5 kW
7.5 kW 11 kW 3G3AX-NFI44
11 kW 15 kW 3G3AX-NFI45
15 kW 18.5 kW 3G3AX-NFI46
Output Noise Filter 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-NFO01
0.2 kW 0.4 kW
0.4 kW 0.75 kW
0.75 kW 1.1 kW 3G3AX-NFO02
1.5 kW 2.2 kW
2.2 kW 3.0 kW 3G3AX-NFO03
3.7 kW 5.5 kW
5.5 kW 7.5 kW 3G3AX-NFO04
7.5 kW 11 kW
11 kW 15 kW 3G3AX-NFO05
15 kW 18.5 kW 3G3AX-NFO06
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-NFO01
0.2 kW 0.4 kW
0.4 kW 0.55 kW 3G3AX-NFO02
0.75 kW 1.1 kW
1.5 kW 2.2 kW 3G3AX-NFO03
2.2 kW 3.0 kW
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-NFO01
0.75 kW 1.5 kW
1.5 kW 2.2 kW 3G3AX-NFO02
2.2 kW 3.0 kW
3.0 kW 4.0 kW
4.0 kW 5.5 kW 3G3AX-NFO03
5.5 kW 7.5 kW
7.5 kW 11 kW
11 kW 15 kW 3G3AX-NFO04
15 kW 18.5 kW
DC Reactor 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-DL2002
0.2 kW 0.4 kW 3G3AX-DL2004
0.4 kW 0.75 kW 3G3AX-DL2007
0.75 kW 1.1 kW 3G3AX-DL2015
1.5 kW 2.2 kW 3G3AX-DL2022
2.2 kW 3.0 kW 3G3AX-DL2037
3.7 kW 5.5 kW 3G3AX-DL2055
5.5 kW 7.5 kW 3G3AX-DL2075
7.5 kW 11 kW 3G3AX-DL2110
11 kW 15 kW 3G3AX-DL2150
15 kW 18.5 kW 3G3AX-DL2220
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-DL2002
0.2 kW 0.4 kW 3G3AX-DL2004
0.4 kW 0.55 kW 3G3AX-DL2007
0.75 kW 1.1 kW 3G3AX-DL2015
1.5 kW 2.2 kW 3G3AX-DL2022
2.2 kW 3.0 kW 3G3AX-DL2037
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-DL4007
0.75 kW 1.5 kW 3G3AX-DL4015 *
1.5 kW 2.2 kW 3G3AX-DL4022
2.2 kW 3.0 kW 3G3AX-DL4037
3.0 kW 4.0 kW
4.0 kW 5.5 kW 3G3AX-DL4055
5.5 kW 7.5 kW 3G3AX-DL4075 *
7.5 kW 11 kW 3G3AX-DL4110 *
11 kW 15 kW 3G3AX-DL4150
15 kW 18.5 kW 3G3AX-DL4220
AC Reactor 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-AL2025
0.2 kW 0.4 kW
0.4 kW 0.75 kW
0.75 kW 1.1 kW
1.5 kW 2.2 kW 3G3AX-AL2055
2.2 kW 3.0 kW
3.7 kW 5.5 kW 3G3AX-AL2110
5.5 kW 7.5 kW 3G3AX-AL2110 *
7.5 kW 11 kW 3G3AX-AL2220
11 kW 15 kW 3G3AX-AL2220 *
15 kW 18.5 kW 3G3AX-AL2330
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-AL2025
0.2 kW 0.4 kW
0.4 kW 0.55 kW
0.75 kW 1.1 kW
1.5 kW 2.2 kW 3G3AX-AL2055 *
2.2 kW 3.0 kW 3G3AX-AL2110
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-AL4025
0.75 kW 1.5 kW
1.5 kW 2.2 kW 3G3AX-AL4055
2.2 kW 3.0 kW
3.0 kW 4.0 kW
4.0 kW 5.5 kW 3G3AX-AL4110
5.5 kW 7.5 kW 3G3AX-AL4110 *
7.5 kW 11 kW 3G3AX-AL4220
11 kW 15 kW 3G3AX-AL4220 *
15 kW 18.5 kW 3G3AX-AL4330

* Only the CT rating is supported.
Note: When using the Inverter for light load rating, select the model with one size larger capacity (rated current).

Name Cable length (m) Model
Digital Operator - 3G3AX-OP01
Connection cable 1 m 3G3AX-OPCN1
3 m 3G3AX-OPCN3

Recommended EtherCAT Communications Cables

Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.

Cabel with Connectors

Item Appearance Recommended
manufacturer
Cable
length
(m)
Model
Cable with Connectors on Both Ends
(RJ45/RJ45)
Standard RJ45 plugs type *1
Wire Gauge and Number of Pairs:
AWG26, 4-pair Cable
Cable Sheath material: LSZH *2
Cable color: Yellow *3
3164_lu_8_1 OMRON 0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
Cable with Connectors on Both Ends
(RJ45/RJ45)
Rugged RJ45 plugs type *1
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Light blue
3164_lu_8_2 OMRON 0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K
Cable with Connectors on Both Ends
(M12 Straight/M12 Straight)
Shield Strengthening Connector cable *4
M12/Smartclick Connectors
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Black
3164_lu_8_3 OMRON 0.5 XS5W-T421-BM2-SS
1 XS5W-T421-CM2-SS
2 XS5W-T421-DM2-SS
3 XS5W-T421-EM2-SS
5 XS5W-T421-GM2-SS
10 XS5W-T421-JM2-SS
Cable with Connectors on Both Ends
(M12 Straight/RJ45)
Shield Strengthening Connector cable *4
M12/Smartclick Connectors
Rugged RJ45 plugs type
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Black
3164_lu_8_4 OMRON 0.5 XS5W-T421-BMC-SS
1 XS5W-T421-CMC-SS
2 XS5W-T421-DMC-SS
3 XS5W-T421-EMC-SS
5 XS5W-T421-GMC-SS
10 XS5W-T421-JMC-SS

*1 Standard type cables length 0.2, 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15 and 20 m are available.
      Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15 m are available.
      For details, refer to Cat.No.G019.
*2 The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
      Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3 Cables colors are available in blue, yellow, or Green.
*4 For details, contact your OMRON representative.

Cables/Connectors

Wire Gauge and Number of Pairs: AWG24, 4-pair Cable

Item Appearance Recommended manufacturer Model
Cables --- Hitachi Metals, Ltd. NETSTAR-C5E SAB 0.5 x 4P *
--- Kuramo Electric Co. KETH-SB *
--- SWCC Showa Cable Systems Co. FAE-5004 *
RJ45 Connectors --- Panduit Corporation MPS588-C *

* We recommend you to use above cable and connector together.

Wire Gauge and Number of Pairs: AWG22, 2-pair Cable

Item Appearance Recommended manufacturer Model
Cables --- Kuramo Electric Co. KETH-PSB-OMR *
--- JMACS Japan Co., Ltd. PNET/B *
RJ45 Assembly Connector
3164_lu_10_1
OMRON XS6G-T421-1 *

* We recommend you to use above cable and connector together.

Software

How to Select Required Support Software for Your Controller

The required Support Software depends on the Controller to connect. Please check the following table when purchasing the Support Software.

Item Omron PLC System Omron Machine Automation Controller System
Controller CS, CJ, CP, and other series NJ/NX-series
Inverter Inverter MX2-series V1 type
Inverter MX2-series V1 type with EtherCAT
Communication Unit
(Applicable to the CJ series only.)
Inverter MX2-series V1 type with CompoNet
Communication Unit
Inverter MX2-series V1 type with DeviceNet
Communication Unit
Inverter MX2-series V1 type
Inverter MX2-series V1 type with EtherCAT Communication
Unit
Inverter MX2-series V1 type with CompoNet Communication
Unit
Inverter MX2-series V1 type with DeviceNet Communication
Unit
Software FA Integrated Tool Package CX-One Automation Software Sysmac Studio

FA Integrated Tool Package CX-One

Product
name
Specifications Model Stand-
ards
Number of
licenses
Media
FA Integrated
Tool Package
CX-One
Ver.4.[]
The CX-One is a comprehensive software
package that integrates Support Software
for OMRON PLCs and components.

CX-One runs on following OS.
Windows XP (Service Pack 3 or higher,
32-bit version)/
Windows Vista (32-bit/64-bit version)/
Windows 7 (32-bit/64-bit version)/
Windows 8 (32-bit/64-bit version)/
Windows 8.1 (32-bit/64-bit version)/
Windows 10 (32-bit/64-bit version)

CX-One Version.4.[] includes CX-Drive Ver.2.[].
For details, refer to the CX-One catalog
(Cat. No. R134)
1 license
*
DVD CXONE-AL01D-V4 -

* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

Automation Software Sysmac Studio

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.

Product
name
Specifications Model Stand-
ards
Number of
licenses
Media
Sysmac
Studio
Standard
Edition
Ver.1.[][]
The Sysmac Studio is the software that provides
an integrated environment for setting, programming,
debugging and maintenance of machine automation
controllers including the NJ/NX-series CPU Units,
NY-series Industrial PC,EtherCAT Slave, and the HMI.

Sysmac Studio runs on the following OS.
Windows 7(32-bit/64-bit version)/
Windows 8 (32-bit/64-bitversion)/
Windows 8.1 (32-bit/64-bit version)/
Windows 10 (32-bit/64-bit version)

The Sysmac Studio Standard Edition DVD includes
Support Software to set up EtherNet/IP Units,
DeviceNet slaves, Serial Communications Units, and
Support Software for creating screens on HMIs (CX-
Designer).
For details, refer to the Sysmac Integrated Catalogue
(P072).
-
(Media only)
DVD SYSMAC-SE200D -
1 license
*
--- SYSMAC-SE201L -

* Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).
