E5AC-800

Digital Temperature Controller (Simple Type) (96 × 96 mm)

E5AC-800

96 × 96 mm. Large White PV Display That's Easier to Read. Easy to Use, from Model Selection to Setup and Operation. A Complete Range of I/O Capacities, Functions, and Performance. Handles More Applications.

The New E5CC, E5CC-U, E5EC, E5AC, and E5DC Next-generation Digital Controllers with Advanced Designs and Easy Operation

White PV display and new LCD with greatly improved visibility.*
* 100 times higher contrast ratio than the E5[]Z.

E5AC-800 Features 1

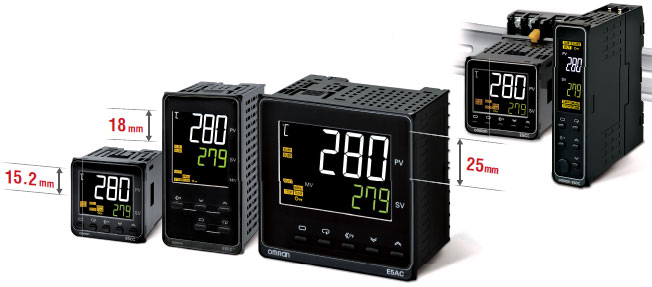

A compact body with large display characters for easy reading even from a distance.
This helps to reduce human error.

E5AC-800 Features 3

The white LCD display is easy to read in the subdued lighting conditions.

E5AC-800 Features 4

The display remains easy to read even from wide viewing angles.

Save space!

E5AC-800 Features 5

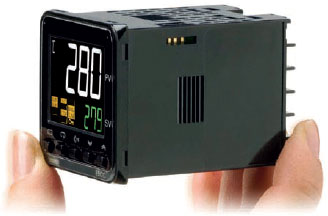

The compact and space-saving design of the new E5CC/E5EC/E5AC controller generation requires less space behind the panel (60 mm), allowing quick snap-mounting and easy installation even under very cramped conditions.*
* Excluding E5CC-U and E5DC

Save Time!

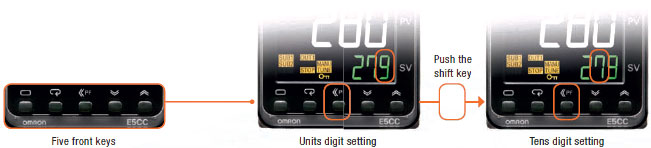

The E5CC/E5CC-U/E5EC/E5AC/E5DC series is extremely easy to operate using the instrument’s five front keys.

E5AC-800 Features 6

Smart!

With key features like simplicity in operation, Omron’s patented PID control, and 50ms sampling period, the E5CC/E5CC-U/E5EC/E5AC/E5DC sets a new standard in fast and precise temperature regulation.

Sampling period:50ms

Sampling Rate Sufficient to Handle Rapid Increases in Temperature

E5AC-800 Features 8

Independent heating/cooling PID

The heating and cooling PID can each be set individually. Also, autotuning (AT) will automatically set the PID constants.

E5AC-800 Features 9

Setting change protection

You can disable key operations to help prevent incorrect setting change.

E5AC-800 Features 10

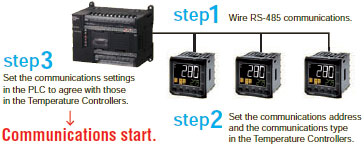

Easy connections to a PLC with programless communications.

E5AC-800 Features 11

Advantages

・ The amount of work to set up the system is greatly reduced.
・ PLC programming and memory are not required for communications.
・ Communications even with multiple Temperature Controllers are automatically executed by the Temperature Controllers.
・ Interface converters are not required, which reduces costs.
・ Number of connected Digital Temperature Controllers: 32 max. (Up to 16 for the FX Series)

E5AC-800 Features 12

More Convenient Operations

The parameters can be copied from the master Temperature Controller to slave Temperature Controllers.
Master Temperature Controller can share RUN/STOP operations and set points with slave Temperature Controllers.
Slope and offsets can be set for the set point.
Note: A Temperature Controller with version 1.1 or higher is required.
          A Temperature Controller with version 2.1 or higher is required for the FX Series.
