E5CC-800, E5CC-U-800

Digital Temperature Controller (Simple Type) (48 × 48 mm)

E5CC-800, E5CC-U-800

48 × 48 mm. Large White PV Display That's Easier to Read. Easy to Use, from Model Selection to Setup and Operation. A Complete Range of I/O Capacities, Functions, and Performance. Handles More Applications.

Controllers

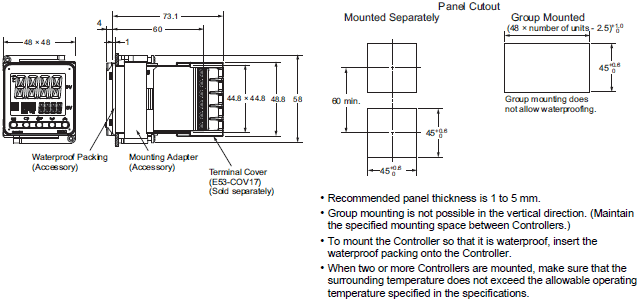

E5CC-800

E5CC-800, E5CC-U-800 Dimensions 2

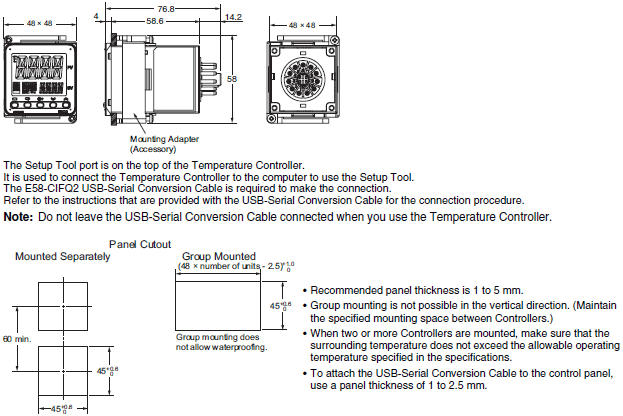

E5CC-U-800

E5CC-800, E5CC-U-800 Dimensions 3

Accessories (Order Separately)

Terminal Covers
E53-COV17

E5CC-800, E5CC-U-800 Dimensions 5

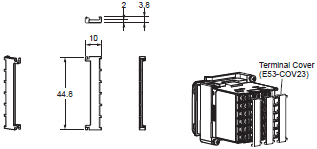

Terminal Covers
E53-COV23 (Three Covers provided.)

E5CC-800, E5CC-U-800 Dimensions 6

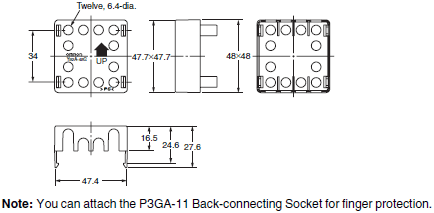

Terminal Cover (for the P3GA-11 Back-connecting Socket)
Y92A-48G

E5CC-800, E5CC-U-800 Dimensions 7

Waterproof Packing
Y92S-P8 (for DIN 48 × 48)
(Provided with the Controller.)

E5CC-800, E5CC-U-800 Dimensions 8

The waterproof packing is provided only with the E5CC-800.
It is not included with the E5CC-U-800.
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site.
Consider three years a rough standard.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
The E5CC-U cannot be waterproofed even if the Waterproof Packing is attached.

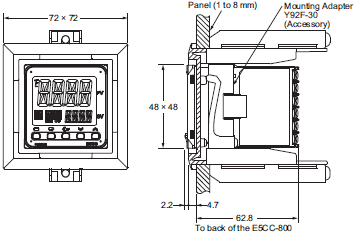

Adapter

Y92F-45

Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B[].
          2. Only black is available.

E5CC-800, E5CC-U-800 Dimensions 10

Mounted to E5CC-800

E5CC-800, E5CC-U-800 Dimensions 11

DIN Track Mounting Adapter

Y92F-52

E5CC-800, E5CC-U-800 Dimensions 13

Note: 1. This Adapter cannot be used together with the Terminal Cover.
          2. This Adapter cannot be used with the E5CC-B.

This Adapter is used to mount the E5CC-800 to a DIN Track.
If you use the Adapter, there is no need for a plate to mount in the panel or to drill mounting holes in the panel.

Mounted to E5CC-800

E5CC-800, E5CC-U-800 Dimensions 14

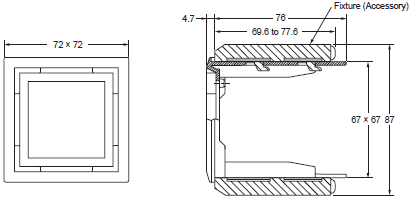

Watertight Cover
Y92A-48N

E5CC-800, E5CC-U-800 Dimensions 15

Mounting Adapter
Y92F-49
(Provided with the Controller.)

E5CC-800, E5CC-U-800 Dimensions 16

The Mounting Adapter is provided with the Temperature Controller.
Order this Adapter separately if it becomes lost or damaged.

Protective Cover
Y92A-48D

E5CC-800, E5CC-U-800 Dimensions 17

Note: This Protective Cover cannot be used if the Waterproof Packing is installed.

This Protective Cover is soft type.
It is able to operate the controller with using this cover.

Protective Cover
Y92A-48H

E5CC-800, E5CC-U-800 Dimensions 18

This Protective Cover is hard type.
Please use it for the mis-operation prevention etc.

E5CC-U Wiring Socket

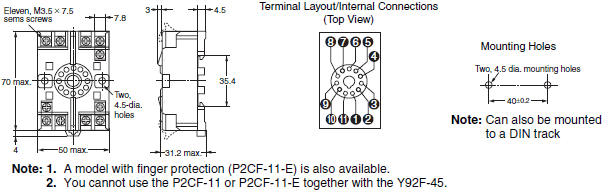

Front-connecting Socket
P2CF-11

E5CC-800, E5CC-U-800 Dimensions 20

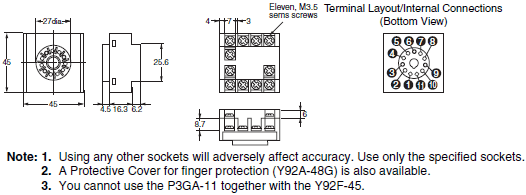

Back-connecting Socket
P3GA-11

E5CC-800, E5CC-U-800 Dimensions 21

Current Transformers

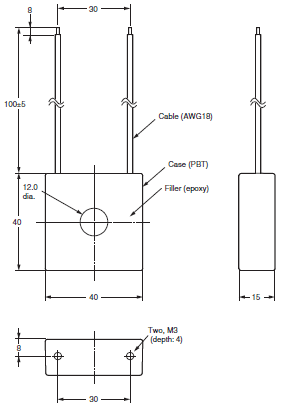

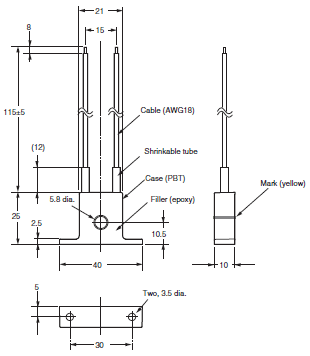

E54-CT1

E5CC-800, E5CC-U-800 Dimensions 23

E54-CT3

E5CC-800, E5CC-U-800 Dimensions 24

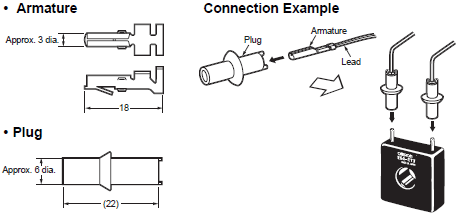

E54-CT3 Accessories

E5CC-800, E5CC-U-800 Dimensions 25

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
E54-CT1

E5CC-800, E5CC-U-800 Dimensions 26

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
E54-CT3

E5CC-800, E5CC-U-800 Dimensions 27

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω
