Digital Temperature Controllers

E5[]Z

1/16, 1/8, and 1/4 DIN Temperature Controllers Join the Best-selling E5[]Z Series

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

E5CZ
Terminal Models

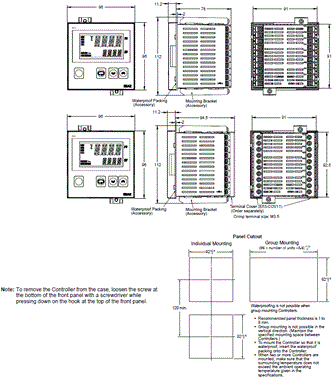

E5[]Z Dimensions 1

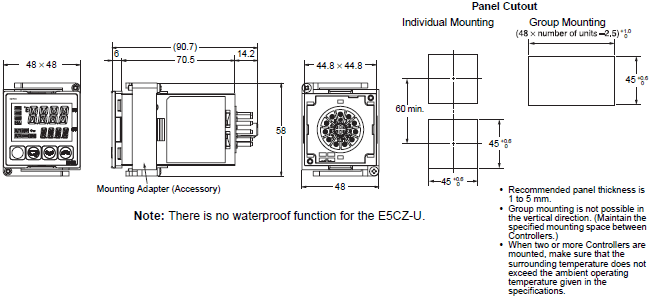

E5CZ-U
Plug-in Models

E5[]Z Dimensions 2

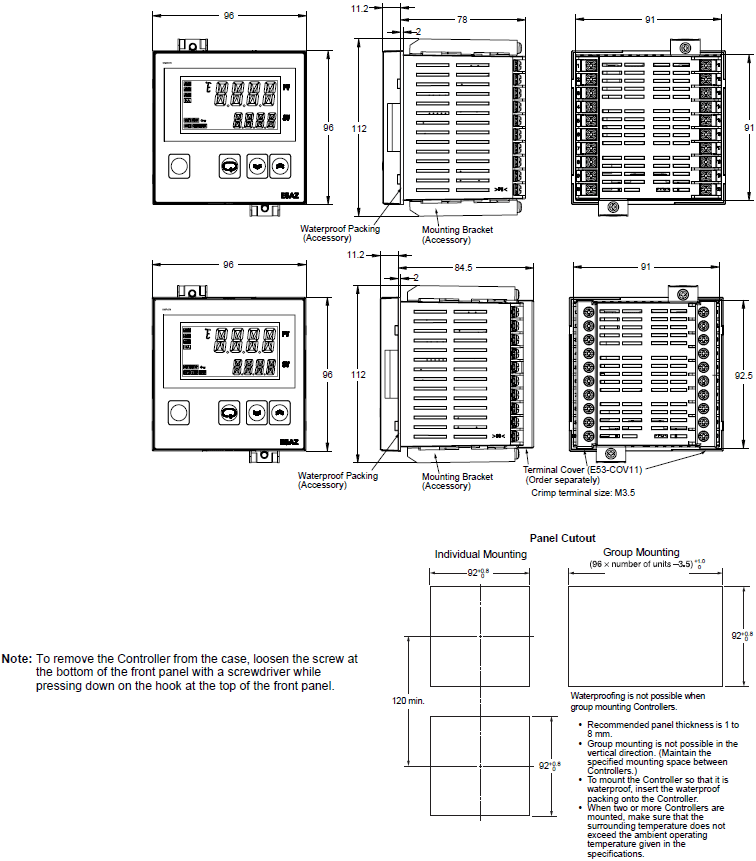

E5AZ

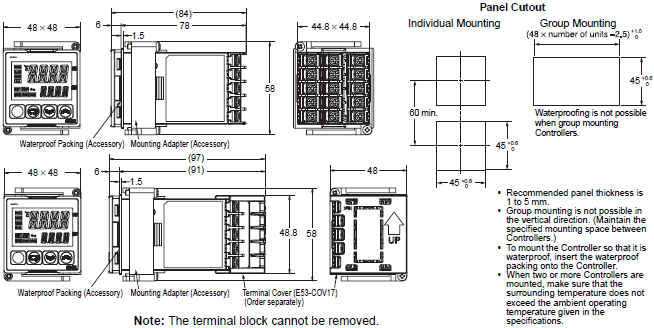

E5[]Z Dimensions 3

E5EZ
Terminal Models

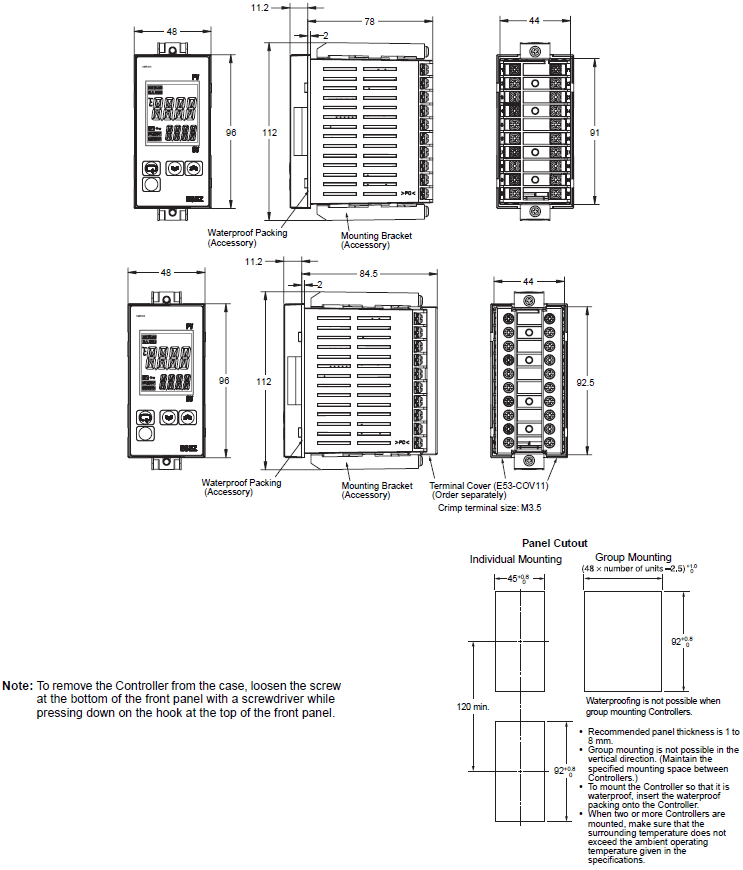

E5[]Z Dimensions 4

E5EZ-PRR

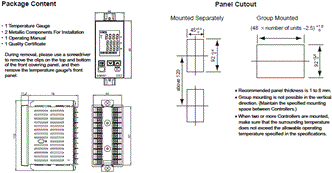

E5[]Z Dimensions 5

Accessories

USB-Serial Conversion Cable (Order Separately)

E58-CIFQ1

E5[]Z Dimensions 8

Terminal Cover (Order Separately)

E53-COV17

E5[]Z Dimensions 10

E53-COV11 (Two Covers provided.)

E5[]Z Dimensions 11

E53-COV18 (Available only for E5EZ-PRR)

E5[]Z Dimensions 12

Waterproof Packing

Y92S-29 (for DIN 48 × 48)

E5[]Z Dimensions 14

Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 (indoor use) degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment.
Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66 (indoor use). The time for periodic replacement depends on the operating environment.
Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
Note: There is no waterproof function for the E5CZ-U.

Y92S-P4 (for DIN 96 × 96)

E5[]Z Dimensions 16

Y92S-P5 (for DIN 48 × 96)

E5[]Z Dimensions 17

Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 (indoor use) degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66 (indoor use). The time for periodic replacement depends on the operating environment.
Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.

Unit Labels (Order Separately)

Y92S-L1 Type

E5[]Z Dimensions 20

Current Transformers (Order Separately)

E54-CT1

E5[]Z Dimensions 22

E54-CT3

E5[]Z Dimensions 23

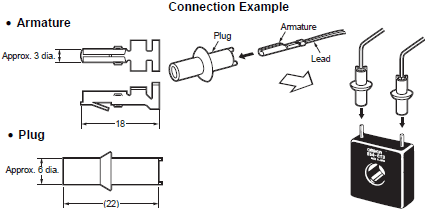

E54-CT3 Accessory

E5[]Z Dimensions 24

Adapter (Order Separately)

Note: 1. Use this Adapter when the panel has already been prepared for the E5B[].
           2. Only black is available.

Y92F-45

E5[]Z Dimensions 26

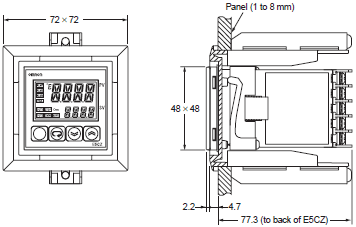

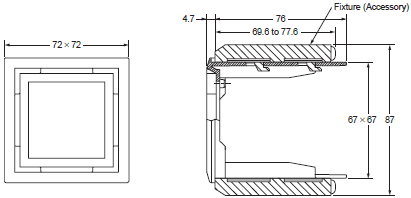

Mounted to E5CZ

E5[]Z Dimensions 27

E5CZ-U Wiring Socket (Order Separately)

Front-connecting Socket

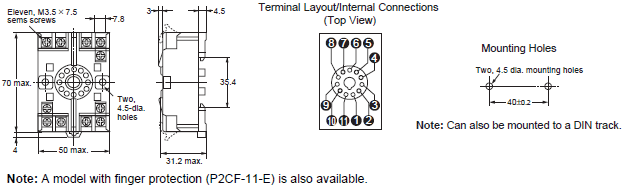

P2CF-11

E5[]Z Dimensions 29

Back-connecting Socket

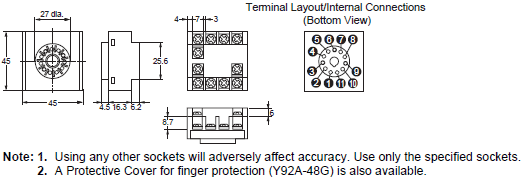

P3GA-11

E5[]Z Dimensions 30
