G3NB

Solid State Relays

G3NB

SSR with output (5 to 90 A) at a reasonable price

Relays

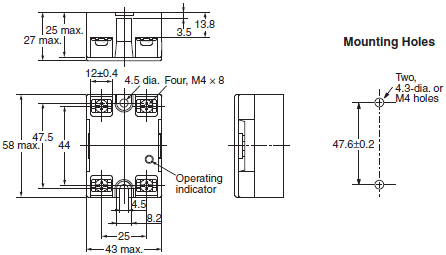

G3NB-205B-1
G3NB-210B-1
G3NB-220B-1

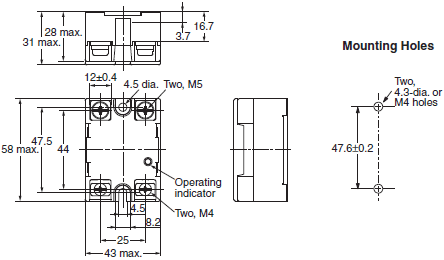

G3NB-225B-1

G3NB Dimensions 2

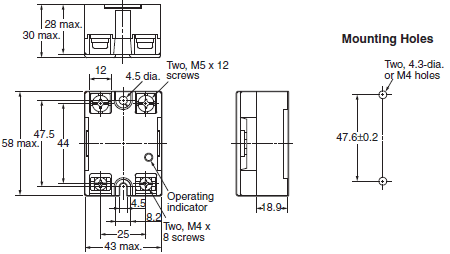

G3NB-240B-1

G3NB Dimensions 3

G3NB-275B-1
G3NB-290B-1

G3NB Dimensions 4

Options (Order Separately)

One-touch Mounting Plate

The One-touch Mounting Plate is used to mount the G3NB to a DIN Track.

R99-12 FOR G3NA

G3NB Dimensions 7

Heat Sinks

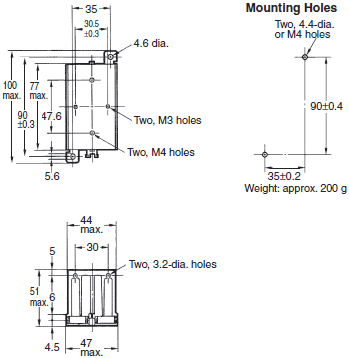

Y92B-N50 Heat Sink (for the G3NB-205B-1, G3NB-210B-1)

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

G3NB Dimensions 9

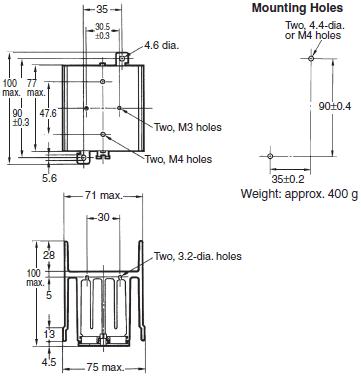

Y92B-N100 Heat Sink (for the G3NB-220B-1)

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

G3NB Dimensions 10

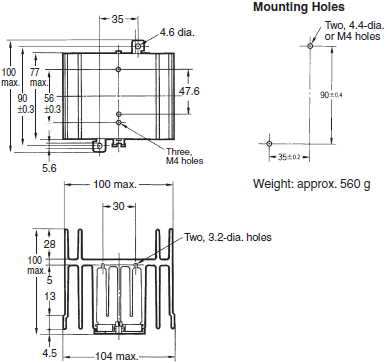

Y92B-N150 Heat Sink (for the G3NB-225B-1, G3NB-240B-1)

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

G3NB Dimensions 11

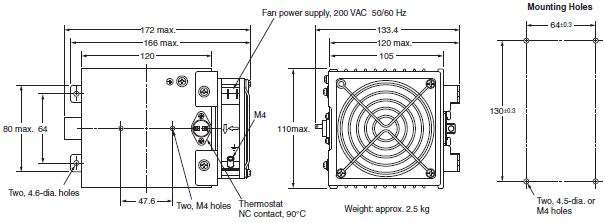

Y92B-P250NF Heat Sink (for the G3NB-275B-1, G3NB-290B-1)

For mounting method, refer to "Precautions for Correct Use".

G3NB Dimensions 12
