E5DC

Digital Temperature Controller (22.5 mm Wide, and DIN Track-mounting Type)

E5DC

The E5DC Mounts to DIN Track and Is Ideal for Connections to HMIs and PLCs. It provides the Same Easy Operation and Advanced Performance as the Rest of the E5[]C Series.

(Unit: mm)

Controllers

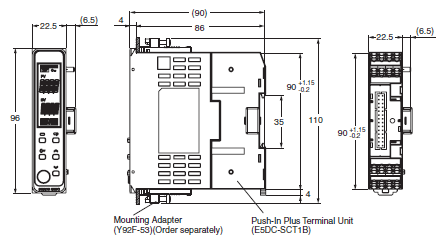

E5DC

E5DC Dimensions 2

Accessories (Order Separately)

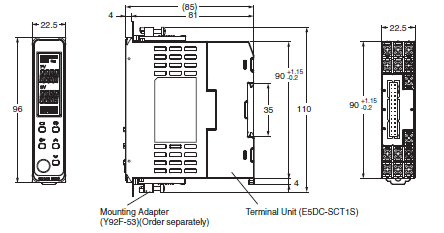

Terminal Unit
E5DC-SCT1S

E5DC Dimensions 4

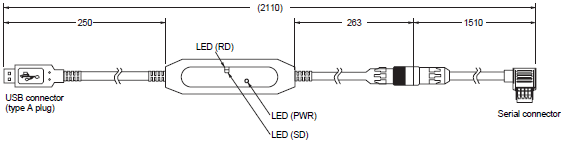

USB-Serial Conversion Cable
E58-CIFQ2

E5DC Dimensions 5

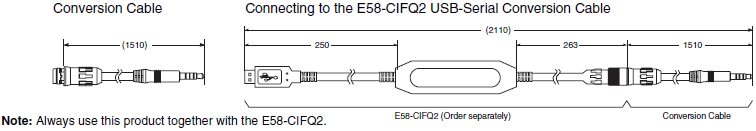

Conversion Cable
E58-CIFQ2-E

E5DC Dimensions 6

Current Transformers

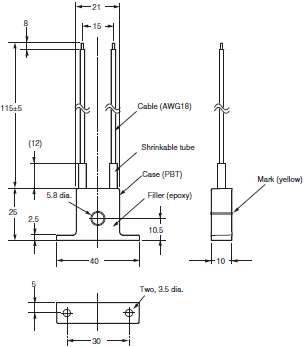

E54-CT1

E5DC Dimensions 8

E54-CT1L

E5DC Dimensions 9

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
E54-CT1 or E54-CT1L

E5DC Dimensions 10

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

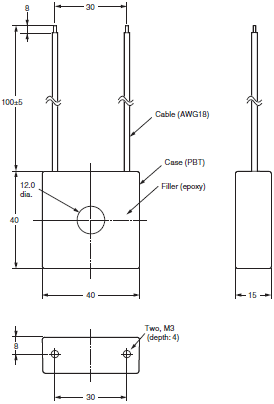

E54-CT3

E5DC Dimensions 11

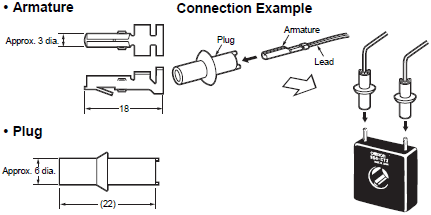

E54-CT3 Accessories

E5DC Dimensions 12

E54-CT3L

E5DC Dimensions 13

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
E54-CT3 or E54-CT3L

E5DC Dimensions 14

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω

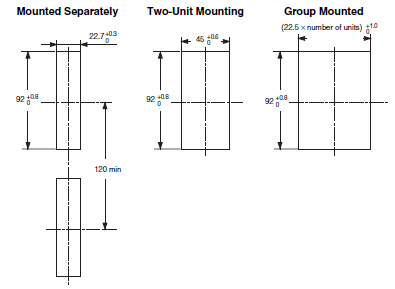

Mounting Adapters
Y92F-53 (Two included.)

E5DC Dimensions 15

This accessory is not included with the product. Order it separately to mount the product to a panel.

Short Bars
Y92S-P11 (Four included.)

E5DC Dimensions 16

Use this product to connect between terminals (for power supplies, communications, etc.) when you use multiple E5DC Controllers.

End Plate
PFP-M

E5DC Dimensions 17

DIN Tracks
PFP-100N
PFP-50N

E5DC Dimensions 18

* Dimensions in parentheses are for the PFP-50N.

Spacer
PFP-S

E5DC Dimensions 19

Unit Labels
Y92S-L2

E5DC Dimensions 20

The Unit Labels for the Digital Panel Meter are used. Use either the °C or °F label from the sheet.

End Cover
Y92F-54 (Two included.)

E5DC Dimensions 21

Use the End Cover when you mount the E5DC to a panel to hide the gap between the Controller and the panel.
