J7MN

Motor Protection Circuit Breaker (MPCB)

J7MN

MPCB system (motor protection CLASS 10)

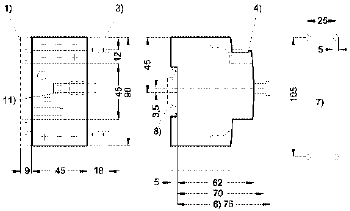

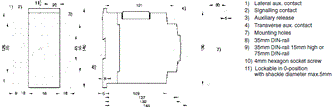

Circuit-breaker J7MN-12

J7MN Dimensions 1

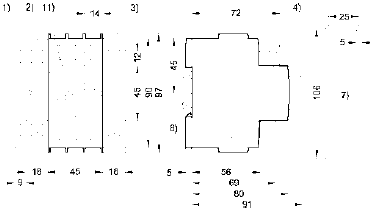

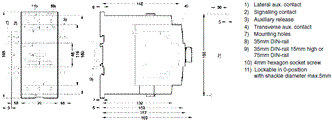

Circuit-breaker J7MN-25

J7MN Dimensions 2

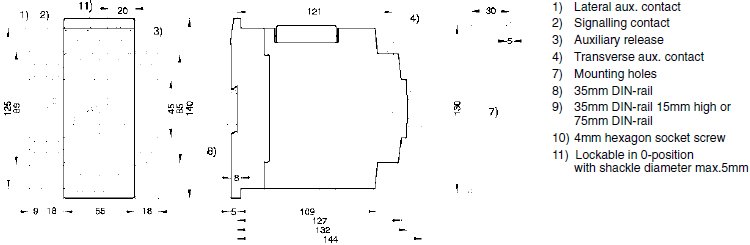

Circuit-breaker J7MN-50

J7MN Dimensions 3

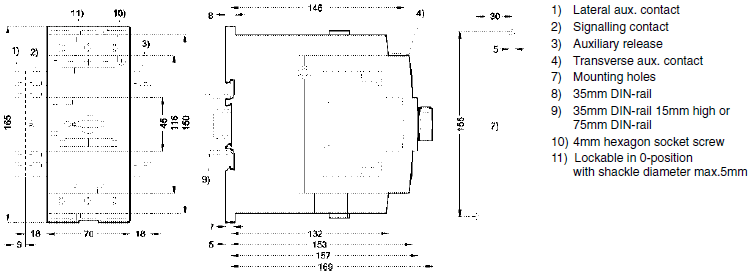

Circuit-breaker J7MN-100

J7MN Dimensions 4

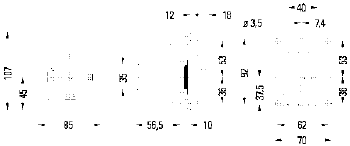

Moulded plastic front plate J74MN-P12

J7MN Dimensions 5

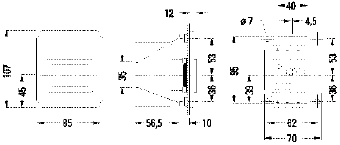

Moulded plastic front plate J74MN-P25

J7MN Dimensions 6

Moulded plastic enclosure J74MN-PF12

J7MN Dimensions 7

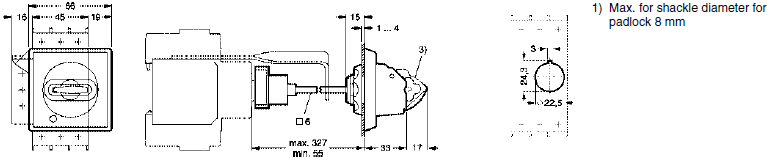

Door-coupling rotary operating mechanism J74MN-DC

J7MN Dimensions 8

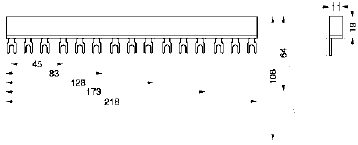

3-phase busbar J74MN-L3-[]/[]
for J7MN-12 and J7MN-25, modular spacing 45 mm

J7MN Dimensions 9

3-phase line-side terminal J74MN-TC12 and J74MN-TC25

J7MN Dimensions 10
