Industrial Automation
VB
Multiple Limit Switch
A New Monoblock Multiple Limit Switch Incorporating a Head Box with a Tough Head and Ensuring High Sealing Performance and a Mechanical Durability of 5,000,000 Operations
Related Contents
Application Solutions
last update: November 12, 2012
(Unit: mm)
Switches
The actual model numbers of each of the above VB models have a figure 2 to 6, which indicate the number of plungers.

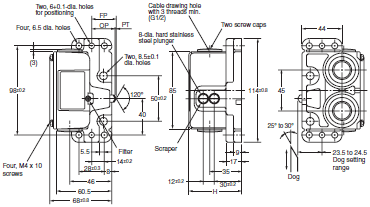

Bevel Plunger
VB-[]111

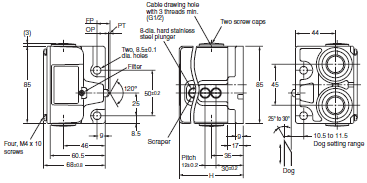

Bevel Plunger
VB-[]141

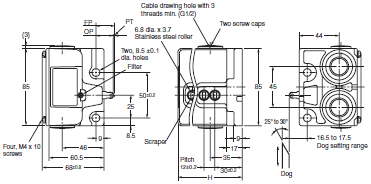

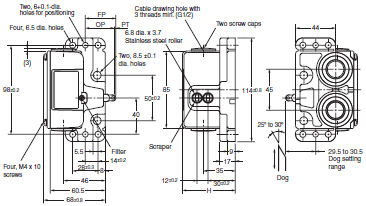

Roller Plunger
VB-[]211
Roller Plunger
VB-[]241
Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

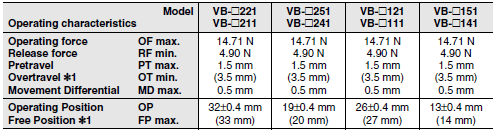

Note: The operating characteristic values apply to a single switch.
*1 The OT and FP values are reference values.
The actual model numbers of each of the above VB models have a figure 2 to 6, which indicate the number of
plungers.
*1 The OT and FP values are reference values.
The actual model numbers of each of the above VB models have a figure 2 to 6, which indicate the number of
plungers.
*2 When five plungers are mounted in series, no outer actuator will be provided.
