Sockets with Push-In Plus technology
last update: May 22, 2023
(Unit: mm)

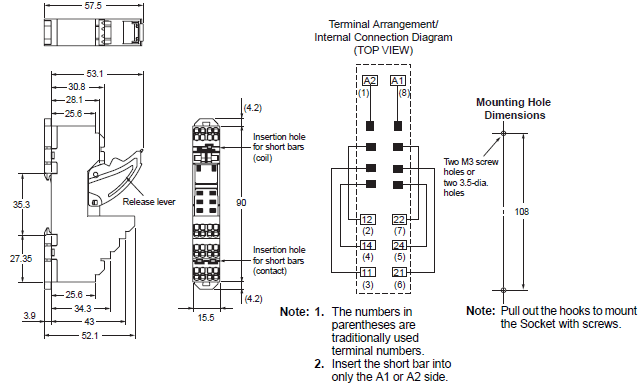

* The PYF-08-PU-L Sockets do not have release levers.

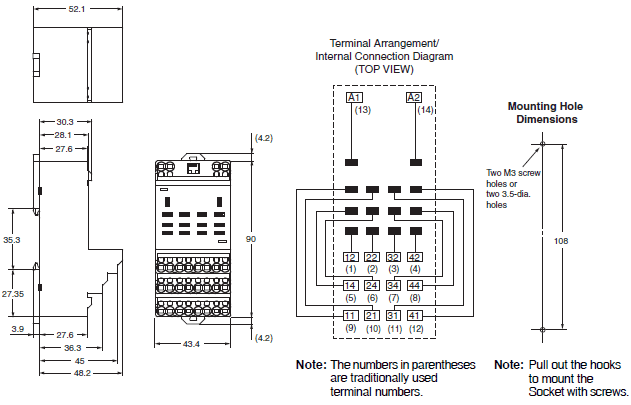

* The PYF-14-PU-L Sockets do not have release levers.

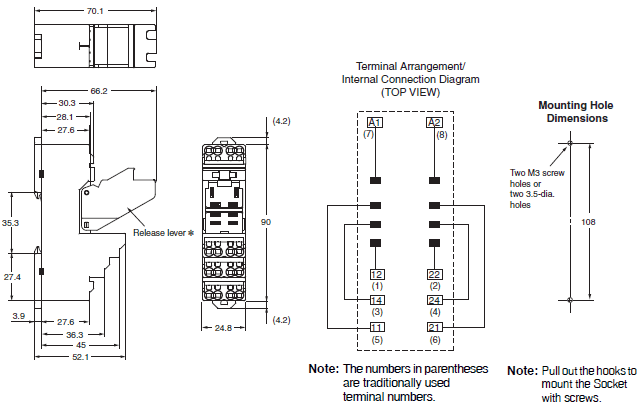

Note: When you apply a minimum of 10 A of current to an LY1 when it is used in combination with the PTF-08-PU(-L), connect each of the following terminal pairs: (1) to (2), (3) to (4), and (5) to (6).
* The PTF-08-PU-L Sockets do not have release levers.
