XS5[]R
Oil-resistant Connectors
![XS5[]R](/Images/l_3547-21-263822-198x198.jpg)
Smartclick Oil-resistant Connectors with Improved Oil Resistance
Related Contents
Application Solutions
- Features
- Lineup
- Specifications
- Dimensions
- Catalog / Manual / CAD / Software
last update: February 1, 2019
Ratings and Specifications
| Rated current | 1 A |
|---|---|
| Rated voltage | 30 VDC |
| Contact resistance (connector) | 40 mΩ max. (20 mV max., 100 mA max.) |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) *1 |
| Dielectric strength (connector) | 1,500 VAC for 1 min (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC 60529) and IP67G (JIS C 0920 Annex 1) *2
Passed OMRON's Oil-resistant Component Evaluation Standards*3 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.) |
| Insertion tolerance | 50 times min. |
| Lock strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Cable holding strength | Tensile: 100 N/15 s |
| Ambient operating temperature range/
Ambient storage temperature range |
-25 to +70°C |
| Ambient humidity range | 20% to 85% |
*1. This value represents the condition when the Connector is shipped from the factory.
*2. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*3. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
The Pre-wired Connector type meets the degree of protection when it is correctly connected with an XS5[]R Oil-resistant Connector.
The degree of protection is not satisfied with the part where there is no XS5FR Oil-resistant Connector connected and cable wires are uncovered.
Materials and Finishes
| Contacts | Phosphor bronze/Gold plating |
|---|---|
| Fixtures | Zinc alloy/Nickel plating |
| Fixtures (Lock) | Stainless steel |
| Pin block | PA resin (UL 94 HB) |
| O-ring | New rubber material combining HNBR and fluororubber |
| Cover | PA resin (UL 94 HB) |
| Cable | Cable with fluororesin sheath: 4-mm dia.
Core wire: 0.2mm2 |

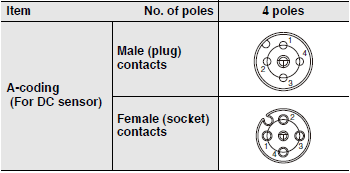

Connector Pinout Diagram (from Mating Side)
![XS5[]R Specifications 4](/Images/3547_sp_321-289909.gif)
