A7PS / A7PH

Thumbwheel Switch

A7PS / A7PH

Dust-tight, Easy-to-Use, Push-operated Switches with Large Display Characters

Swithes

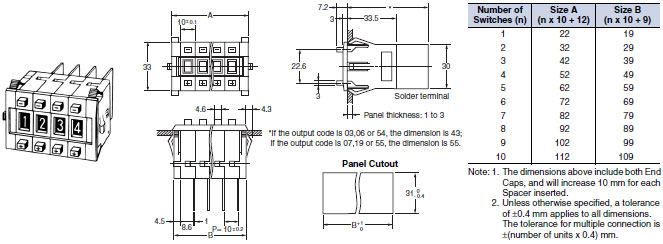

A7PS-2[][](-1)
A7PH-2[][](-1)
Solder Terminal

A7PS / A7PH Dimensions 3 A7PS-2[][](-1)_Dim

Accessories (Order Separately)

End Caps for Push-operated Switches

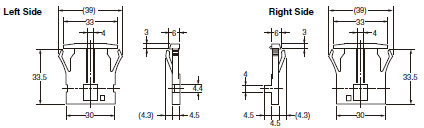

A7P-M(-1) Snap-in Panel Mounting

A7PS / A7PH Dimensions 6 A7P-M(-1)_Dim

Spacers for Push-operated Switches
A7P-P[](-1) Snap-in Panel Mounting

A7PS / A7PH Dimensions 8 A7P-P[](-1)_Dim

Note:The [] in the Spacer model number stands for a letter in the range A to U. (Refer to the table under the explanation about Spacers on Lineup.)

Connectors

Note:(These devices allow Switches to be quickly removed for maintenance and inspection of connectivity, and quickly re-installed.)

NRT-C Solder Terminals

A7PS / A7PH Dimensions 12 A7PS/A7PH_Connectors_Dim1

NRT-CN Solder Terminals

A7PS / A7PH Dimensions 13 A7PS/A7PH_Connectors_Dim2

NRT-CP PCB Terminals

A7PS / A7PH Dimensions 15 A7PS/A7PH_Connectors_Dim3

Note:Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ± 0.4 mm.

Inserting Connectors

Insert Connectors with the "UP" arrow pointing up.

A7PS / A7PH Dimensions 19 A7PS/A7PH_Inserting Connectors
