TM Series

Collaborative Robots

TM Series

Collaborative robot for assembly, packaging, inspection and logistics

(Unit: mm)

TM5

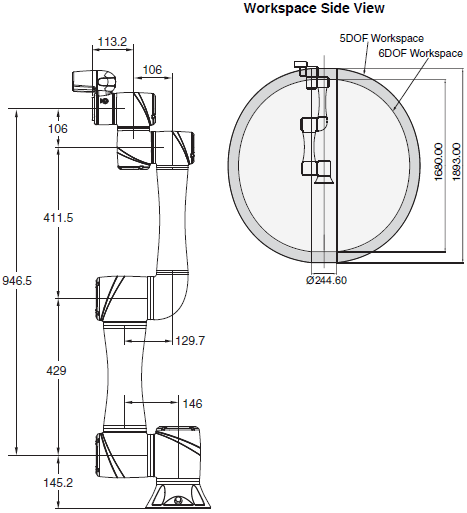

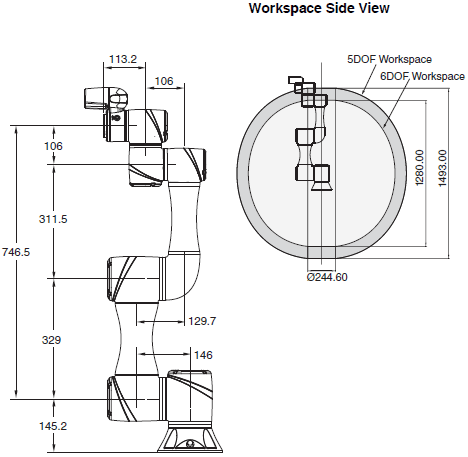

TM5-700

TM Series Dimensions 2

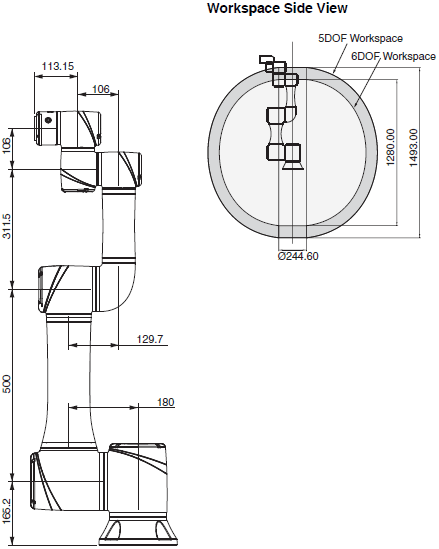

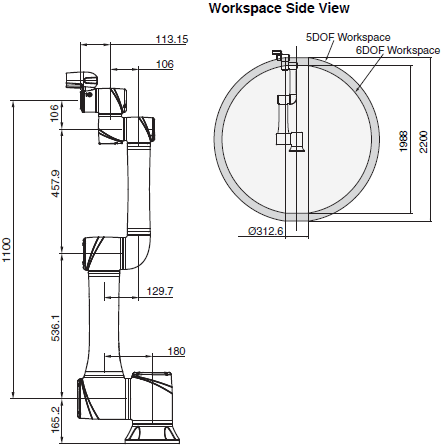

TM5-900

TM Series Dimensions 3

Footprint

TM Series Dimensions 4

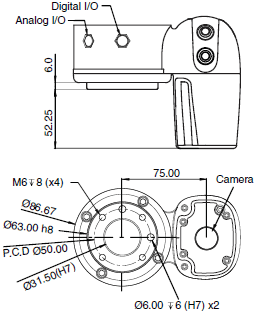

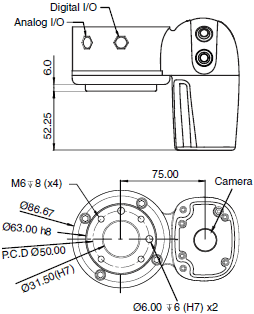

Flange

TM Series Dimensions 5

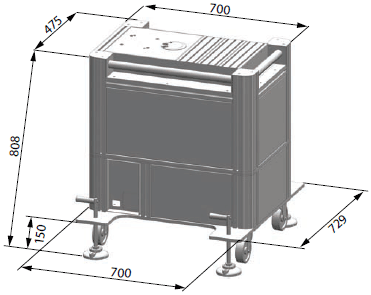

Control Box

TM Series Dimensions 6

TM12/14

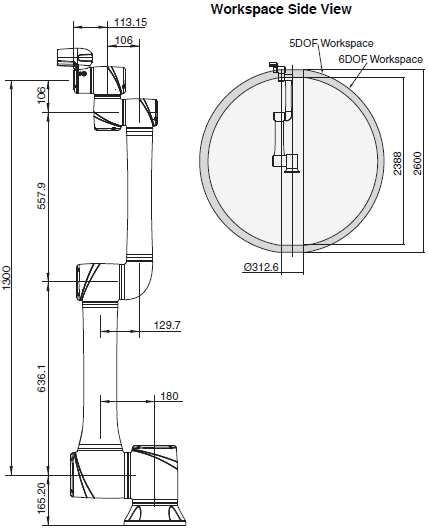

TM12

TM Series Dimensions 8

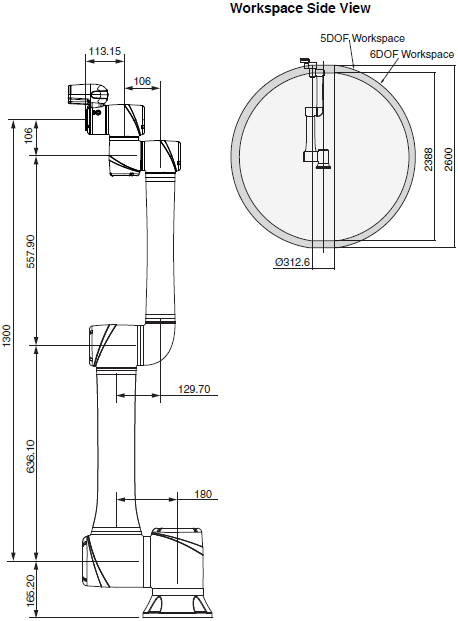

TM14

TM Series Dimensions 9

Footprint

TM Series Dimensions 10

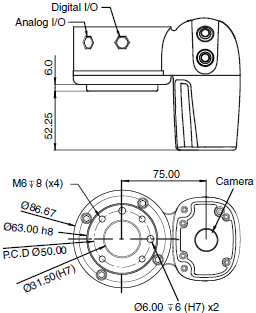

Flange

TM Series Dimensions 11

Control Box

TM Series Dimensions 12
