E2S

Super-compact Proximity Sensor

E2S

Advanced Performance and Wide Range of Selections in a Supercompact Size

Note:Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

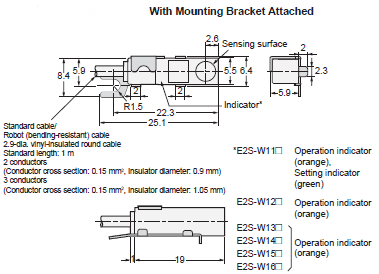

E2S-W1[]

E2S Dimensions 4 E2S-W1[]_Dim

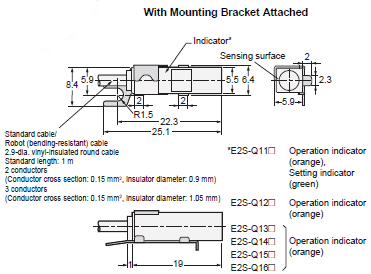

E2S-Q1[]

E2S Dimensions 6 E2S-Q1[]_Dim

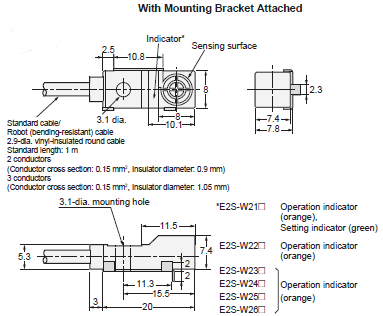

E2S-W2[]

E2S Dimensions 8 E2S-W2[]_Dim

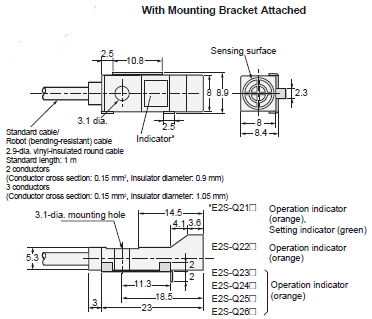

E2S-Q2[]

E2S Dimensions 10 E2S-Q2[]_Dim

Accessories (Order Separately)

Mounting Bracket

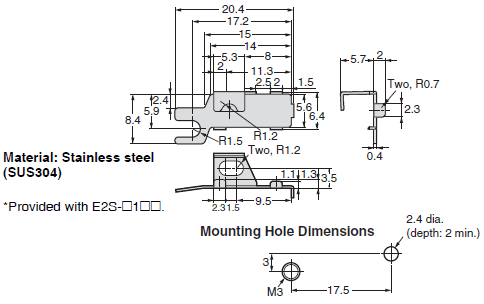

Y92E-C1R6

Mounting Bracket

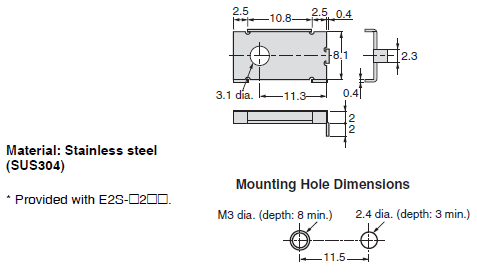

Y92E-C2R5

E2S Dimensions 14 Y92E-C1R6_Dim

Note:Material: Stainless steel (SUS304)

Note:*Provided with E2S-[]1[][].

E2S Dimensions 15 Y92E-C2R5_Dim

Note:Material: Stainless steel (SUS304)

Note:Provided with E2S-[]2[][].



Mounting Bracket

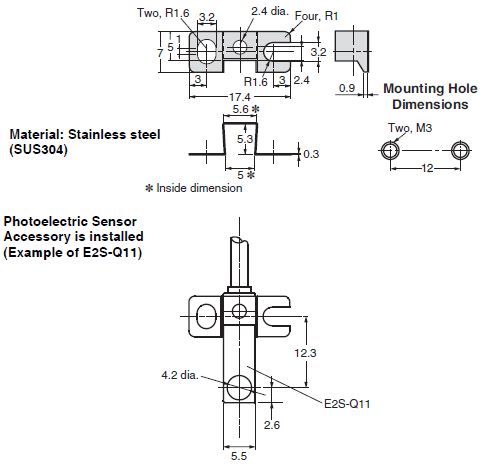

Y92E-D1R6

E2S Dimensions 17 Y92E-D1R6_Dim

Mounting Bracket

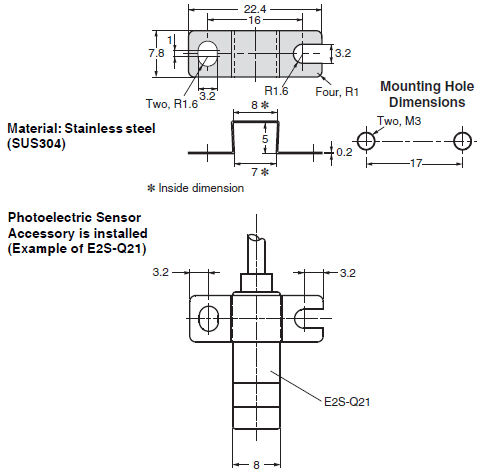

Y92E-D2R5

E2S Dimensions 18 Y92E-D2R5_Dim

Note:Material: Stainless steel (SUS304)

Note:Inside dimension

Note:Material: Stainless steel (SUS304)

Note:Inside dimension
