Y92[]

Accessories

Y92[]

Mounting Brackets, Mounting Sleeves and Protective Covers

(Unit: mm)

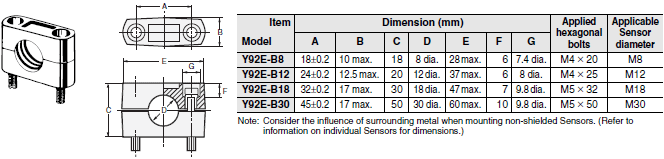

Mounting Brackets

Y92[] Dimensions 1

Material:
Mounting Bracket: Polyacetal
Hexagonal bolt and spring washer: Nickel-plated iron

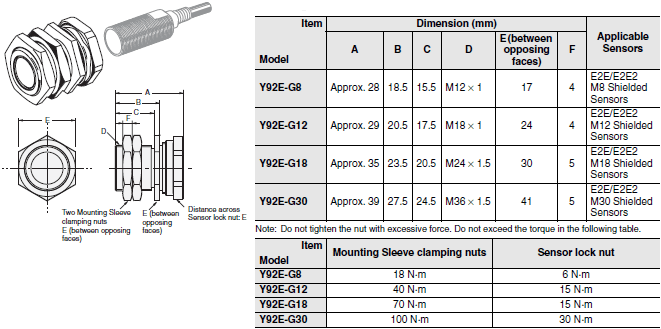

Mounting Sleeves (Quick Mounting)

Y92[] Dimensions 2

Material:
Bracket: Nickel-plated iron
Nut: Nickel-plated brass
Mounting Sleeve: Polyacetal

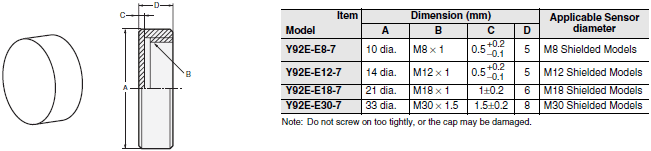

Protective Covers

Y92[] Dimensions 3

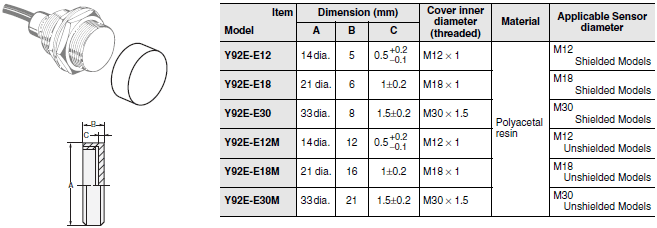

Sputter Protective Covers (Threaded on Inside of Cover)

Y92[] Dimensions 4

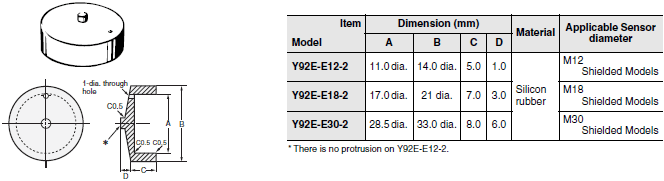

Sputter Protective Covers (Not Threaded on Inside of Cover)

Y92[] Dimensions 5

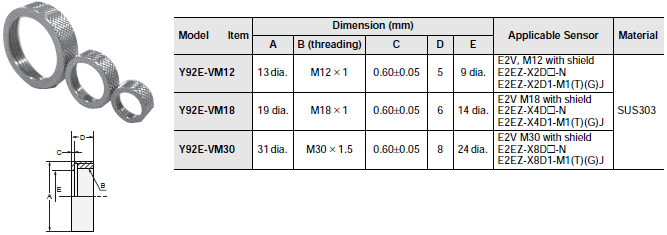

Protective Cover (Metal Cover for E2V and E2EZ Sensors)

Y92[] Dimensions 6
