E8Y

Differential Pressure Sensor

E8Y

Micropressure Sensor with Easy-to-Read Digital Display

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

(Unit: mm)

Sensors

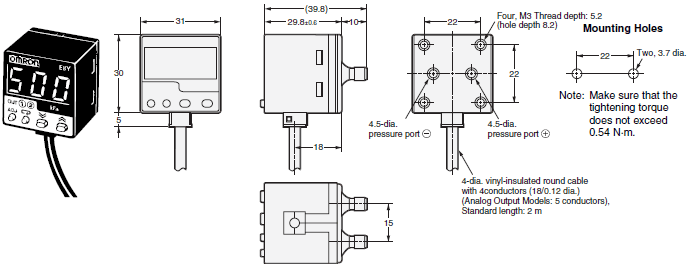

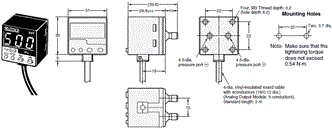

Standard Port Type (Pressure Port: 4.5 dia.)

E8Y-AR5C
E8Y-AR2C
E8Y-A2C
E8Y-A5C
E8Y-A5B
E8Y-AR2Y
E8Y-A2Y
E8Y-A5Y

E8Y Dimensions 3

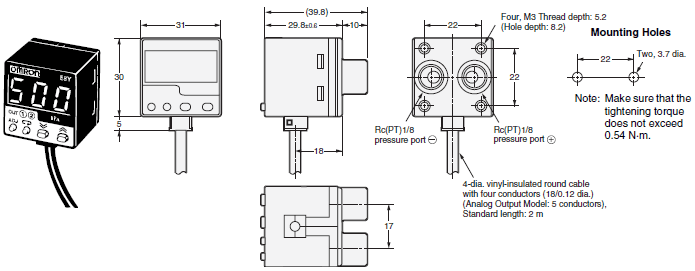

Die-case Port Type (Pressure port: Rc(PT)1/8)

E8Y-A2C-R
E8Y-A5C-R
E8Y-A2Y-R
E8Y-A5Y-R

E8Y Dimensions 4

Accessories (Provided)

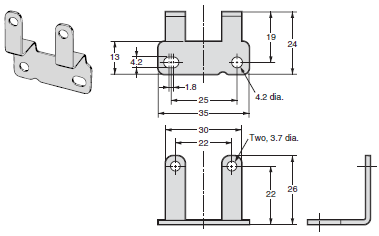

Mounting Bracket A

E8Y Dimensions 6

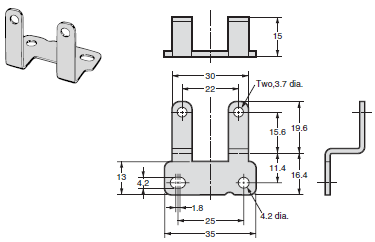

Mounting Bracket B

E8Y Dimensions 7
