Round Water-resistant Connectors (M12 Threads)
last update: March 3, 2022
Connector | Cable
specifications |

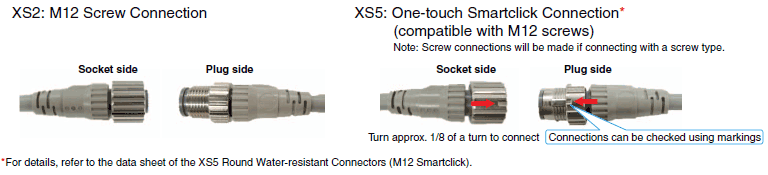

XS2: M12 Screw Connection | XS5: One-touch Smartclick Connection *
(compatible with M12 connectors) |
||
---|---|---|---|---|---|
Cable
length (m) |
Model | Cable
length (m) |
Model | ||
Connectors on
both cable ends |
Fire-retardant,
PVC robot cable |
0.5 | XS2W-D421-B81-F | 0.5 | XS5W-D421-B81-F |
1 | XS2W-D421-C81-F | 1 | XS5W-D421-C81-F | ||
2 | XS2W-D421-D81-F | 2 | XS5W-D421-D81-F | ||
3 | XS2W-D421-E81-F | 3 | XS5W-D421-E81-F | ||
4 | XS2W-D421-F81-F | 4 | XS5W-D421-F81-F | ||
5 | XS2W-D421-G81-F | 5 | XS5W-D421-G81-F | ||
10 | XS2W-D421-J81-F | 10 | XS5W-D421-J81-F | ||
15 | XS2W-D421-K81-F | 15 | XS5W-D421-K81-F | ||
20 | XS2W-D421-L81-F | 20 | XS5W-D421-L81-F | ||
Spatter-resistant
cable |
2 | XS2W-D421-D81-SA | 2 | XS5W-D421-D81-SA | |
5 | XS2W-D421-G81-SA | 5 | XS5W-D421-G81-SA | ||
Connector on
one cable end (Socket) |
Fire-retardant,
PVC robot cable |
1 | XS2F-D421-C80-F | 1 | XS5F-D421-C80-F |
2 | XS2F-D421-D80-F | 2 | XS5F-D421-D80-F | ||
3 | XS2F-D421-E80-F | 3 | XS5F-D421-E80-F | ||
5 | XS2F-D421-G80-F | 5 | XS5F-D421-G80-F | ||
10 | XS2F-D421-J80-F | 10 | XS5F-D421-J80-F | ||
15 | XS2F-D421-K80-F | 15 | XS5F-D421-K80-F | ||
20 | XS2F-D421-L80-F | 20 | XS5F-D421-L80-F | ||
Spatter-resistant
cable |
2 | XS2F-D421-D80-SA | 2 | XS5F-D421-D80-SA | |
5 | XS2F-D421-G80-SA | 5 | XS5F-D421-G80-SA | ||
Connector on
one cable end (Plug) |
Fire-retardant,
PVC robot cable |
0.3 | XS2H-D421-A80-F | 0.3 | XS5H-D421-A80-F |
0.5 | XS2H-D421-B80-F | 0.5 | XS5H-D421-B80-F | ||
1 | XS2H-D421-C80-F | 1 | XS5H-D421-C80-F | ||
2 | XS2H-D421-D80-F | 2 | XS5H-D421-D80-F | ||
3 | — | 3 | XS5H-D421-E80-F | ||
5 | XS2H-D421-G80-F | 5 | XS5H-D421-G80-F | ||
Spatter-resistant
cable |
0.3 | XS2H-D421-A80-SA | 0.3 | XS5H-D421-A80-SA | |
1 | XS2H-D421-C80-SA | 1 | XS5H-D421-C80-SA |
*For details, refer to the data sheet of the XS5 Round Water-resistant Connectors (M12 Smartclick).
Note 1. Only DC, straight, 4-core types, and common cable specifications are shown above. Refer to the catalog for other products.
Note 2. Other than the M12 sizes introduced above, M8-sized (XS3) products are also available.
For details, refer to the data sheet of the XS3 Round Water-resistant Connectors (M8/S8).

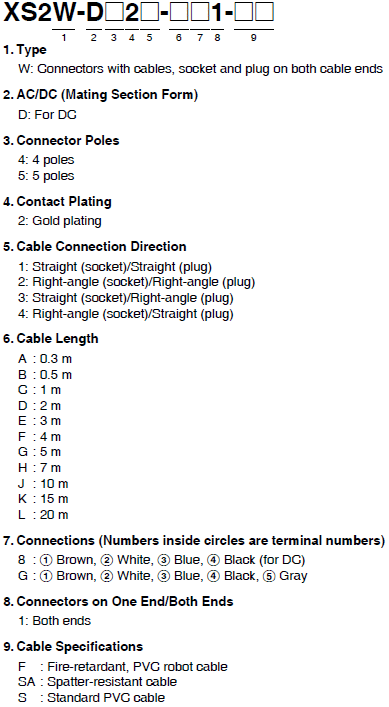

Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable
Specifi- cations |
Cable connection
direction |
No. of
cable cores |
Cable
diam- eter (mm) |
Cable core
cross- sectional area (mm2) |
Cable
length L (m) |
DC | UL |
---|---|---|---|---|---|---|---|
Model | |||||||
Fire-
retardant, PVC robot cable |
Straight (Plug)/
Straight (Socket) |
4 | 6.0
dia. |
0.5 | 0.5 | XS2W-D421-B81-F | UL 2238
certified (File No. E207683) |
1 | XS2W-D421-C81-F | ||||||
2 | XS2W-D421-D81-F | ||||||
3 | XS2W-D421-E81-F | ||||||
4 | XS2W-D421-F81-F | ||||||
5 | XS2W-D421-G81-F | ||||||
10 | XS2W-D421-J81-F | ||||||
15 | XS2W-D421-K81-F | ||||||
20 | XS2W-D421-L81-F | ||||||
Right-angle (Plug)/
Right-angle (Socket) |
2 | XS2W-D422-D81-F | |||||
5 | XS2W-D422-G81-F | ||||||
Straight (Socket)/
Right-angle (Plug) |
2 | XS2W-D423-D81-F | |||||
5 | XS2W-D423-G81-F | ||||||
Right-angle (Socket)/
Straight (Plug) |
1 | XS2W-D424-C81-F | |||||
2 | XS2W-D424-D81-F | ||||||
5 | XS2W-D424-G81-F | ||||||
10 | XS2W-D424-J81-F | ||||||
Standard
Cable |
Straight (Plug)/
Straight (Socket) |
5 | 0.3 | 2 | XS2W-D521-DG1-A | --- | |
5 | XS2W-D521-GG1-A | ||||||
Spatter-
resistant cable |
Straight (Plug)/
Straight (Socket) |
4 | 6.6
dia. |
0.5 | 2 | XS2W-D421-D81-SA | --- |
5 | XS2W-D421-G81-SA |
Note: Ask your OMRON representative about other cable lengths.

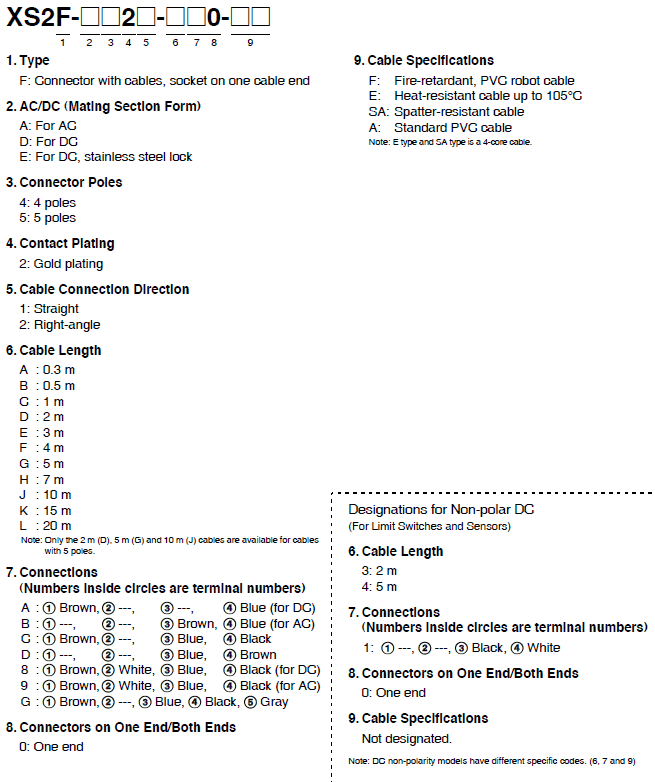

Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable
Specifica- tions |
Cable
connec- tion direction |
No. of
cable cores |
Cable
diam- eter (mm) |
Cable
core cross- sectional area (mm2) |
Cable
length L (m) |
DC | AC | UL |
---|---|---|---|---|---|---|---|---|
Model | Model | |||||||
Fire-retardant,
PVC robot cable |
Straight | 2 | 6.0
dia. |
0.5 | 1 | XS2F-D421-CA0-F | XS2F-A421-CB0-F | UL 2238
certified (File No. E207683) |
3 | XS2F-D421-CC0-F | — | ||||||
4 | XS2F-D421-C80-F | XS2F-A421-C90-F | ||||||
2 | 2 | XS2F-D421-DA0-F | XS2F-A421-DB0-F | |||||
3 | XS2F-D421-DC0-F | — | ||||||
4 | XS2F-D421-D80-F | XS2F-A421-D90-F | ||||||
4 | 3 | XS2F-D421-E80-F | — | |||||
2 | 5 | XS2F-D421-GA0-F | XS2F-A421-GB0-F | |||||
3 | XS2F-D421-GC0-F | — | ||||||
4 | XS2F-D421-G80-F | XS2F-A421-G90-F | ||||||
2 | 10 | XS2F-D421-JA0-F | XS2F-A421-JB0-F | |||||
3 | XS2F-D421-JC0-F | — | ||||||
4 | XS2F-D421-J80-F | XS2F-A421-J90-F | ||||||
15 | XS2F-D421-K80-F | — | ||||||
20 | XS2F-D421-L80-F | — | ||||||
Right-
angle |
2 | 1 | XS2F-D422-CA0-F | XS2F-A422-CB0-F | ||||
3 | XS2F-D422-CC0-F | — | ||||||
4 | XS2F-D422-C80-F | — | ||||||
2 | 2 | XS2F-D422-DA0-F | XS2F-A422-DB0-F | |||||
3 | XS2F-D422-DC0-F | — | ||||||
4 | XS2F-D422-D80-F | — | ||||||
4 | 3 | XS2F-D422-E80-F | — | |||||
2 | 5 | XS2F-D422-GA0-F | XS2F-A422-GB0-F | |||||
3 | XS2F-D422-GC0-F | — | ||||||
4 | XS2F-D422-G80-F | — | ||||||
2 | 10 | XS2F-D422-JA0-F | XS2F-A422-JB0-F | |||||
3 | XS2F-D422-JC0-F | — | ||||||
4 | XS2F-D422-J80-F | — | ||||||
Non-polar DC
Connectors with Standard PVC cable |
Straight | 2 | 2 | XS2F-D421-310 | XS2F-A421-310 | — | ||
2 | 5 | XS2F-D421-410 | XS2F-A421-410 | |||||
Right-
angle |
2 | 2 | XS2F-D422-310 | — | ||||
2 | 5 | XS2F-D422-410 | XS2F-A422-410 | |||||
E2E models
with conventional connector pin with Fire- retardant, PVC robot cable |
Straight | 2 | 2 | XS2F-D421-DD0 | — | — | ||
2 | 5 | XS2F-D421-GD0 | — | |||||
Right-
angle |
2 | 2 | XS2F-D422-DD0 | — | ||||
2 | 5 | XS2F-D422-GD0 | — | |||||
Heat-resistant
cable up to 105°C * |
Straight | 4 | 2 | XS2F-E421-D80-E | — | — | ||
5 | XS2F-E421-G80-E | — | ||||||
Right-
angle |
2 | XS2F-E422-D80-E | — | |||||
5 | XS2F-E422-G80-E | — | ||||||
Spatter-
resistant cable |
Straight | 4 | 6.6
dia. |
2 | XS2F-D421-D80-SA | — | — | |
5 | XS2F-D421-G80-SA | — | ||||||
Standard
PVC cable |
Straight | 5 | 6.0
dia. |
0.3 | 2 | XS2F-D521-DG0-A | — | — |
5 | XS2F-D521-GG0-A | — | ||||||
10 | XS2F-D521-JG0-A | — | ||||||
Right-
angle |
2 | XS2F-D522-DG0-A | — | |||||
5 | XS2F-D522-GG0-A | — |
Note: Ask your OMRON representative about other cable lengths.
* The heat-resistant fixture material is SUS316L stainless steel without surface treatment.

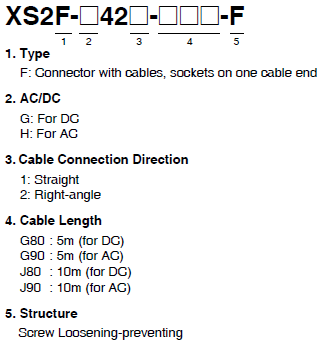

Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable connection
direction |
No. of cable
cores |
Cable length L
(m) |
DC | AC | UL |
---|---|---|---|---|---|
Model | Model | ||||
Straight | 4 | 5 | XS2F-G421-G80-F | XS2F-H421-G90-F | UL 2238 certified
(File No. E207683) |
10 | XS2F-G421-J80-F | XS2F-H421-J90-F | |||
Right-angle | 5 | XS2F-G422-G80-F | XS2F-H422-G90-F | ||
10 | XS2F-G422-J80-F | XS2F-H422-J90-F |

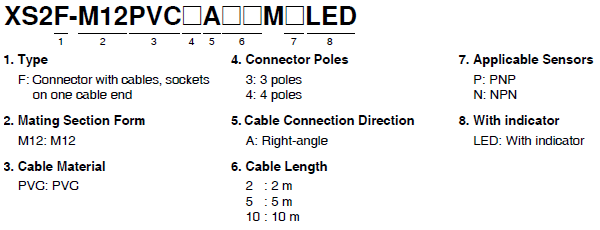

Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable
Specifi- cations |
Cable
connec- tion direction |
Cable
diameter (mm) |
No. of
cable cores |
Cable core
cross- sectional area (mm2) |
Cable
length L (m) |
LED | Model | UL |
---|---|---|---|---|---|---|---|---|
PVC | Right-angle | 5 dia. | 3 | 0.34 | 2 | PNP | XS2F-M12PVC3A2MPLED | UL 2238
certified (File No. E207683) |
5 | XS2F-M12PVC3A5MPLED | |||||||
10 | XS2F-M12PVC3A10MPLED | |||||||
2 | NPN | XS2F-M12PVC3A2MNLED | ||||||
5 | XS2F-M12PVC3A5MNLED | |||||||
10 | XS2F-M12PVC3A10MNLED | |||||||
5.4 dia. | 4 | 2 | PNP | XS2F-M12PVC4A2MPLED | ||||
5 | XS2F-M12PVC4A5MPLED | |||||||
10 | XS2F-M12PVC4A10MPLED |

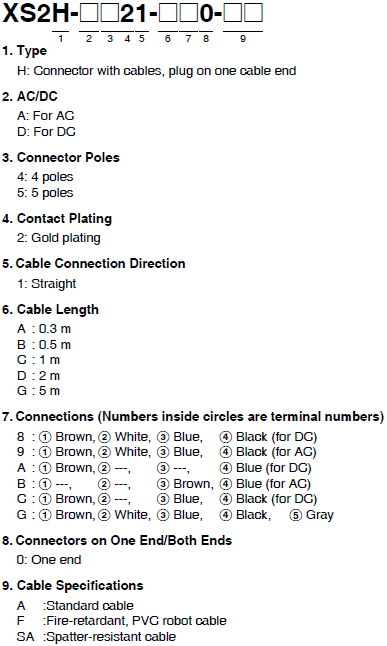

Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable connection direction : Straight Connectors
Cable
Specifi- cations |
No. of
con- nector poles |
Cable
diameter (mm) |
No. of
cable cores |
Cable
core cross- sectional area (mm2) |
Cable
length L (m) |
DC | AC | UL |
---|---|---|---|---|---|---|---|---|
Model | Model | |||||||
Fire-
retardant, PVC robot cable |
4 | 6.0 dia. | 2 | 0.5 | 0.3 | XS2H-D421-AA0-F | XS2H-A421-AB0-F | UL 2238
certified (File No. E207683) |
3 | XS2H-D421-AC0-F | --- | ||||||
4 | XS2H-D421-A80-F | XS2H-A421-A90-F | ||||||
0.5 | XS2H-D421-B80-F | --- | ||||||
2 | 1 | XS2H-D421-CA0-F | XS2H-A421-CB0-F | |||||
3 | XS2H-D421-CC0-F | --- | ||||||
4 | XS2H-D421-C80-F | XS2H-A421-C90-F | ||||||
2 | XS2H-D421-D80-F | --- | ||||||
5 | XS2H-D421-G80-F | --- | ||||||
Spatter-
resistant cable |
4 | 6.6 dia. | 4 | 0.3 | XS2H-D421-A80-SA | --- | --- | |
1 | XS2H-D421-C80-SA | --- | ||||||
Standard
cable |
5 | 6.0 dia. | 5 | 0.3 | 0.3 | XS2H-D521-AG0-A | --- | |
1 | XS2H-D521-CG0-A | --- |
Note: Ask your OMRON representative about other cable lengths.
Connector type | Cable
connection direction |
Number
of cores |
Cable
length L (m) |
Applicable
wire diameter |
Model | UL |
---|---|---|---|---|---|---|
Panel-mounting Plug | — | — | — | AWG22 to 28 | XS2M-D824-4 | — |
Panel-mounting socket | XS2P-D821-2 | UL 2238
certified (File No. E207683) |
||||
XS2P-D822-2 | ||||||
Plug on one cable end | Straight | 8 | 0.3 | --- | XS2H-D821-AH0-C | |
1 | XS2H-D821-CH0-C | |||||
Socket on one cable end | 2 | XS2F-D821-DH0-C | ||||
5 | XS2F-D821-GH0-C | |||||
Plug and socket on
both cable ends |
2 | XS2W-D821-DH1-C | ||||
5 | XS2W-D821-GH1-C |
Note: Ask your OMRON representative about other cable lengths.
Ask your OMRON representative about PVC robot cable models (-R).
Suitable cable
(mm) |
Core
conductor size (mm2) |
Suitable
sheath material |
Cable connection
direction |
Connection
method |
DC | AC | UL |
---|---|---|---|---|---|---|---|
Model | Model | ||||||
6 dia. (5 to 6 dia.) | 0.18 to 0.3
0.5 to 0.75 * |
PVC, PE,
PUR |
Straight | Crimping | XS2G-D4C1 | XS2G-A4C1 | UL 2238
certified (File No. E207683) |
0.5 max. | Soldering | XS2G-D421 | XS2G-A421 | ||||
Right-angle | XS2G-D422 | --- | |||||
4 dia. (4 to 5 dia.) | 0.18 to 0.3
0.5 to 0.75 * |
Straight | Crimping | XS2G-D4C3 | XS2G-A4C3 | ||
0.5 max. | Soldering | XS2G-D423 | XS2G-A423 | ||||
Right-angle | XS2G-D424 | --- | |||||
3 dia. (3 to 4 dia.) | 0.18 to 0.3
0.5 to 0.75 * |
Straight | Crimping | XS2G-D4C5 | XS2G-A4C5 | ||
0.5 max. | Soldering | XS2G-D425 | XS2G-A425 | ||||
Right-angle | XS2G-D426 | --- |
Suitable core size (mm2) | Model |
---|---|
0.18 to 0.3 | XS2U-3121 |
0.5 to 0.75 | XS2U-3122 |
Suitable cable
(mm) |
Core
conductor size (mm2) |
Suitable
sheath material |
Cable connection
direction |
Connection
method |
DC | AC | UL |
---|---|---|---|---|---|---|---|
Model | Model | ||||||
6 dia. (5 to 6 dia.) | 0.18 to 0.3
0.5 to 0.75 * |
PVC, PE,
PUR |
Straight | Crimping | XS2C-D4C1 | XS2C-A4C1 | UL 2238
certified (File No. E207683) |
0.5 max. | Soldering | XS2C-D421 | XS2C-A421 | ||||
0.18 to 0.3
0.5 to 0.75 * |
Right-angle | Crimping | XS2C-D4C2 | XS2C-A4C2 | |||
0.5 max. | Soldering | XS2C-D422 | XS2C-A422 | ||||
4 dia. (4 to 5 dia.) | 0.18 to 0.3
0.5 to 0.75 * |
Straight | Crimping | XS2C-D4C3 | XS2C-A4C3 | ||
0.5 max. | Soldering | XS2C-D423 | XS2C-A423 | ||||
0.18 to 0.3
0.5 to 0.75 * |
Right-angle | Crimping | XS2C-D4C4 | XS2C-A4C4 | |||
0.5 max. | Soldering | XS2C-D424 | XS2C-A424 | ||||
3 dia. (3 to 4 dia.) | 0.18 to 0.3
0.5 to 0.75 * |
Straight | Crimping | XS2C-D4C5 | XS2C-A4C5 | ||
0.5 max. | Soldering | XS2C-D425 | XS2C-A425 | ||||
0.18 to 0.3
0.5 to 0.75 * |
Right-angle | Crimping | XS2C-D4C6 | XS2C-A4C6 | |||
0.5 max. | Soldering | XS2C-D426 | XS2C-A426 |
Suitable core size (mm2) | Model |
---|---|
0.18 to 0.3 | XS2U-2221 |
0.5 to 0.75 | XS2U-2222 |
No. of
poles |
Suitable cable (mm) | Core
conductor size (mm2) |
Suitable sheath
material |
Straight
connectors (for DC) |
Right-angle
connectors (for DC) |
UL |
---|---|---|---|---|---|---|
Model | Model | |||||
5 | 8 dia. (7 to 8 dia.) | 0.18 to 0.75 | PVC, PE, PUR | XS2G-D5S7 | --- | UL 2238 certified
(File No. E207683) |
7 dia. (6 to 7 dia.) | XS2G-D5S9 | --- | ||||
6 dia. (5 to 6 dia.) | XS2G-D5S1 | XS2G-D5S2 | ||||
4 | 8 dia. (7 to 8 dia.) | XS2G-D4S7 | --- | |||
7 dia. (6 to 7 dia.) | XS2G-D4S9 | --- | ||||
6 dia. (5 to 6 dia.) | XS2G-D4S1 | XS2G-D4S2 | ||||
4 dia. (4 to 5 dia.) | XS2G-D4S3 | XS2G-D4S4 | ||||
3 dia. (3 to 4 dia.) | XS2G-D4S5 | XS2G-D4S6 |
No. of
poles |
Suitable cable (mm) | Core
conductor size (mm2) |
Suitable sheath
material |
Straight
connectors (for DC) |
Right-angle
connectors (for DC) |
UL |
---|---|---|---|---|---|---|
Model | Model | |||||
5 | 8 dia. (7 to 8 dia.) | 0.18 to 0.75 | PVC, PE, PUR | XS2C-D5S7 | --- | UL 2238 certified
(File No. E207683) |
7 dia. (6 to 7 dia.) | XS2C-D5S9 | --- | ||||
6 dia. (5 to 6 dia.) | XS2C-D5S1 | XS2C-D5S2 | ||||
4 | 8 dia. (7 to 8 dia.) | XS2C-D4S7 | --- | |||
7 dia. (6 to 7 dia.) | XS2C-D4S9 | --- | ||||
6 dia. (5 to 6 dia.) | XS2C-D4S1 | XS2C-D4S2 | ||||
4 dia. (4 to 5 dia.) | XS2C-D4S3 | XS2C-D4S4 | ||||
3 dia. (3 to 4 dia.) | XS2C-D4S5 | XS2C-D4S6 |
No. of
poles |
Lock method | Pin shape * | Applicable wire
diameter |
DC | AC | UL |
---|---|---|---|---|---|---|
Model | Model | |||||
4 | Rear lock | Solder cup pin | AWG20 to 28 | XS2P-D421-2 | XS2P-A421-2 | UL 2238 certified
(File No. E207683) |
Front lock | Solder cup pin | XS2P-D422-2 | XS2P-A422-2 | |||
DIP pin | XS2P-D422-1 | --- | ||||
5 | Front lock | Solder cup pin | XS2P-D522-2 | --- | — | |
DIP pin | XS2P-D522-1 | --- |
*The solder cup pin is for wire mounting, and the DIP pin is for PCB mounting. Soldering is required for both pins.
Cable | Connector | DC | UL | |
---|---|---|---|---|
Cable length L (m) | Model | |||
With cable | Connectors on both cable ends | 0.5 | XS2R-D426-B11-F | UL 2238 certified
(File No. E207683) |
1 | XS2R-D426-C11-F | |||
2 | XS2R-D426-D11-F | |||
3 | XS2R-D426-E11-F | |||
Connector on one cable end | 2 | XS2R-D426-D10-F | ||
5 | XS2R-D426-G10-F |
Cable | Connector | DC | UL | |
---|---|---|---|---|
Cable length L (m) | Model | |||
Without cable | Connectors on both cable ends | --- | XS2R-D426-1 | — |
XS2R-D426-5 | ||||
XS2R-D426-81 | ||||
XS2R-D426-82 |
Note: XS2G Screw-on Plugs cannot be connected side-by-side to the CN1 and CN2 connectors.
Consider using a crimping or soldering model instead. Refer to catalog Data Sheet for details.
Type | DC | UL |
---|---|---|
Model | ||
Aggregate model | XS2R-D422-1 | UL 2238 certified
(File No. E207683) |
XS2R-D422-5 | ||
Bifurcated model | XS2R-D423-1 | |
Daisy-chain model | XS2R-D424-1 |
No. of
poles |
Mounting method | Pin shape | Applicable wire
diameter |
DC | AC | UL |
---|---|---|---|---|---|---|
Model | Model | |||||
4 | Embedded with screw
threads |
Solder cup
pin |
AWG22 to 28 | XS2M-D421 | XS2M-A421 | UL 2238 certified
(File No. E207683) |
Embedded without
screw threads |
XS2M-D422 | XS2M-A422 |
No. of
poles |
Mounting method | Pin shape *1 | Applicable wire
diameter |
DC | AC | UL |
---|---|---|---|---|---|---|
Model | Model | |||||
4 | Flange-mounting | Solder cup pin | AWG22 to 28 | XS2M-D423 | XS2M-A423 | UL 2238
certified (File No. E207683) |
Screw-mounting | DIP pin | — | XS2M-D424-1 | XS2M-A424-1 | ||
Solder cup pin | AWG20 to 28 | XS2M-D424-2 | XS2M-A424-2 | |||
5 | Screw-mounting | DIP pin | — | XS2M-D524-1 | — | |
Solder cup pin | AWG20 to 28 | XS2M-D524-2 | — |
No. of
poles |
Mounting method | Pin shape *1 | Applicable wire
diameter |
DC | UL |
---|---|---|---|---|---|
Model | |||||
4 | Screw-mounting | DIP pin | — | XS2M-D424-3 | — |
Solder cup pin | AWG20 to 28 | XS2M-D424-4 | |||
5 | DIP pin | — | XS2M-D524-3 | ||
Solder cup pin | AWG20 to 28 | XS2M-D524-4 |
Model | Material | Suitable connector | |
---|---|---|---|
Model | Mounting portion | ||
XS2Z-11 | Copper alloy/
Nickel plated |
XS2G/XS2H/XS2M/XS2R/XS2W/XS5H/XS5M/XS5W | M12 male screw |
XS2Z-22 | XS2C/XS2R/XS2F/XS2P/XS2W/XW3B/XS5F/XS5W/
XS5R/XS5P/XW3D |
M12 female screw
(thread bracket) |
Model | Materials | Suitable connector | |
---|---|---|---|
Model | Mounting portion | ||
XS2Z-13 | Rubber/black | XS2G/XS2H/XS2M/XS2R | M12 male screw |
XS2Z-14 | XS2C/XS2R/XS2F/XS2P/XW3B | Pin block (female pins) | |
XS2Z-15 | M12 female screw (thread bracket) |
Model | Materials | Suitable connector |
---|---|---|
XS2Z-18 | POM | XS2F/H/W |
Model | Materials | Suitable connector |
---|---|---|
XS2Z-31 | Silicone rubber/black | XS5F/XS5H/XS5W/
XS2F/XS2H/XS2W |
Model | |
---|---|
Torque Wrench | XY2F-0004 |
Crimp Tool | XY2F-0002 |
Locator | XY2F-0003 |
Pin-block Extraction Tool | XY2F-0001 |
last update: March 3, 2022
