Discontinued On Dec. 2021

S8T-DCBU-01

DC Backup Block for S8TS

S8T-DCBU-01

DC Backup Block for S8TS Prevents 24-VDC Outages Due to Power Interruptions or Failures

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

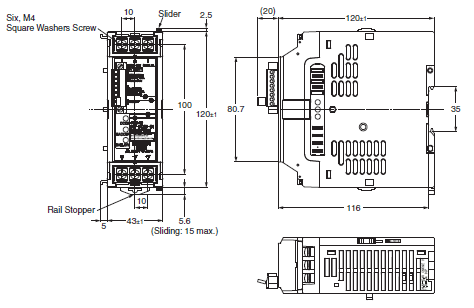

DC Backup Block

S8T-DCBU-01

S8T-DCBU-01 Dimensions 1

Bus Line Connector

S8T-BUS03

S8T-DCBU-01 Dimensions 2

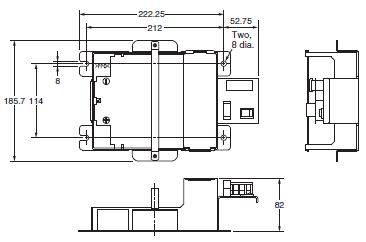

Battery Holder

S82Y-TS01

S8T-DCBU-01 Dimensions 3

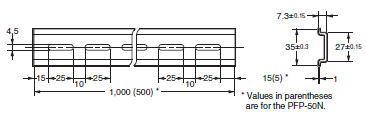

DIN Rail (Order Separately)

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

S8T-DCBU-01 Dimensions 5

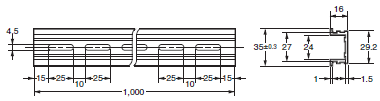

Mounting Rail (Material: Aluminum)

PFP-100N2

S8T-DCBU-01 Dimensions 6

End Plate

PFP-M

S8T-DCBU-01 Dimensions 7
