XW3B

Connector Terminal Boxes

XW3B

Series Includes New Lightweight, Low-profile Connector Terminal Boxes for Use Outside of Control Boxes to Centralize Sensor I/O Connectors with Reduced Labor and Greater Environmental Resistance.

(Unit: mm)

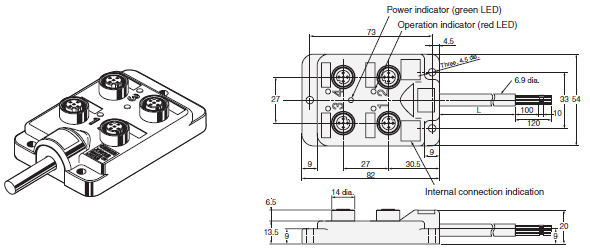

XW3B-P45[]-[]11 (Four Input Ports)

XW3B Dimensions 2

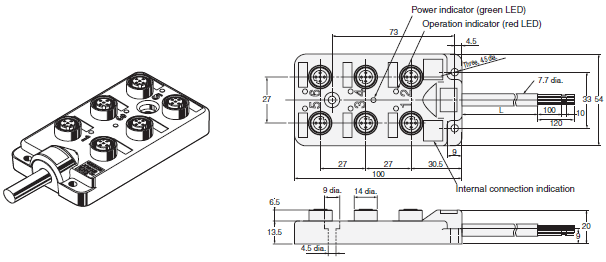

XW3B-P65[]-[]11 (Six Input Ports)

XW3B Dimensions 3

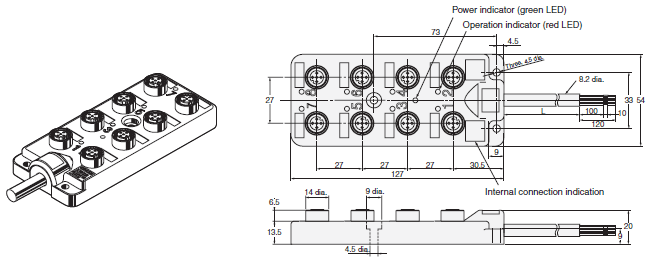

XW3B-P85[]-[]11 (Eight Input Ports)

XW3B Dimensions 4
