Industrial Automation

A2A

Subminiature Pushbutton Switch (Cylindrical 10.5-dia.)

A2A

High-performance Pushbutton Switch with Built-in Subminiature Basic Switch

last update: November 12, 2012

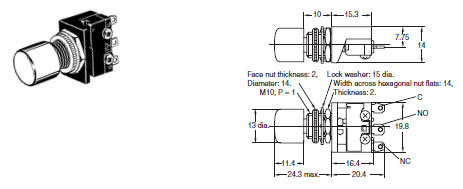

(Unit: mm)

Note: 1. The Operation Unit can be inserted and removed.
2. Unless specified, a tolerance of ± 0.8 mm applies for all dimensions.

Note: Use a mounting panel thickness of 1 to 4 mm.
