ZX-GT
Smart Sensor Wide Laser Beam Measurement Sensor (Line Imaging Device Type)
Achieves Micron Accuracy with Longest-in-Class Sensing Distance
Related Contents
Application Solutions
last update: May 23, 2013
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Sensor Head

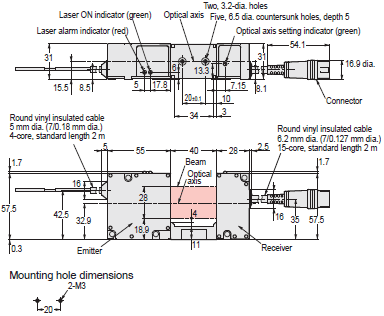

Separate type: ZX-GT28S11/-GT28S41

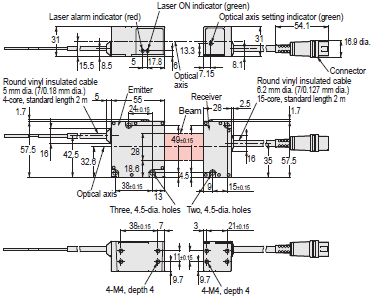

Integrated type: ZX-GT2840S11/-GT2840S41

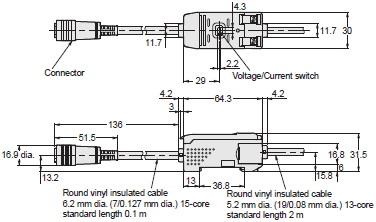

Controller
ZX-GTC11/-GTC41

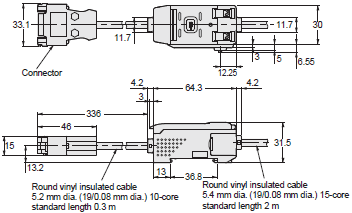

Interface Unit
ZX-GIF11/-GIF41
Calculating Unit
ZX-CAL2
Receiver-Controller Extension Cable
ZX-XGC[]A/-XGC[]R
*1. ZX-XGC1A/R: 1M
ZX-XGC2A/R: 2M
ZX-XGC5A/R: 5M
ZX-XGC8A/R: 8M
ZX-XGC20A/R: 20M
*2. Standard cable: 6.2 dia.
Flexible cable: 6.1 dia.
ZX-XGC2A/R: 2M
ZX-XGC5A/R: 5M
ZX-XGC8A/R: 8M
ZX-XGC20A/R: 20M
*2. Standard cable: 6.2 dia.
Flexible cable: 6.1 dia.
