XW2R (PLCs)

Connector-Terminal Block Conversion Units for PLCs

XW2R (PLCs)

Connector-Terminal Block Conversion Units Designed Specifically to Connect PLCs

Models for Connection to OMRON PLCs

with power supply terminals

Model List

XW2R (PLCs) Lineup 3

Models for OMRON PLCs

Models with 16 Poles

I/O I/O Points I/O Unit Model Models that connect to PLCs Connecting cables *
Input 32 CJ1W-ID231 XW2R-P16GD-C1-COM: 2 pcs
XW2R-N16GD-C1-COM: 2 pcs
XW2Z-[][][]D: 1 Cable
CS1W-ID231
64 CJ1W-ID261 XW2R-P16GD-C1-COM: 4 pcs
XW2R-N16GD-C1-COM: 4 pcs
XW2Z-[][][]D: 2 Cables
CS1W-ID261
I/O 16 NX-MD6121-6 (inputs) XW2R-P16GD-C1-COM: 1 pcs
XW2R-N16GD-C1-COM: 1 pcs
XW2Z-[][][]A: 1 Cable
CJ1W-MD231 (inputs) XW2R-P16GD-C1-COM: 1 pcs
XW2R-N16GD-C1-COM: 1 pcs
XW2Z-[][][]A: 1 Cable
32 CJ1W-MD261 (inputs) XW2R-P16GD-C1-COM: 2 pcs
XW2R-N16GD-C1-COM: 2 pcs
XW2Z-[][][]D: 1 Cable
CS1W-MD261 (inputs)
CS1W-MD262 (inputs)
CS1W-MD561 (inputs)
Input 32 CJ1W-ID232 XW2R-P16GD-C1-COM: 2 pcs
XW2R-N16GD-C1-COM: 2 pcs
XW2Z-[][][]N: 1 Cable
CJ1W-ID233
I/O CJ1W-MD263 (inputs)
CJ1W-MD563 (inputs)
Input 64 CJ1W-ID262 XW2R-P16GD-C1-COM: 4 pcs
XW2R-N16GD-C1-COM: 4 pcs
XW2Z-[][][]N: 2 Cables
Output 32 CJ1W-OD231 XW2R-P16GD-C3-COM: 2 pcs XW2Z-[][][]L: 1 Cable
CS1W-OD231
CS1W-OD232
CJ1W-OD232 XW2R-P16GD-C3-COM: 2 pcs XW2Z-[][][]N: 1 Cables
CJ1W-OD233
CJ1W-OD234
64 CJ1W-OD261 XW2R-P16GD-C3-COM: 4 pcs XW2Z-[][][]L: 2 Cables
CS1W-OD261
CJ1W-OD262 XW2R-P16GD-C3-COM: 4 pcs XW2Z-[][][]N: 2 Cables
CJ1W-OD263
I/O 16 NX-MD6121-6 (outputs) XW2R-P16GD-C3-COM: 1 pcs XW2Z-[][][]A: 1 Cable
CJ1W-MD231 (outputs) XW2R-P16GD-C3-COM: 1 pcs XW2Z-[][][]A: 1 Cable
32 CJ1W-MD261 (outputs) XW2R-P16GD-C3-COM: 2 pcs XW2Z-[][][]L: 1 Cable
CS1W-MD261 (outputs)
CS1W-MD262 (outputs)
CS1W-MD561 (outputs)

* [][][] is replaced by the cable length. Refer to "PLC Connecting Cables".
Note: Connection is not possible to all OMRON PLC Units.
           This Connector-Terminal Block Conversion Unit is for NPN. For PNP, reverse the polarity of the external power
           supply and I/O on the Connector-Terminal Block Conversion Unit.

Models with 32 Poles

I/O I/O Points I/O Unit Model Models that connect to PLCs Connecting cables *
Input 32 NX-ID6142-5 XW2R-P32GD-C2-COM: 1 pcs
XW2R-N32GD-C2-COM: 1 pcs
XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
NX-ID6142-6 XW2R-P32GD-C1-COM: 1 pcs
XW2R-N32GD-C1-COM: 1 pcs
XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CJ1W-ID231 XW2R-P32GD-C1-COM: 1 pcs
XW2R-N32GD-C1-COM: 1 pcs
XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CS1W-ID231
64 CJ1W-ID261 XW2R-P32GD-C1-COM: 2 pcs
XW2R-N32GD-C1-COM: 2 pcs
XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 2 Cables
CS1W-ID261
I/O 32 CJ1W-MD261 (inputs) XW2R-P32GD-C1-COM: 1 pcs
XW2R-N32GD-C1-COM: 1 pcs
XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CS1W-MD261 (inputs)
CS1W-MD262 (inputs)
CS1W-MD561 (inputs)
Input 32 CJ1W-ID232 XW2R-P32GD-C2-COM: 1 pcs
XW2R-N32GD-C2-COM: 1 pcs
XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-ID233
64 CJ1W-ID262 XW2R-P32GD-C2-COM: 2 pcs
XW2R-N32GD-C2-COM: 2 pcs
XW2Z-[][][]K: 2 Cables, or
XW2Z-[][][][]FF-L: 2 Cables
I/O 32 CJ1W-MD263 (inputs) XW2R-P32GD-C2-COM: 1 pcs
XW2R-N32GD-C2-COM: 1 pcs
XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-MD563 (inputs)
Output 32 NX-OD6121-5 XW2R-P32GD-C4-COM: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
NX-OD6256-5
NX-OD6121-6 XW2R-P32GD-C3-COM: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CJ1W-OD231 XW2R-P32GD-C3-COM: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CS1W-OD231
CS1W-OD232
64 CJ1W-OD261 XW2R-P32GD-C3-COM: 2 pcs XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 2 Cables
CS1W-OD261
CS1W-OD262
I/O 32 CJ1W-MD261 (outputs) XW2R-P32GD-C3-COM: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CS1W-MD261 (outputs)
CS1W-MD262 (outputs)
CS1W-MD561 (outputs)
Output 32 CJ1W-OD232 XW2R-P32GD-C4-COM: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-OD233
CJ1W-OD234
64 CJ1W-OD262 XW2R-P32GD-C4-COM: 2 pcs XW2Z-[][][]K: 2 Cables, or
XW2Z-[][][][]FF-L: 2 Cables
CJ1W-OD263
I/O 32 CJ1W-MD263 (outputs) XW2R-P32GD-C4-COM: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-MD563 (outputs)

* [][][][] is replaced by the cable length. Refer to "PLC Connecting Cables".
Note: Connection is not possible to all OMRON PLC Units.
           This Connector-Terminal Block Conversion Unit is for NPN. For PNP, reverse the polarity of the external power
           supply and I/O on the Connector-Terminal Block Conversion Unit.

PLC Connecting Cables

XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector

Appearance Cable length L (m) With shield Without shield
Model Model
3153_lu_4_1 0.5 XW2Z-050B XW2Z-0050BF-L
1 XW2Z-100B XW2Z-0100BF-L
1.5 XW2Z-150B XW2Z-0150BF-L
2 XW2Z-200B XW2Z-0200BF-L
3 XW2Z-300B XW2Z-0300BF-L
5 XW2Z-500B XW2Z-0500BF-L
7 XW2Z-700B XW2Z-0700BF-L
10 XW2Z-010B XW2Z-1000BF-L
15 XW2Z-15MB ---
20 XW2Z-20MB ---

Cable length L (m)

XW2R (PLCs) Lineup 11

XW2Z-[][][]K, XW2Z-[][][][]FF-L
Connectors: One 40-pin Connector to One 40-pin MIL Connector

Appearance Cable length L (m) With shield Without shield
Model Model
3153_lu_5_1 0.25 XW2Z-C25K ---
0.5 XW2Z-C50K XW2Z-0050FF-L
1 XW2Z-100K XW2Z-0100FF-L
1.5 XW2Z-150K XW2Z-0150FF-L
2 XW2Z-200K XW2Z-0200FF-L
3 XW2Z-300K XW2Z-0300FF-L
5 XW2Z-500K XW2Z-0500FF-L
7 --- XW2Z-0700FF-L
10 XW2Z-010K XW2Z-1000FF-L

Cable length L (m)

XW2R (PLCs) Lineup 14

Push-in spring

Appearance ∗1 I/O Points Input/Output Model ∗2
3153_lu_6_1 16 Input XW2R-P16GD-C1-COM
Output XW2R-P16GD-C3-COM
32 Input XW2R-P32GD-C1-COM
XW2R-P32GD-C2-COM
Output XW2R-P32GD-C3-COM
XW2R-P32GD-C4-COM

*1 Input models (XW2R-P[][]GD-C1/C2-COM) are black and output models (XW2R-P[][]GD-C3/C4-COM) are green.
*2 Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

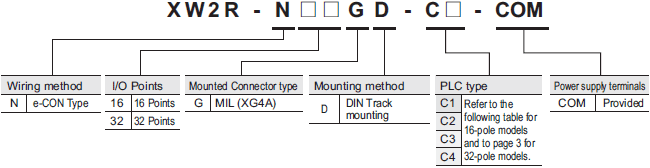

e-CON Type

Appearance I/O Points Input/Output Model
3153_lu_7_1 16 Input XW2R-N16GD-C1-COM
32 XW2R-N32GD-C1-COM
XW2R-N32GD-C2-COM

without power supply terminals

Model List

XW2R (PLCs) Lineup 19

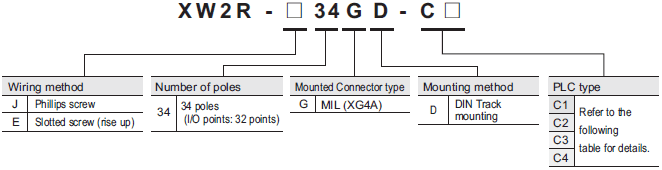

Models for OMRON PLCs

I/O I/O Points I/O Unit Model Models that connect to PLCs *1 Connecting cables *2
Input 32 NX-ID6142-6 XW2R-[]34GD-C1: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CJ1W-ID231 XW2R-[]34GD-C1: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CS1W-ID231
64 CJ1W-ID261 XW2R-[]34GD-C1: 2 pcs XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 2 Cables
CS1W-ID261
I/O 32 CJ1W-MD261 (inputs) XW2R-[]34GD-C1: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CS1W-MD261 (inputs)
CS1W-MD262 (inputs)
CS1W-MD561 (inputs)
Input 32 NX-ID6142-5 XW2R-[]34GD-C2: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-ID232 XW2R-[]34GD-C2: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-ID233
64 CJ1W-ID262 XW2R-[]34GD-C2: 2 pcs XW2Z-[][][]K: 2 Cables, or
XW2Z-[][][][]FF-L: 2 Cables
I/O 32 CJ1W-MD263 (inputs) XW2R-[]34GD-C2: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-MD563 (inputs)
Output 32 NX-OD6121-6 XW2R-[]34GD-C3: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CJ1W-OD231 XW2R-[]34GD-C3: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CS1W-OD231
CS1W-OD232
64 CJ1W-OD261 XW2R-[]34GD-C3: 2 pcs XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 2 Cables
CS1W-OD261
CS1W-OD262
I/O 32 CJ1W-MD261 (outputs) XW2R-[]34GD-C3: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
CS1W-MD261 (outputs)
CS1W-MD262 (outputs)
CS1W-MD561 (outputs)
Output 32 NX-OD6121-5 XW2R-[]34GD-C4: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
NX-OD6256-5
CJ1W-OD232 XW2R-[]34GD-C4: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-OD233
CJ1W-OD234
64 CJ1W-OD262 XW2R-[]34GD-C4: 2 pcs XW2Z-[][][]K: 2 Cables, or
XW2Z-[][][][]FF-L: 2 Cables
CJ1W-OD263
I/O 32 CJ1W-MD263 (outputs) XW2R-[]34GD-C4: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable
CJ1W-MD563 (outputs)

*1 Replace the box ([]) with the wiring method code (J, E, or P).
*2 [][][][] is replaced by the cable length. For details, refer to Data Sheet.
Note: 1. Connection is not possible to all OMRON PLC Units.
           2. There is one common for each 32 points.

Phillips screw

Appearance I/O Points (Number of poles) Model ∗
3153_lu_10_1 32 (34) XW2R-J34GD-C1
XW2R-J34GD-C2
XW2R-J34GD-C3
XW2R-J34GD-C4

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Slotted screw (rise up)

Appearance I/O Points (Number of poles) Model ∗
3153_lu_11_1 32 (34) XW2R-E34GD-C1
XW2R-E34GD-C2
XW2R-E34GD-C3
XW2R-E34GD-C4

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Push-in spring

Appearance I/O Points (Number of poles) Model ∗
3153_lu_12_1 32 (34) XW2R-P34GD-C1
XW2R-P34GD-C2
XW2R-P34GD-C3
XW2R-P34GD-C4

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Models for Connection to Mitsubishi PLCs

with power supply terminals

Model List

XW2R (PLCs) Lineup 30

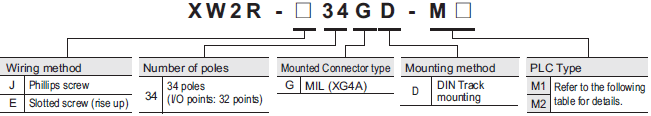

Models for Connection to Mitsubishi PLCs

PLC Type I/O Points Mitsubishi PLC Module model Models that connect to PLCs Connecting cables *
M1 32 LX41C4 XW2R-P32GD-M1-COM: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
QX41/QX41-S1/QX41-S2
QX71
RX41C4
QH42P (Input)
QX41Y41P (Input)
RH42C4NT2P (Input)
64 LX42C4 XW2R-P32GD-M1-COM: 2 pcs XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 2 Cables
QX42/QX42-S1
QX82/QX82-S1
RX42C4
M2 32 LY41NT1P XW2R-P32GD-M2-COM: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
QY41P
QY71
RY41NT2P
RY41PT1P
QH42P (Output)
QX41Y41P (Output)
RH42C4NT2P (Output)
64 LY42NT1P XW2R-P32GD-M2-COM: 2 pcs XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 2 Cables
QY42P
QY82P
RY42NT2P
RY42PT1P

* [][][][] is replaced by the cable length.
Note: This Connector-Terminal Block Conversion Unit is for NPN. For PNP, reverse the polarity of the external power
          supply and I/O on the Connector-Terminal Block Conversion Unit.

XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector

Appearance Cable length L (m) With shield Without shield
Model Model
3153_lu_15_1 0.5 XW2Z-050B XW2Z-0050BF-L
1 XW2Z-100B XW2Z-0100BF-L
1.5 XW2Z-150B XW2Z-0150BF-L
2 XW2Z-200B XW2Z-0200BF-L
3 XW2Z-300B XW2Z-0300BF-L
5 XW2Z-500B XW2Z-0500BF-L
7 XW2Z-700B XW2Z-0700BF-L
10 XW2Z-010B XW2Z-1000BF-L
15 XW2Z-15MB ---
20 XW2Z-20MB ---

Cable length L (m)

XW2R (PLCs) Lineup 35

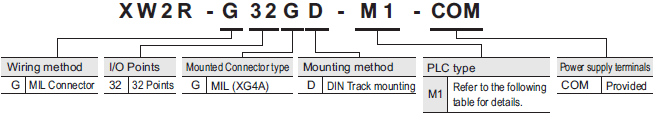

MIL Connector

Models for Connection to Mitsubishi PLCs

I/O Points Model Models that connect to PLCs Connecting cables *
32 QX41, QX41-S1, QX41-S2, QX71 XW2R-G32GD-M1-COM: 1 pcs Connection A
XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
Connection B
XW2Z-[][][]AA: 4 Cables
QH42P (Input) , QX41Y41P (Input)
LX41C4
64 QX42, QX42-S1, QX82, QX82-S1 XW2R-G32GD-M1-COM: 2 pcs Connection A
XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 2 Cables
Connection B
XW2Z-[][][]AA: 8 Cables
LX42C4

* [][][][] is replaced by the cable length.
Note: Refer to Data Sheet for information on the XW2Z-[][][]B and XW2Z-[][][][]BF-L.
          This Connector-Terminal Block Conversion Unit is for NPN. For PNP,reverse the polarity of the external power
          supply and I/O on the Connector-Terminal Block Conversion Unit.

XW2Z-[][][]AA
One 14-pin MIL Connector to One 14-pin MIL Connector

Appearance Cable length L (m) With shield
Model
3153_lu_17_1 0.5 XW2Z-050AA
1 XW2Z-100AA
2 XW2Z-200AA
5 XW2Z-500AA
10 XW2Z-010AA

Cable length L (m)

XW2R (PLCs) Lineup 41

Appearance Model Number of poles
3153_lu_18_1 XW2R-G32GD-M1-COM 40 poles x 1 point
14 poles x 4 points

Appearance I/O
Points
Number
of poles
(PLC end)
I/O Model Mounted
Connector model
Cable Connector
model
3153_lu_19_1 8
points
14 poles Input XW2R-N08GD-COM XG4A-1431 (PLC end)
XN2D-4471 (for input)
XG4M-1430-T (PLC end)
XN2A-1470 (for input)

Push-in spring

Appearance I/O Points Input/Output Model
3153_lu_20_1 32 points Input XW2R-P32GD-M1-COM
Output XW2R-P32GD-M2-COM

without power supply terminals

Model List

XW2R (PLCs) Lineup 46

Models for Connection to Mitsubishi PLCs

PLC
Type
I/O
Points
Mitsubishi PLC Module model Models that connect to PLCs *1 Connecting cables *2
M1 32 LX41C4 XW2R-[]34GD-M1: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][]BF-L: 1 Cable
QX41/QX41-S1/QX41-S2
QX71
RX41C4
QH42P (Input)
QX41Y41P (Input)
RH42C4NT2P (Input)
64 LX42C4 XW2R-[]34GD-M1: 2 pcs XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 2 Cables
QX42/QX42-S1
QX82/QX82-S1
RX42C4
M2 32 LY41NT1P XW2R-[]34GD-M2: 1 pcs XW2Z-[][][]B: 1 Cable, or
XW2Z-[][][][]BF-L: 1 Cable
QY41P
QY71
RY41NT2P
RY41PT1P
QH42P (Output)
QX41Y41P (Output)
RH42C4NT2P (Output)
64 LY42NT1P XW2R-[]34GD-M2: 2 pcs XW2Z-[][][]B: 2 Cables, or
XW2Z-[][][][]BF-L: 1 Cable
QY42P
QY82P
RY42NT2P
RY42PT1P

*1 Replace the box ([]) with the wiring method code (J, E, or P).
*2 [][][][] is replaced by the cable length.

XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector

Appearance Cable length L (m) With shield Without shield
Model Model
3153_lu_23_1 0.5 XW2Z-050B XW2Z-0050BF-L
1 XW2Z-100B XW2Z-0100BF-L
1.5 XW2Z-150B XW2Z-0150BF-L
2 XW2Z-200B XW2Z-0200BF-L
3 XW2Z-300B XW2Z-0300BF-L
5 XW2Z-500B XW2Z-0500BF-L
7 XW2Z-700B XW2Z-0700BF-L
10 XW2Z-010B XW2Z-1000BF-L
15 XW2Z-15MB ---
20 XW2Z-20MB ---

Cable length L (m)

XW2R (PLCs) Lineup 51

Phillips screw

Appearance I/O Points (Number of poles) Model ∗
3153_lu_24_1 32 (34) XW2R-J34GD-M1
XW2R-J34GD-M2

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Slotted screw (rise up)

Appearance I/O Points (Number of poles) Model ∗
3153_lu_25_1 32 (34) XW2R-E34GD-M1
XW2R-E34GD-M2

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Push-in spring

Appearance I/O Points (Number of poles) Model ∗
3153_lu_26_1 32 (34) XW2R-P34GD-M1
XW2R-P34GD-M2

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Models for Keyence PLCs

with power supply terminals

Model List

XW2R (PLCs) Lineup 60

Models for Keyence PLCs

I/O I/O
Points
Unit Models for
Keyence PLCs
Models that connect
to PLCs
Connecting cables *
Input 32 Input Unit
Model
KV-C32XA, KV-C32XC XW2R-P32GD-K1-COM: 1 pcs XW2Z-[][][]EE: 1 Cable, or
XW2Z-[][][][]EE-L: 1 Cable
64 KV-C64XA, KV-C64XB,
KV-C64XC
XW2R-P32GD-K1-COM: 2 pcs XW2Z-[][][]EE: 2 Cables, or
XW2Z-[][][][]EE-L: 2 Cables

* [][][][] is replaced by the cable length.
Note: This Connector-Terminal Block Conversion Unit is for NPN. For PNP,reverse the polarity of the external power
          supply and I/O on the Connector-Terminal Block Conversion Unit.

XW2Z-[][][]EE, XW2Z-[][][]EE-L
Connectors: One 34-pin MIL Connector to One 34-pin MIL Connector

Appearance Cable length L (m) With shield Without shield
Model Model
3153_lu_29_1 0.5 XW2Z-050EE XW2Z-0050EE-L
1 XW2Z-100EE XW2Z-0100EE-L
1.5 XW2Z-150EE XW2Z-0150EE-L
2 XW2Z-200EE XW2Z-0200EE-L
3 XW2Z-300EE XW2Z-0300EE-L
5 XW2Z-500EE XW2Z-0500EE-L
7 --- XW2Z-0700EE-L
10 --- XW2Z-1000EE-L

Cable length L (m)

XW2R (PLCs) Lineup 65

Push-in spring

Appearance I/O Points Model
3153_lu_30_1 32 XW2R-P32GD-K1-COM

without power supply terminals

Model List

XW2R (PLCs) Lineup 68

Models for Keyence PLCs

I/O I/O
Points
Unit Models for Keyence PLCs Models that connect
to PLCs *1
Connecting cables *2
Input 32 I/O
Unit
Model
KV-C32XA, KV-C32XC XW2R-[]34GD-K1: 1 pcs XW2Z-[][][]EE: 1 Cable, or
XW2Z-[][][][]EE-L: 1 Cable
Output KV-C32TA, KV-C32TC, KV-C32TCP
KV-C32TD
I/O KV-C32XTD
Input 64 KV-C64XA, KV-C64XB, KV-C64XC XW2R-[]34GD-K1: 2 pcs XW2Z-[][][]EE: 2 Cables, or
XW2Z-[][][][]EE-L: 2 Cables
Output KV-C64TA, KV-C64TC, KV-C64TD,
KV-C64TCP
--- --- CPU
Unit
Model
KV-1000, KV-3000, KV-5000,
KV-5500
XW2R-[]40GD-K2: 1 pcs XW2Z-[][][]K: 1 Cable, or
XW2Z-[][][][]FF-L: 1 Cable

*1 Replace the box ([]) with the wiring method code (J or P).
*2 [][][][] is replaced by the cable length.

XW2Z-[][][]EE, XW2Z-[][][][]EE-L
Connectors: One 34-pin MIL Connector to One 34-pin MIL Connector

Appearance Cable length L (m) With shield Without shield
Model Model
3153_lu_33_1 0.5 XW2Z-050EE XW2Z-0050EE-L
1 XW2Z-100EE XW2Z-0100EE-L
1.5 XW2Z-150EE XW2Z-0150EE-L
2 XW2Z-200EE XW2Z-0200EE-L
3 XW2Z-300EE XW2Z-0300EE-L
5 XW2Z-500EE XW2Z-0500EE-L
7 --- XW2Z-0700EE-L
10 --- XW2Z-1000EE-L

Cable length L (m)

XW2R (PLCs) Lineup 73

XW2Z-[][][]K, XW2Z-[][][][]FF-L
Connectors: One 40-pin MIL Connector to One 40-pin MIL Connector

Appearance Cable length L (m) With shield Without shield
Model Model
3153_lu_34_1 0.25 XW2Z-C25K ---
0.5 XW2Z-C50K XW2Z-0050FF-L
1 XW2Z-100K XW2Z-0100FF-L
1.5 XW2Z-150K XW2Z-0150FF-L
2 XW2Z-200K XW2Z-0200FF-L
3 XW2Z-300K XW2Z-0300FF-L
5 XW2Z-500K XW2Z-0500FF-L
7 --- XW2Z-0700FF-L
10 XW2Z-010K XW2Z-1000FF-L

Cable length L (m)

XW2R (PLCs) Lineup 76

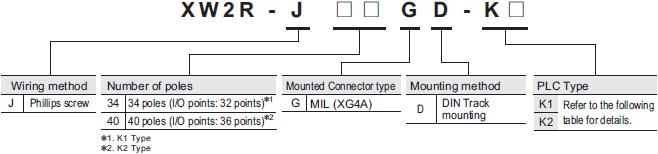

Phillips screw

Appearance I/O Points (Number of poles) Model ∗
3153_lu_35_1 32 (34) XW2R-J34GD-K1
36 (40) XW2R-J40GD-K2

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Push-in spring

Appearance I/O Points (Number of poles) Model ∗
3153_lu_36_1 32 (34) XW2R-P34GD-K1
36 (40) XW2R-P40GD-K2

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Input Device Connectors: XN2 e-CON Connectors

For Sensor

Appearance Number of poles Model
3153_lu_37_1 4 XN2A-1470

Relay Connector

Appearance Number of poles Model
3153_lu_38_1 4 XN2B-1470
