D6FZ-FGS Series

Air Flow Sensor

D6FZ-FGS Series

The Best Product to Measure Compressed Air on Production Lines. Simultaneous Measurement of Leakage, Usage and Pressure.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: March 1, 2023

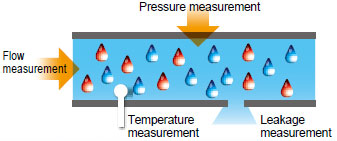

Multiple sensing

Simultaneous measurement of Leakage, usage and pressure

Equipped with multiple sensing functions
With 1 sensor, the compressed air conditions can be identified.

Simple setting

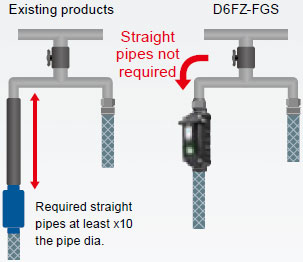

Mountable to curved pipe or coupler [Silencer]

The built-in silencer eliminates ultrasonic noise and turbulence flow. It makes installation work easy because straight pipes not required.

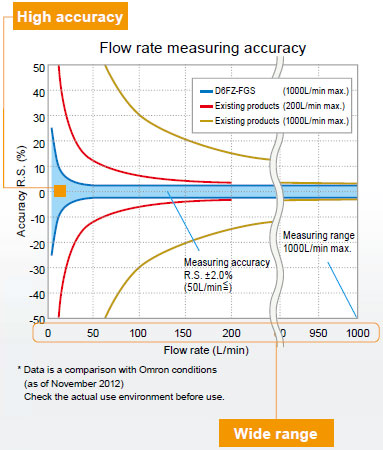

High accuracy

High accuracy flow measurement

High measuring accuracy of ±2% R.S. (50L/min≦) is achieved.

Wide range flow measurement

Wide measuring range of 1~1000L/min is achieved.

Tolerant of oil and mist [Ultrasonic sensor]

Featuring ultrasonic sensor
It can be installed to rusty pipe, and measured gas discharged from oil flooded compressor.

Main Features

•Analog output (2 outputs)
•Pulse output (2 outputs)
•RS-485 communications
•IP64
•Operation indicator
•Threshold value (peak/bottom/leak)
•Alarm hold
