Discontinued On Mar. 2023

A3P (Super Luminosity Type)

Lighted Pushbutton Switch (Square) Ultra Bright LED Type

A3P (Super Luminosity Type)

Large Square-bodied Lighted Pushbutton Switches New models added with Ultra LEDs.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Model Number Structure

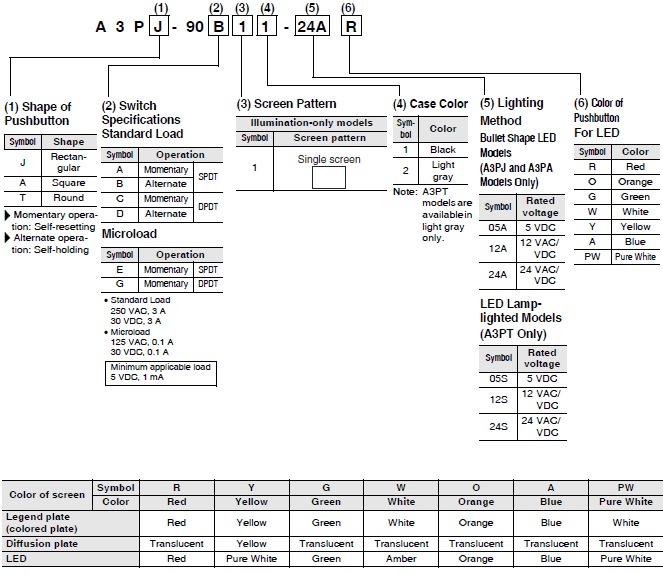

Model Number Legend

The model numbers used to order sets of Units are illustrated below. One set comprises the Pushbutton, Lamp, and Switch.
For information on combinations, refer to Ordering Information.

A3P (Super Luminosity Type) Lineup 2

Ordering Information

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Pushbutton, Lamp, and Switch.
(Not all combinations are possible. Ask your OMRON representative for details.)

A3P (Super Luminosity Type) Lineup 5

Lighting method Operation Momentary operation
(Self-resetting)
Alternate operation
(Self-holding)
Contact
type
No. of
outputs
Pushbutton
color
symbol
Case
color
Black Light gray Black Light gray
Standard
Loads
SPDT Bullet Shape
LEDs
R, O, G, W,
Y, A or PW
12 VAC/DC A3PJ-90A11-12A(1) A3PJ-90A12-12A(1) A3PJ-90B11-12A(1) A3PJ-90B12-12A(1)
24 VAC/DC A3PJ-90A11-24A(1) A3PJ-90A12-24A(1) A3PJ-90B11-24A(1) A3PJ-90B12-24A(1)
DPDT Bullet Shape
LEDs
R, O, G, W,
Y, A or PW
12 VAC/DC A3PJ-90C11-12A(1) A3PJ-90C12-12A(1) A3PJ-90D11-12A(1) A3PJ-90D12-12A(1)
24 VAC/DC A3PJ-90C11-24A(1) A3PJ-90C12-24A(1) A3PJ-90D11-24A(1) A3PJ-90D12-24A(1)
Microloads SPDT Bullet Shape
LEDs
R, O, G, W,
Y, A or PW
12 VAC/DC A3PJ-90E11-12A(1) A3PJ-90E12-12A(1) --- ---
24 VAC/DC A3PJ-90E11-24A(1) A3PJ-90E12-24A(1) --- ---
DPDT Bullet Shape
LEDs
R, O, G, W,
Y, A or PW
12 VAC/DC A3PJ-90G11-12A(1) A3PJ-90G12-12A(1) --- ---
24 VAC/DC A3PJ-90G11-24A(1) A3PJ-90G12-24A(1) --- ---

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

A3P (Super Luminosity Type) Lineup 6

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Pushbutton, Lamp, and Switch.

A3P (Super Luminosity Type) Lineup 8

Lighting method Operation Momentary operation
(Self-resetting)
Alternate operation
(Self-holding)
Contact
type
No. of
outputs
Pushbutton
color
symbol
Case
color
Black Light gray Black Light gray
Standard
Loads
SPDT Bullet Shape
LEDs
R, O, G, W,
Y, A or PW
12 VAC/DC A3PA-90A11-12A(1) A3PA-90A12-12A(1) A3PA-90B11-12A(1) A3PA-90B12-12A(1)
24 VAC/DC A3PA-90A11-24A(1) A3PA-90A12-24A(1) A3PA-90B11-24A(1) A3PA-90B12-24A(1)
DPDT Bullet Shape
LEDs
R, O, G, W,
Y, A or PW
12 VAC/DC A3PA-90C11-12A(1) A3PA-90C12-12A(1) A3PA-90D11-12A(1) A3PA-90D12-12A(1)
24 VAC/DC A3PA-90C11-24A(1) A3PA-90C12-24A(1) A3PA-90D11-24A(1) A3PA-90D12-24A(1)
Microloads SPDT Bullet Shape
LEDs
R, O, G, W,
Y, A or PW
12 VAC/DC A3PA-90E11-12A(1) A3PA-90E12-12A(1) --- ---
24 VAC/DC A3PA-90E11-24A(1) A3PA-90E12-24A(1) --- ---
DPDT Bullet Shape
LEDs
R, O, G, W,
Y, A or PW
12 VAC/DC A3PA-90G11-12A(1) A3PA-90G12-12A(1) --- ---
24 VAC/DC A3PA-90G11-24A(1) A3PA-90G12-24A(1) --- ---

Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

A3P (Super Luminosity Type) Lineup 9
A3P (Super Luminosity Type) Lineup 10

Operation Momentary operation
(Self-resetting)
Alternate operation
(Self-holding)
Pushbutton
color
symbol
Contact
type
No. of
outputs
Lighting method Case
color
Light gray Light gray
Standard
Loads
SPDT LED
lamp
24 VAC/DC A3PT-90A12-24S(1) A3PT-90B12-24S(1) R
O
G
W
Y
A
PW
DPDT 24 VAC/DC A3PT-90C12-24S(1) A3PT-90D12-24S(1)

Note: Enter the desired color symbols for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.

A3P (Super Luminosity Type) Lineup 11

Accessories and Tools

Accessories, Tools, and the replacement parts (caps only) are the same as those for the A3P. Refer to the A3P datasheet.
Individual colored plates and legend plates are not available.
