Miniature Power Relays
last update: October 1, 2024

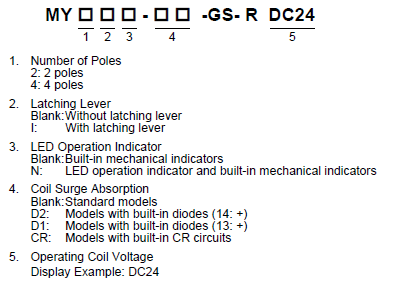

Category | Number
of poles |
Contact
structure |
Plug-in (octal pins) terminals
![]() |
|||
---|---|---|---|---|---|---|
With operation indicator | ||||||
With latching lever | ||||||
Standard models | 2 | Single | MY2-GS-R | MY2N-GS-R | MY2IN-GS-R | |
4 | MY4-GS-R | MY4N-GS-R | MY4IN-GS-R | |||
Models with built-in diodes
for coil surge absorption |
![]() |
2 | --- | MY2N-D2-GS-R | MY2IN-D2-GS-R | |
4 | --- | MY4N-D2-GS-R | MY4IN-D2-GS-R | |||
![]() |
2 | --- | MY2N-D1-GS-R | MY2IN-D1-GS-R | ||
4 | --- | MY4N-D1-GS-R | MY4IN-D1-GS-R | |||
Models with built-in CR circuits
for coil surge absorption |
2 | --- | MY2N-CR-GS-R | MY2IN-CR-GS-R | ||
4 | --- | MY4N-CR-GS-R | MY4IN-CR-GS-R |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110 VDC |
4 | MY4-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110 VDC |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2N-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC |
4 | MY4N-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2IN-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC |
4 | MY4IN-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2N-D2-GS-R | 12, 24, 48, 100/110, 220 VDC |
4 | MY4N-D2-GS-R | 12, 24, 48, 100/110, 220 VDC |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2N-D1-GS-R | 12, 24, 48, 100/110 VDC |
4 | MY4N-D1-GS-R | 12, 24, 48, 100/110 VDC |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2IN-D2-GS-R | 12, 24, 48, 100/110, 220 VDC |
4 | MY4IN-D2-GS-R | 12, 24, 48, 100/110, 220 VDC |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2IN-D1-GS-R | 12, 24, 48, 100/110 VDC |
4 | MY4IN-D1-GS-R | 12, 24, 48, 100/110 VDC |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2N-CR-GS-R | 100/110, 110/120, 200/220, 220/240 VAC |
4 | MY4N-CR-GS-R | 100/110, 110/120, 200/220, 220/240 VAC |
Number of poles | Model | Rated voltage (V) |
---|---|---|
2 | MY2IN-CR-GS-R | 100/110, 110/120, 200/220, 220/240 VAC |
4 | MY4IN-CR-GS-R | 100/110, 110/120, 200/220, 220/240 VAC |
Number
of Pins |
Applicable
Relay Model |
Terminal Type | Mounting Method | Appearance | Model | Hold-down
Clips |
---|---|---|---|---|---|---|
8 | MY2[]-GS-R | Screw terminal
Finger protection structure *1 (Screw size M3) |
DIN Track or screw
mounting |
![]() |
PYFZ-08-E | PYC-A1 *3 |
Screw terminal
Finger protection structure *1 (Screw size M3) |
DIN Track or screw
mounting |
![]() |
PYF08A-N | PYC-A1 *3 | ||
Push-In Plus Terminal
(Integrated Socket with release lever) |
DIN Track or screw
mounting *2 |
![]() |
PYF-08-PU | --- | ||
14 | MY4[]-GS-R | Screw terminal
Finger protection structure *1 (Screw size M3) |
DIN Track or screw
mounting |
![]() |
PYFZ-14-E | PYC-A1 *3 |
Screw terminal
Finger protection structure *1 (Screw size M3) |
DIN Track or screw
mounting |
![]() |
PYF14A-N | PYC-A1 *3 | ||
Push-In Plus Terminal
(Integrated Socket with release lever) |
DIN Track or screw
mounting *2 |
![]() |
PYF-14-PU | --- |
Number of Pins | Applicable Relay Model | Terminal Type | Appearance | Model | Hold-down Clips |
---|---|---|---|---|---|
8 | MY2[]-GS-R | PCB terminals | ![]() |
PY08-02 | PYC-P *1 |
14 | MY4[]-GS-R | PCB terminals | ![]() |
PY14-02 |
*1. If an MY[]IN Relay with a Latching Lever is used in combination with a PY@-02 Socket for Relays with PCB Terminals and a PYC-P Mounting Bracket, the lever will not operate.
Appearance *1 | Model | Weight *2 | Application |
---|---|---|---|
![]() |
PYC-A1 | Approx. 0.54 g | For joining the Socket and Relay |
![]() |
PYC-P | Approx. 1.4 g | For joining the Socket and Relay |
