Industrial PC Platform NY-series Industrial Monitor

NYM

Very stylish, very industrial

last update: January 14, 2025

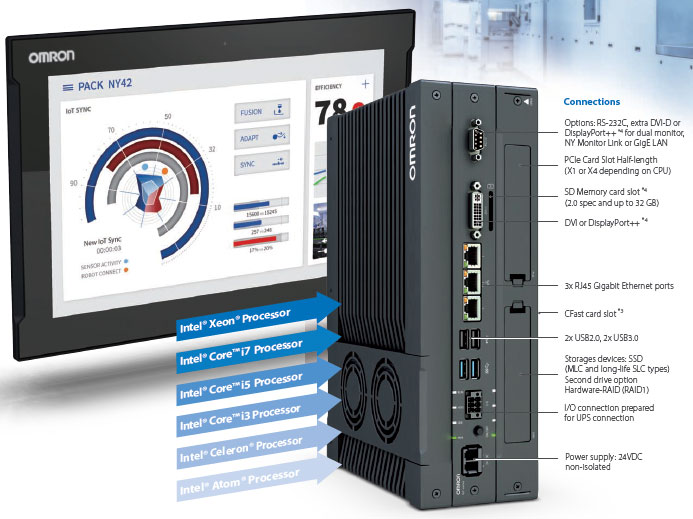

Industrial PC

Powerful. Tough. Future proof.

Powerful, reliable, scalable - and tough as they come

Our NY Industrial PC has been designed from first principles to be powerful, reliable and scalable, making it ideally suited to visualization, data handling, measuring and controlling. We’ve simplified the design and build to eliminate faults caused by complexity and, with other unique design features, to maximize uptime and reduce costs. The future will be IT driven: Omron’s IPC platform will make you part of it.

Performance

• Based on Intel® Atom®, Celeron®, Core™ i3, Core™ i5, Core™i7, Xeon® processors
• Up to 96 GB ECC(DDR4 SDRAM) supported
• Intel® Iris™ Pro Graphics or Intel® HD Graphics
• Unique heatsink effectiveness
• RoHS Directive (2002/95/EC), EU Directives, KC Registration, RCM, cULus

A few details…

• 12.1, 15.4 & 18.5 Inch industrial display
• Multi-touch, using the latest projected capacitive technology
• False touch detection
• Glove operation*1
• Easy built-in supportive mounting
• Unique customized logo

*1. When using gloves, ensure to use gloves that are functional with this touchscreen.
*2. Industrial Monitor won the iF Design Award 2016. The iF Product design Award, presented by Hannover-based
International Forum Design GmbH, is one of the world’s most prestigious design awards.
*3. An optional CFast Card slot is located at the rear side of the base layer.
*4. 11th generation CPU: Equipped with DisplayPort++ instead of DVI, but no SD Memory Card slot.

last update: January 14, 2025
