IoT Flow Sensors

E8FC

Detect signs of abnormalities in cooling water, water-soluble coolant, and water-insoluble oil by simultaneous measurement of “flow rate + temperature”

Sensors

Appearance Applicable Medium Control output Communication
method
IO-Link baud rate Model
3720_lu_1_1 Liquid PNP/NPN
selectable
IO-Link Analog COM2 E8FC-25SD
COM3 E8FC-25ST

Note: Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file).

Adapters

It must be selected from the adapters below.

Appearance Applicable diameter * Thread type Materials Model
Nominal
diameter A
Nominal
diameter B
3720_lu_2_1 10 A 3/8” R (taper thread) SUS304 E8FC-YA-R10A
NPT (taper thread) E8FC-YA-N10A
3720_lu_2_2 15 A 1/2” R (taper thread) E8FC-YA-R15A
NPT (taper thread) E8FC-YA-N15A
3720_lu_2_3 20 A 3/4” R (taper thread) E8FC-YA-R20A
NPT (taper thread) E8FC-YA-N20A
3720_lu_2_4 25 A 1” R (taper thread) E8FC-YA-R25A
NPT (taper thread) E8FC-YA-N25A

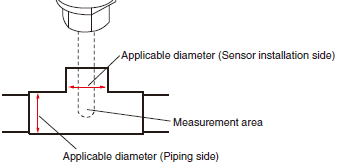

* It is recommended that the piping fitting diameters be theme on both the piping side and the sensor mounting side.
   Because the sensor is designed so that the measurement area is in the center of the piping, correct measurement
   may not be possible with different diameter fittings.
   Refer to Piping Method on Catalog for the recommended pipe joint.

E8FC Lineup 5

Cables (Sensor I/O Connectors)

A Cable is not provided with the Sensor. It must be ordered separately.

Type Appearance Cable Model
Socket on one
cable end
Straight
3720_lu_3_1
2 m XS5F-D421-D80-F
5 m XS5F-D421-G80-F
L-shaped
3720_lu_3_2
2 m XS5F-D422-D80-F
5 m XS5F-D422-G80-F
Socket and plug on
cable ends *
Straight/straight
3720_lu_3_3
2 m XS5W-D421-D81-F
5 m XS5W-D421-G81-F
L-shaped/L-shaped
3720_lu_3_4
2 m XS5W-D422-D81-F
5 m XS5W-D422-G81-F

Note: Refer to Sensor I/O Connectors/Sensor Controllers on OMRON website for details.
* Straight type/L-shape type combinations are also available.

O-ring (for replacement)

Appearance Type Model
3720_lu_4_1 For E8FC-25[][] E8FC-YL-1
