CK[]M-CPU1[]1

CK[]M-CPU1[]1

Programmable Multi-Axis Controller CK3M/CK5M CPU Unit

CK[]M-CPU1[]1

Multi-axis control with a fastest servo cycle time of 25 μs/5 axes enables precision machining

last update: February 1, 2023

(Unit: mm)

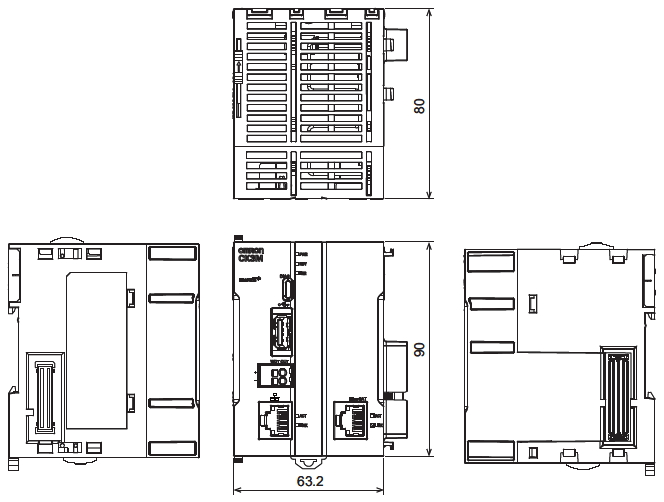

CPU Unit

CK[]M-CPU1[]1 Dimensions 1

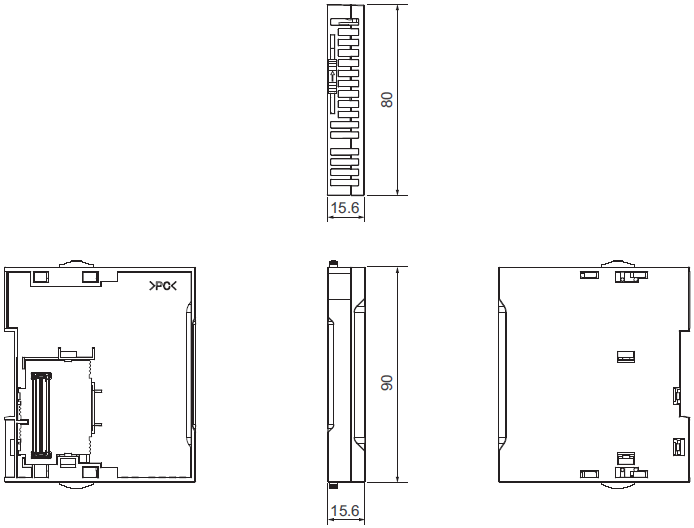

End Cover

CK[]M-CPU1[]1 Dimensions 2

Please click image to enlarge (open in a new window).

Power Supply Unit

CK[]M-CPU1[]1 Dimensions 3

Please click image to enlarge (open in a new window).

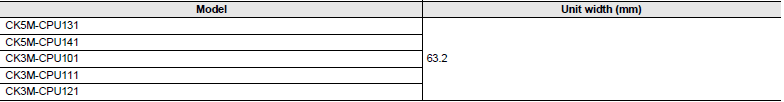

CPU Unit

CK[]M-CPU1[]1 Dimensions 4

Please click image to enlarge (open in a new window).

End Cover

CK[]M-CPU1[]1 Dimensions 5

Please click image to enlarge (open in a new window).

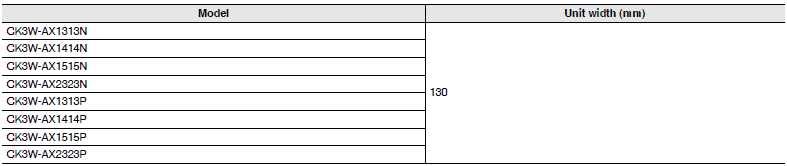

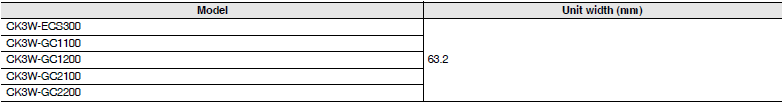

Axis Interface Unit

CK[]M-CPU1[]1 Dimensions 6

Please click image to enlarge (open in a new window).

Digital I/O Unit, Analog Input Unit, Expansion Master Unit, and Expansion Slave Unit

CK[]M-CPU1[]1 Dimensions 7

Please click image to enlarge (open in a new window).

Encoder Input Unit / Laser Interface Unit

CK[]M-CPU1[]1 Dimensions 8

Please click image to enlarge (open in a new window).

Expansion Master Unit and Expansion Slave Unit

CK[]M-CPU1[]1 Dimensions 9

Please click image to enlarge (open in a new window).

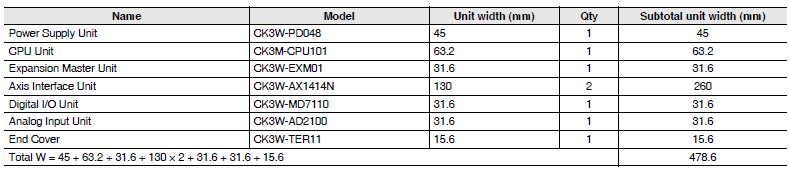

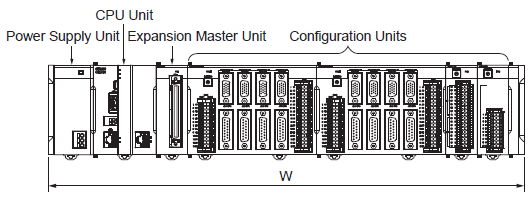

Design Example for Width W

CK[]M-CPU1[]1 Dimensions 10

CK[]M-CPU1[]1 Dimensions 11

Please click image to enlarge (open in a new window).

last update: February 1, 2023
