G7SA

(Unit: mm)

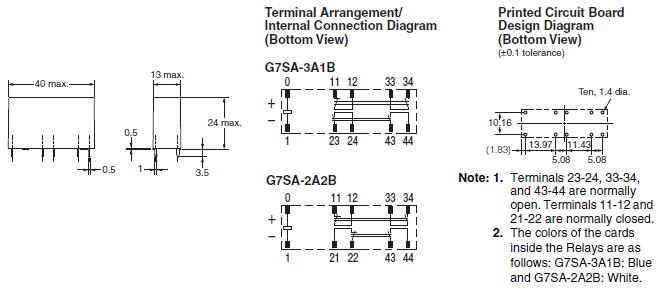

4 poles
G7SA-3A1B
G7SA-2A2B

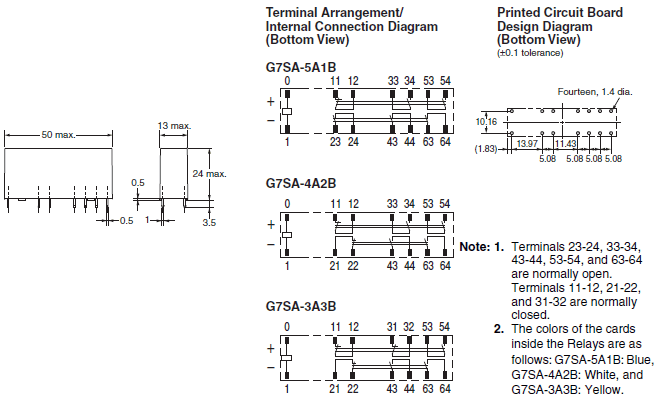

6 poles
G7SA-5A1B
G7SA-4A2B
G7SA-3A3B

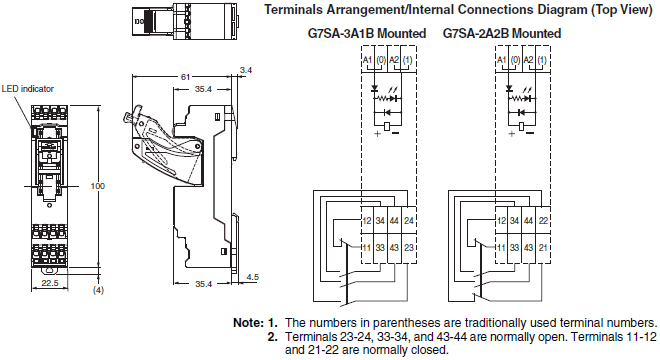

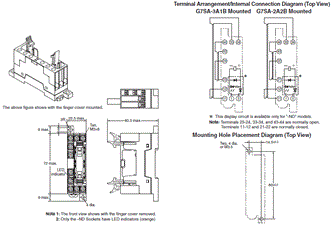

Push-In Plus terminals 4 poles
P7SA-10F-ND-PU

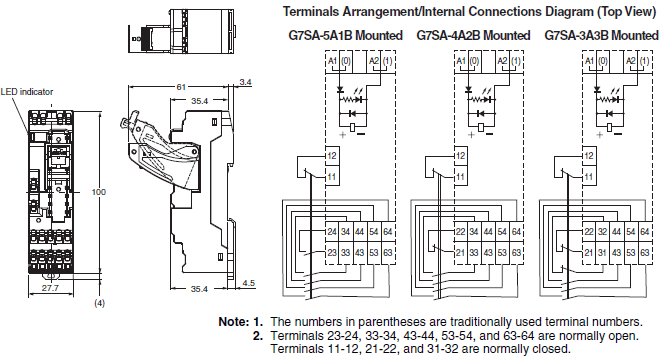

Push-In Plus terminals 6 poles

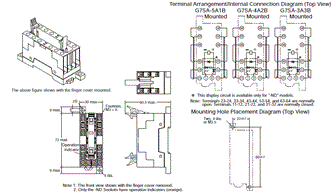

P7SA-14F-ND-PU

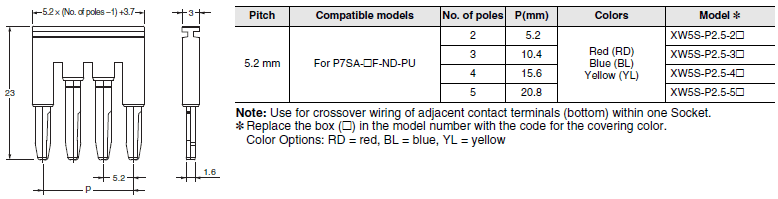

XW5S-P2.5-[][]

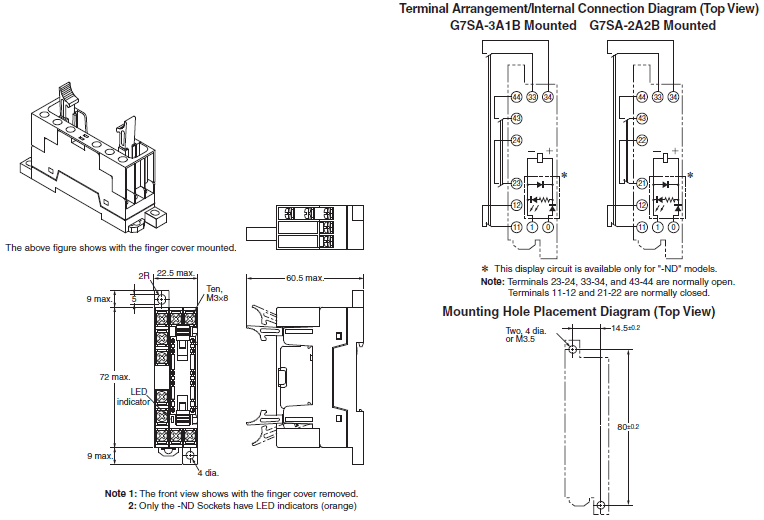

Screw terminals 4 poles

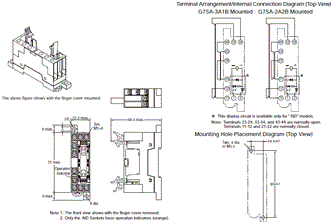

P7SA-10F, P7SA-10F-ND

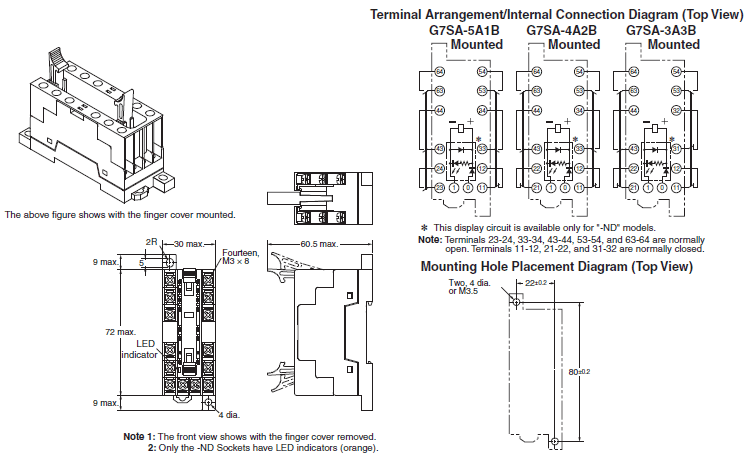

Screw terminals 6 poles
P7SA-14F, P7SA-14F-ND

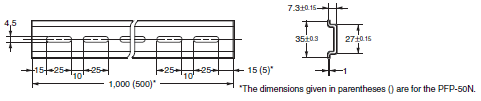

DIN Track
PFP-100N
PFP-50N

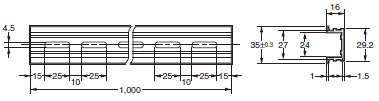

DIN Track
PFP-100N2

End Plate
PFP-M

Spacer
PFP-S

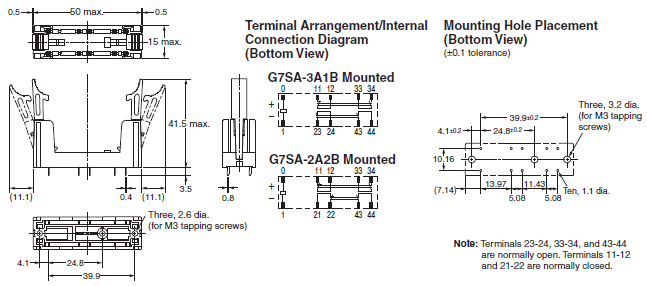

PCB terminals 4 poles
P7SA-10P

PCB terminals 6 poles

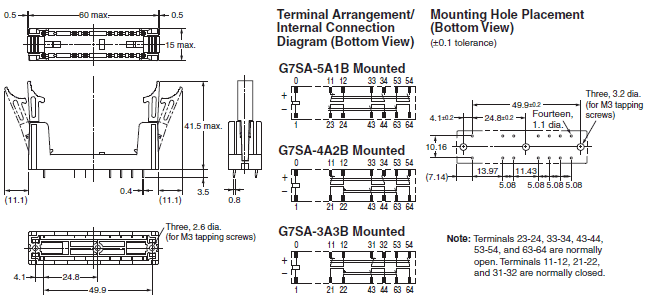

P7SA-14P
