ZP-L

ZP-L

Laser Displacement Sensor

ZP-L

Premium detection stability and optimal usability for Laser Displacement Sensors

last update: February 17, 2025

(Unit: mm)

Sensor Head

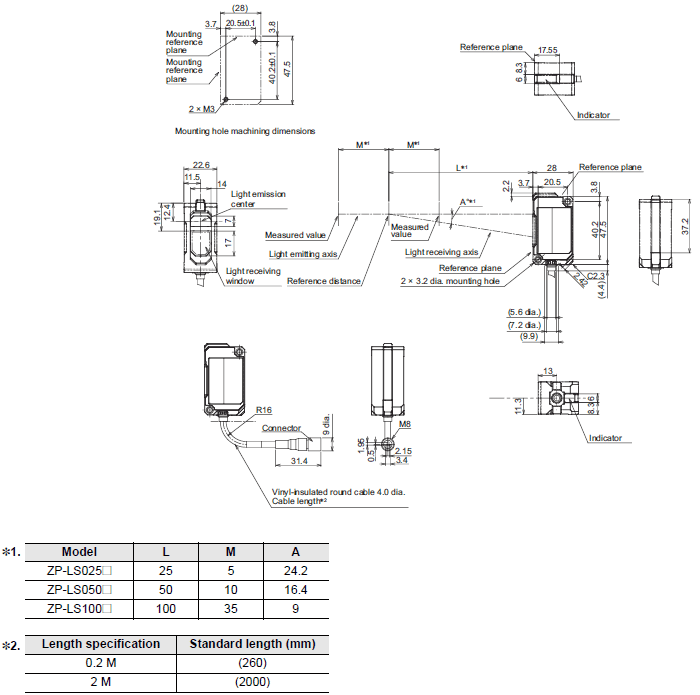

ZP-LS025[]
ZP-LS050[]
ZP-LS100[]

ZP-L Dimensions 2

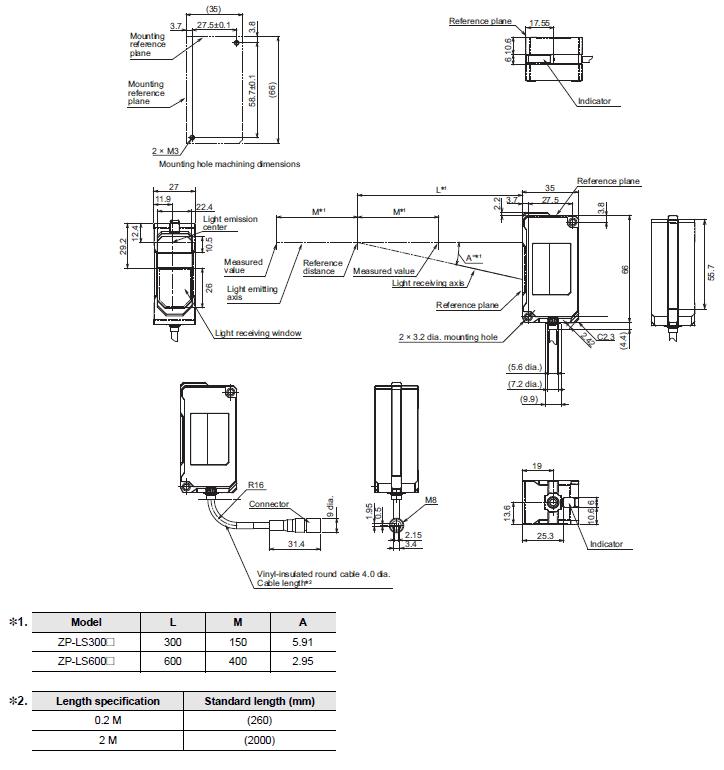

ZP-LS300[]
ZP-LS600[]

ZP-L Dimensions 3

Amplifier unit

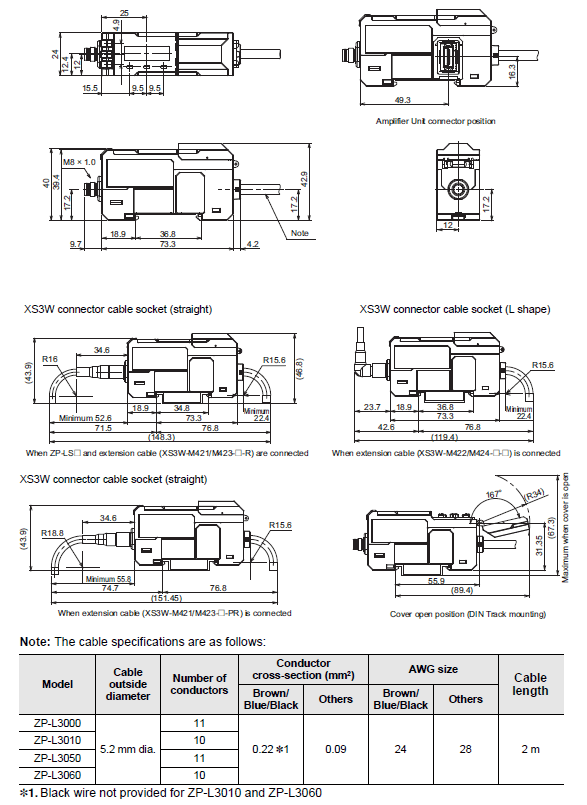

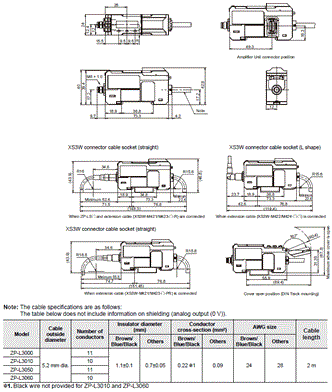

Master unit

ZP-L30[]0

ZP-L Dimensions 6

Slaver unit

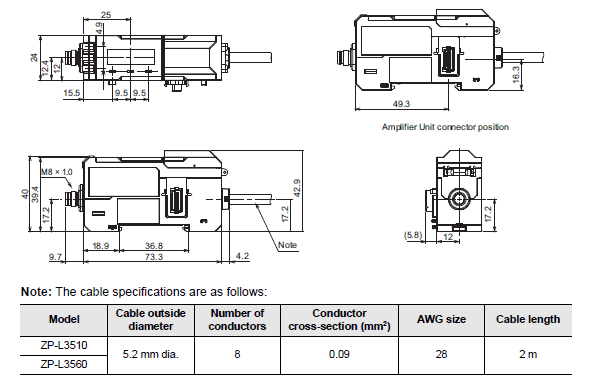

ZP-L3510
ZP-L3560

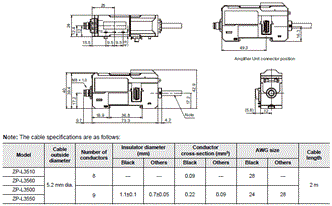

ZP-L Dimensions 8

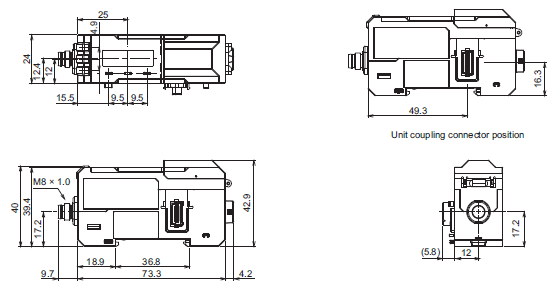

ZP-L3590

ZP-L Dimensions 9

Accessories (sold separately)

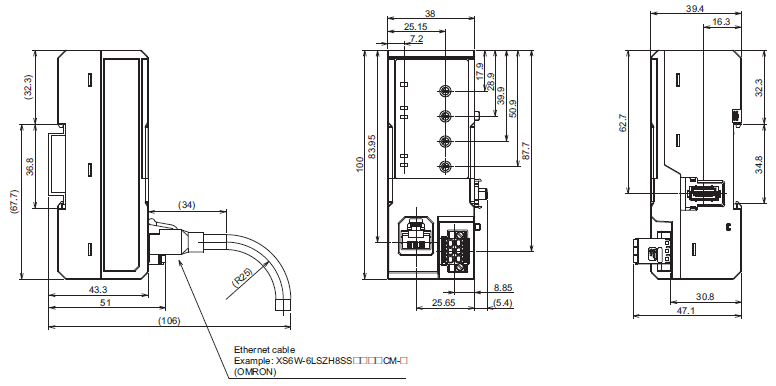

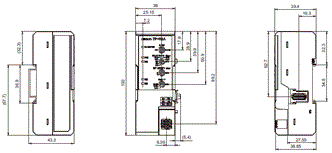

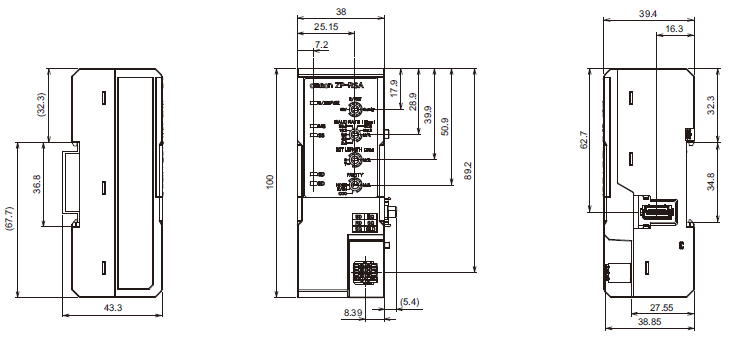

Communication Unit

ZP-EIP

ZP-L Dimensions 12

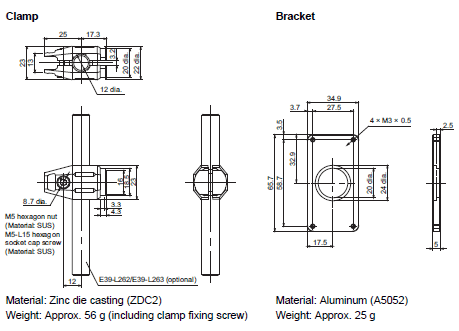

Mounting bracket

ZP-XL1

ZP-L Dimensions 14

ZP-XL2

ZP-L Dimensions 15

ZP-XL3

ZP-L Dimensions 16

ZP-XL4

ZP-L Dimensions 17

ZP-XL5

ZP-L Dimensions 18

ZP-XL6

ZP-L Dimensions 19

last update: February 17, 2025
