MY
Miniature Power Relays
Best-selling, general-purpose relays that can be selected based on operating environment and application
Related Contents
Application Solutions
last update: August 3, 2026
(Unit: mm)
MY Miniature Power Relays
Plug-in terminals
MY2, MY2N, MY2-D and MY2N-D2
MY2-CR, MY2N-CR
MY2Z, MY2ZN, MY2Z-D and MY2ZN-D2
MY2Z-CR, MY2ZN-CR
MY3, M Y3N, MY3-D, and MY3N-D2

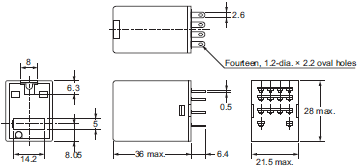

MY4, MY4N, MY4-D and MY4N-D2
MY4-CR, MY4N-CR
MY4Z, MY4ZN, MY4Z-D, MY4ZN-D2
MY4Z-CR, MY4ZN-CR
MY2IN(S)
MY2IN-D2(S)
MY(Z)IN(S)
MY4(Z)IN-D2(S)
MY4(Z)IN-CR(S)
MY4Z-CBG
MY4ZN-CBG
PCB terminals
MY2-02
MY4-02
MY4Z-02
The figure and outline drawing show MY4-02.
The 2-pole models conform to these dimensions.
PCB terminals
MY3-02
Case-surface mounting
MY2F
MY4F
MY4ZF
The above figure is for the MY4F.
The 2-pole models conform to these dimensions.
Case-surface mounting
MY3F
MYK Miniature Power Latching Relays
Plug-in terminals
MY2K
PCB terminals
MY2K-02
MYQ/MYH Miniature Power Sealed Relays
Plug-in terminals
Plastic Sealed Relays
MYQ4(Z)(N)
Hermetically Sealed Relays
MY4(Z)H
PCB terminals
Plastic Sealed Relays
MYQ4(Z)-02
Hermetically Sealed Relays
MY4(Z)H-0
Common Options (Order Separately)

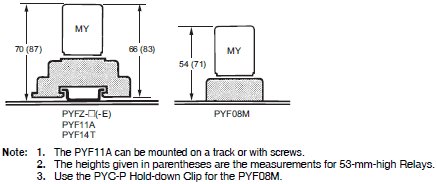

Height with Socket
Front-connecting Sockets
Push-In Plus Terminal (PYF-[]-PU)
Screwless terminal (PYF08S, PYF14S)
Screw terminal (PYFZ-[](-E), PYF11A, PYF14T, PYF08M)
Back-connecting Sockets
Solder terminals/wrapping terminals (PY[])
PCB terminals (PY[]-02)
Note: The heights given in parentheses are the measurements for 53-mm-high Relays.
Front-connecting Sockets
Push-In Plus Terminal

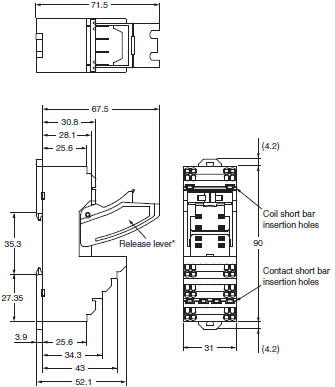

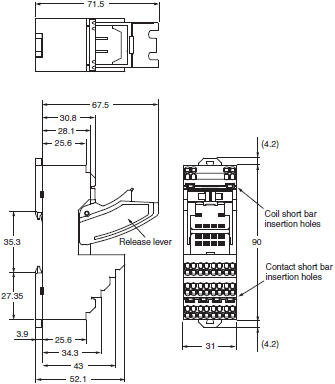

PYF-08-PU(-L)
* The PYF-08-PU-L Sockets do not have release levers.
PYF-14-PU(-L)
* The PYF-14-PU-L Sockets do not have release levers.
Screwless terminal

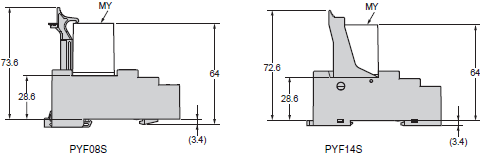

PYF08S
PYF14S
Front-connecting Sockets
Screw terminal
PYFZ-08
PYFZ-08-E (Finger-protection structure)
PYF08M
PYF11A
PYFZ-14
PYFZ-14-E (Finger-protection structure)
PYF14T
Back-connecting Socket
Solder terminals

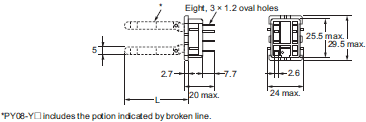

PY08
PY08-Y1 (L = 42 max.)
PY08-Y3 (L = 60 max.)
PY11

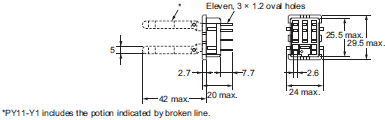

PY11-Y1
PY14

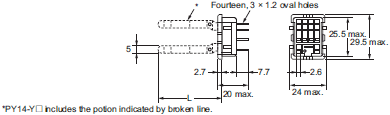

PY14-Y1 (L = 42 max.)
PY14-Y3 (L = 60 max.)
Wrapping terminals
PY08QN
PY08QN2
PY08QN-Y1
PY08QN2-Y1
PY11QN
PY11QN2
PY11QN-Y1
PY11QN2-Y1
PY14QN/PY14QN2
PY14QN-Y1 (L = 42 max.)
PY14QN2-Y1 (L = 42 max.)
PY14QN-Y3 (L = 60 max.)
PY14QN2-Y3 (L = 60 max.)
PCB terminals
PY08-02
• This is not a flux-tight structure. We recommend manual soldering for this product.
PY11-02
• This is not a flux-tight structure. We recommend manual soldering for this product.
PY14-02
• This is not a flux-tight structure. We recommend manual soldering for this product.
Socket Accessories
Hold-down Clip
PYC-A1 1 set (2 pcs.)
PYC-E1 1 set (2 pcs.)
PYC-P
PYC-S 1 set (2 pcs.)
Y92H-3 1 set (2 pcs.)
PYC-1
Socket Mounting Plates
PYP-1
PYP-18
PYP-36
Accessories for DIN Track Mounting
DIN Tracks

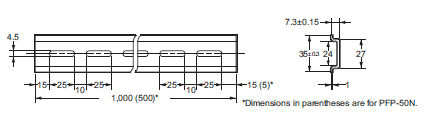

PFP-100N
PFP-50N
End Plate
PFP-M
Spacer
PFP-S
