K6CM

Motor Condition Monitoring Device

K6CM

Quantifying the status of a three-phase induction motor.

(Unit: mm)

K6CM-CIM

List of Models

K6CM-[][]M

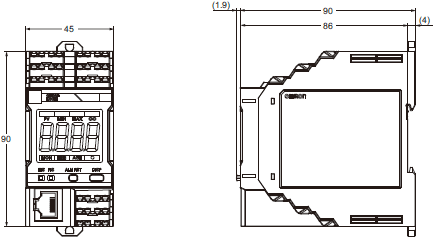

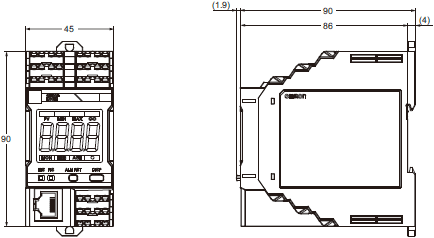

K6CM Dimensions 3

CT

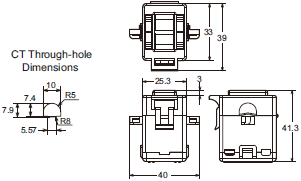

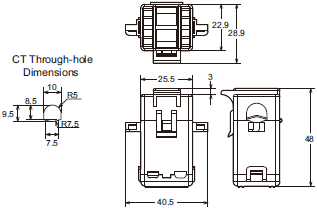

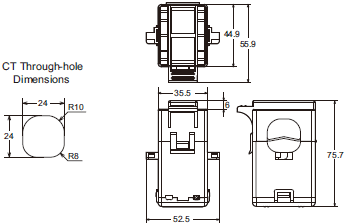

K6CM-CICB005

K6CM Dimensions 5

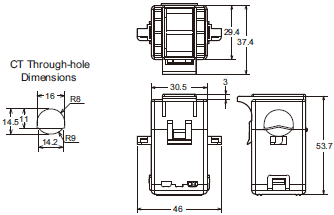

K6CM-CICB025

K6CM Dimensions 6

K6CM-CICB100

K6CM Dimensions 7

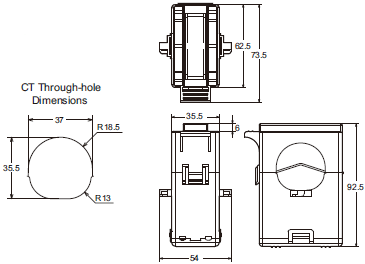

K6CM-CICB200

K6CM Dimensions 8

K6CM-CICB400
K6CM-CICB600

K6CM Dimensions 9

Cable supplied with CT

K6CM Dimensions 10

The cable supplied with the CT is shipped in the connected state.

K6CM-VBM

List of Models

K6CM-[][]M

K6CM Dimensions 13

Vibration & temperature sensor

K6CM-VBS1

Pre-amplifier

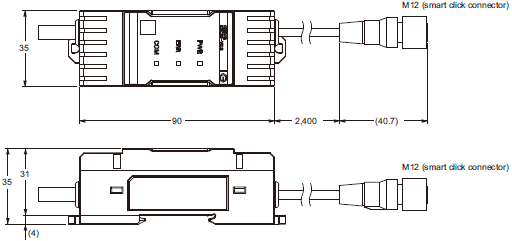

K6CM Dimensions 16

Sensor head

K6CM Dimensions 17

K6CM-VBSAT1

Adhesive attachment
Use the adhesive attachment if the motor cannot be tapped.

Sensor head

K6CM Dimensions 19

Material: Stainless steel

How to Attach the Sensor Head
Prepare a flat surface with a radius of at least 25 mm on the motor outer casing (*).
Attach the attachment to the flat surface you prepared with an adhesive.
Screw the vibration sensor head into the attachment.
* The position above the bearing on the load side is recommended.

K6CM-ISM

List of Models

K6CM-[][]M

K6CM Dimensions 22

ZCT (IRT)

Indoor split type
K6CM-ISZBI52

K6CM Dimensions 24
