F440-F

(Unit: mm)

F440-F C-Mount Smart Camera

¼-20 Camera Mounting Block Kit
V440-AM0

Smart Series R-70 Ring Light to F440-F Mounting Bracket Kit
V440-AM1

Smart Series R-100 Ring Light to F440-F Mounting Bracket Kit
V440-AM2

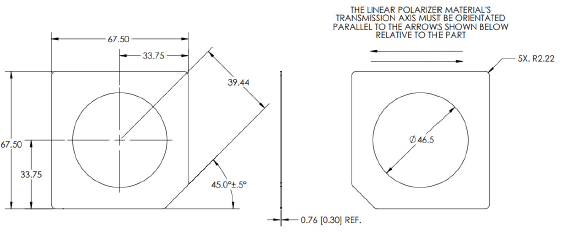

Smart Series R-70 Ring Light Polarizer Kit
98-9000301-01

Smart Series R-100 Ring Light Polarizer Kit
98-9000302-01

QX-1 Photo Sensor, M12 4-Pin Plug, NPN – 2 Meters – Light ON / Dark ON
99-9000016-01

QX-1 Interconnect Module – Power, Trigger, Smart Light Control Breakout
98-000103-02

QX-1 Field-Wireable M12 4-Pin Plug for Any Trigger Source or Photo Sensor – Screw Terminals
98-9000239-01

Power Supply, 100-240VAC, +24VDC, M12 12-Pin Socket – 1 Meter – U.S. / Euro Plug
97-000012-01

Single Port PoE Injector, 30W, IEEE802.3at Compliant, 2 x RJ45 Connector, 90 to 264VAC (Coming Soon)
98-9000311-01

Important: Power cord NOT included. (C13 connector required.)

Omron Microscan Smart Light Series – Integrated Power and Strobe Control Module
See Omron Microscan Smart Light Offering – Ring, DOAL, Large Area Lighting

Camera to QX-1 Interconnect Cables – 1 Meter, 3 Meters, or 5 Meters
M12 Socket to M12 Plug
QX-1 is used as breakout module for common IO signals and power.
V430-WQ-1M
V430-WQ-3M
V430-WQ-5M

M12 Socket to M12 Plug, with Power Filter – 300 mm
V430-WQF-1M

QX-1 M12 to Smart Light Power and Strobe Control Cables – 3 Meters
M12 Plug on QX-1 to 5 Pin Socket on Light
61-000204-01 (Continuous Power)
61-000218-01 (Strobe Control)

Y Cable, Camera/Power and Smart Light Power (Continuous On) – 1 Meter
61-9000135-01
Y Cable, Camera/Power and Smart Light Strobe Control – 1 Meter
61-9000137-01

M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB – 3 Meters or 5 Meters
V430-W8-3M
V430-W8-5M

M12 to Flying Leads Cable, with Power Filter – 3 Meters or 5 Meters
V430-W8F-3M
V430-W8F-5M

M12 to RS-232 Breakout – 1 Meter or 3 Meters
V430-WR-1M
V430-WR-3M

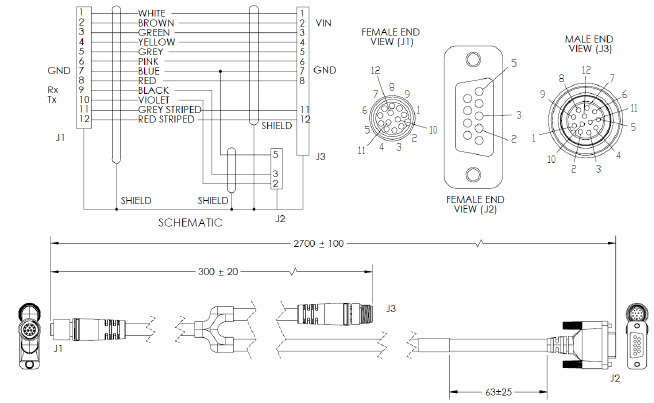

Camera to QX-1 Interconnect Cables with RS-232 Breakout – 2.7 Meters
V430-WQR-3M

Camera to QX-1 Interconnect Cables with USB Keyboard Wedge Breakout – 2.7 Meters
V430-WQK-3M

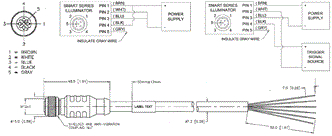

Smart Series Light Cable 5 Pin M12 Female to Flying Leads, 3 Meters and 5 Meters
61-000186-01
61-000187-01

Omron S8VK-C06024 Power Supply

Spot Light Extension Cable, Flying Leads, 5M

Kit, Spot Light, Blue, Telecentric Lens with Flying Leads Extension Cable
98-9000304-01

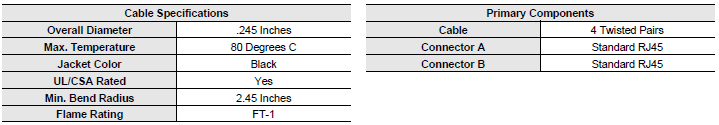

Industrial High-Flex Ethernet Cables with Jack Screws and RJ45, 2 Meters, 5 Meters, and 7 Meters
98-000133-01
98-000134-01
98-000134-02

Industrial High-Flex cables provide an interface between F440-F cameras and other devices.

These cables are designed for harsh environments that could damage a traditional CAT 5 cable.
The overmold design provides increased strain relief. Thumbscrew locking keeps the connection
secure despite shock and vibration. The double-shielded design provides extra protection in
industrial applications.

High-Flex cables are designed to withstand 12 million+ flex cycles. The TPE jacket provides
 additional protection from elements such as oil, water, and abrasion.
