E39-L93[] / L150 / L151 / L98
Sensor Adjuster, Cover Fittings
![E39-L93[] / L150 / L151 / L98](/Images/l_430-21-118720-198x198.jpg)
Easy to Adjust for the Required Application with a Broad Range of Variations
Related Contents
last update: October 12, 2012
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
E39-L98
![E39-L93[] / L150 / L151 / L98 Dimensions 2](/Images/430_dm_121-119194.gif)
Material: Stainless steel (SUS304)

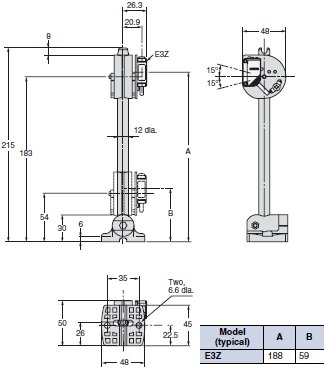

E39-L93FH
![E39-L93[] / L150 / L151 / L98 Dimensions 3](/Images/430_dm_221-119195.gif)

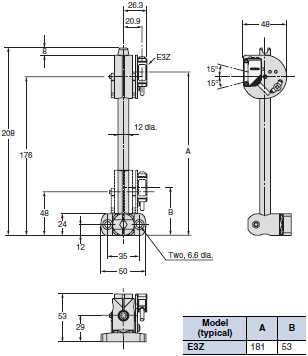

E39-L93FV
![E39-L93[] / L150 / L151 / L98 Dimensions 4](/Images/430_dm_321-112461.gif)

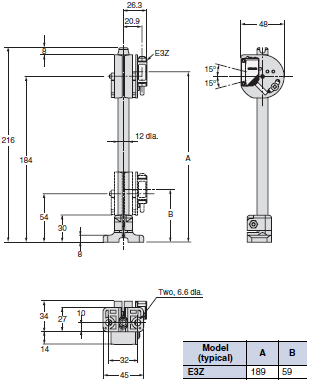

E39-L93H
![E39-L93[] / L150 / L151 / L98 Dimensions 5](/Images/430_dm_421-112463.gif)

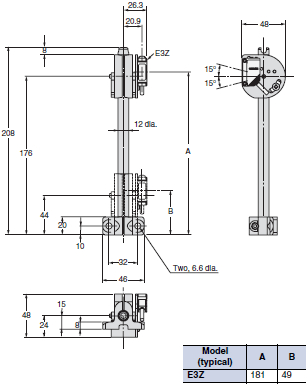

E39-L93V
![E39-L93[] / L150 / L151 / L98 Dimensions 6](/Images/430_dm_521-112465.gif)

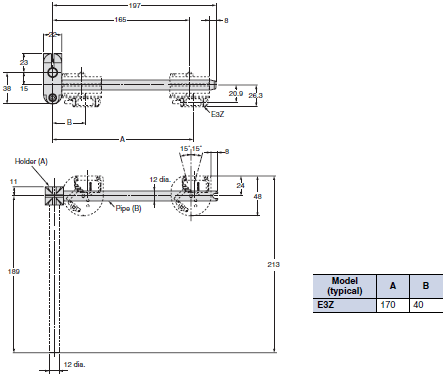

E39-L93XY
![E39-L93[] / L150 / L151 / L98 Dimensions 7](/Images/430_dm_621-112467.gif)
Note: The E39-L93XY consists of only the one joint holder (A) and pipe (B), and the two hexagonal bolts and nuts. It
cannot be mounted to the Sensor alone.
cannot be mounted to the Sensor alone.
E3Z + E39-L93[]
![E39-L93[] / L150 / L151 / L98 Dimensions 8](/Images/430_dm_721-119196.gif)
E39-R1 (Reflector) + E39-L93[]
![E39-L93[] / L150 / L151 / L98 Dimensions 9](/Images/430_dm_821-119198.gif)
Note: E39-L96 required.
E39-R3 (Reflector) + E39-L93[]
![E39-L93[] / L150 / L151 / L98 Dimensions 10](/Images/430_dm_921-119199.gif)

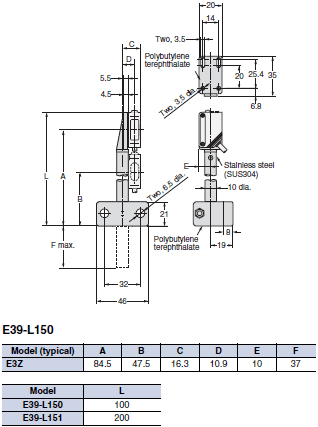

E39-L150
E39-L151
![E39-L93[] / L150 / L151 / L98 Dimensions 11](/Images/430_dm_1021-119197.gif)
last update: October 12, 2012
