K8AB Series

Measuring and Monitoring Relays

K8AB Series

Eight slim models featuring a variety of innovative new functions

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: August 20, 2013

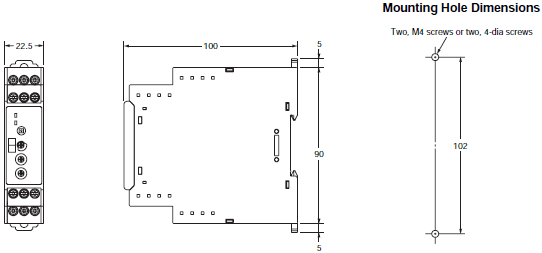

(Unit: mm)

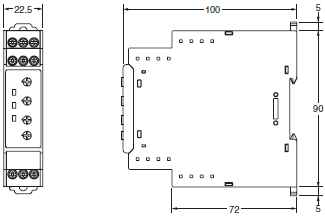

K8AB-AS
Single-phase Current Relay

K8AB-AS1
K8AB-AS2
K8AB-AS3

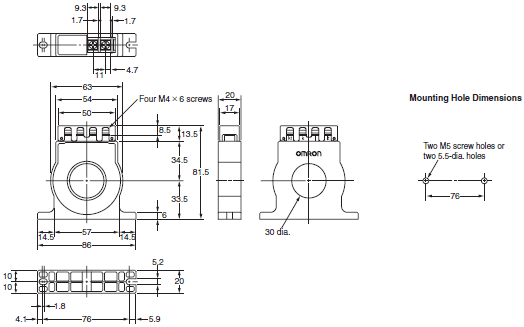

OMRON CT
K8AC-CT200L

Note: The OMRON Current Transformer (CT) is designed to be used with the K8AB-AS3.
Use terminals k and l for connections. (Terminals kt and lt are not used.)
