H8PS

Cam Positioner

H8PS

This Compact Cam Positioner, Popular for Its Ease-of-use, Now Comes with Even Better Functions.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: March 10, 2015

(Unit: mm)

Main Unit

Cam Positioners

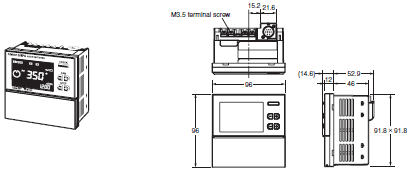

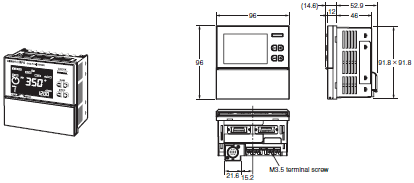

Flush Mounting Models

H8PS-8B[] (8-output Models)

H8PS-16B[] (16-output Models)
H8PS-32B[] (32-output Models)

Panel Cutout (according to DIN 43700)

Note: Mounting panel thickness must be 1 to 5 mm.

Flush mounting

Note: An 8-output Model is shown in the above diagrams. The Encoder is connected from the bottom with 16-/32-output
Models.

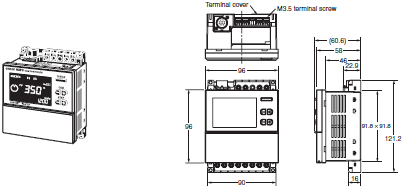

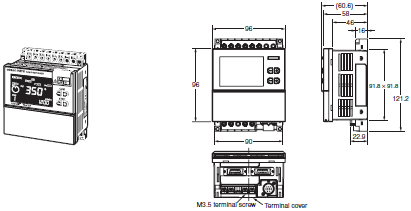

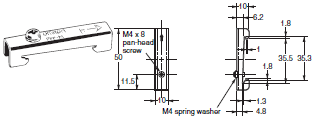

Surface Mounting Models

H8PS-8BF[] (8-output Models)

H8PS-16BF[] (16-output Models)
H8PS-32BF[] (32-output Models)

Mounting holes

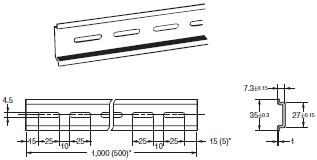

Note: 1. These dimensions vary with the kind of DIN track (reference value).
2. An 8-output Model is shown in the above diagrams. The Encoder is connected from the bottom with 16-/32-
output Models.

Accessories (Order Separately)

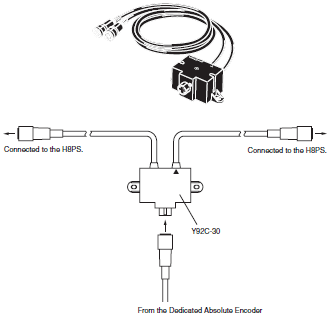

Parallel Input Adapters

Y92C-30

This Adapter enables two H8PS Cam Positioners to share signals from an Encoder.
Note: H8PS has been improved in 2004 April.
Do not mix old and new model with Y92C-30.
When you use 2 x H8PS, please use by "Old & Old" or "New & New" models.

Use the cable marked with a triangle when connecting only one H8PS Cam Positioner to the Parallel Input Adapter.

Panel Surface Mounting

Panel Back Mounting

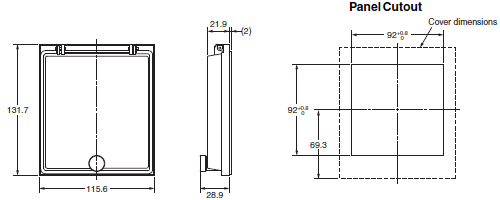

Watertight Cover

Y92A-96N

Use for flush mounting when waterproofing is required. The Y96A-96N conforms to IP66 and NEMA4 (for indoor use) standards for waterproofing.
The operating environment may cause the waterproof packing to deteriorate, shrink, or harden.
Therefore, it is recommended that the packing be replaced regularly.
