Discontinued On Sep. 2023

D6FZ-FGT Series

Air Flow Sensor

D6FZ-FGT Series

The best Product to Measure Compressed Air at Machine. Measurement of Leakage and Usage.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Easy to see

11 segment 8 digit LCD display

The characters are easy to recognize, and integrated flow rate can be checked with one glance.

D6FZ-FGT Series Features 2

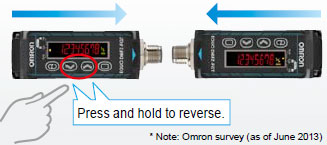

Reversing the display

You can reverse the display direction to match the installation direction.
Always use one of the specified installation directions.

D6FZ-FGT Series Features 3

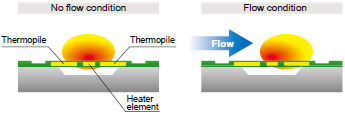

High accuracy

High accuracy flow measurement

Using Omron's MEMS chip, the highest accuracy in the industry* of ±2% F.S. (50L/min≦) is achieved.
* Note: Omron survey (as of June 2013)

D6FZ-FGT Series Features 5

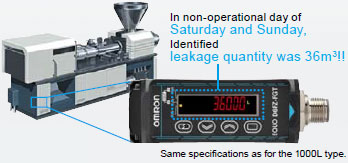

Leakage measurement

At a low flow rate (<50L/min), ±0.5% F.S. high accuracy measurement is achieved.
Air flow (money amount) that is discarded as leakage when machines are in non-operational time can be identified.

D6FZ-FGT Series Features 6

Zero reset

Using the zero reset, seasonal or day/night variation in the flow rate can be identified.

D6FZ-FGT Series Features 7

Other Features

Flow straightener Honeycomb structure

Honeycomb structure with a high performance of flow straightening keep pressure loss low.

D6FZ-FGT Series Features 9

Main functions

•Analog output (1 output)
•Pulse output (2 outputs)
•RS-485 communications
•Threshold value (peak/bottom/leak)
•Peak//Bottom hold
•Key lock

Functional comparison

D6FZ-FGT Series Features 11
