Industrial Automation
Discontinued On Jan. 2023
F3SG-R Series
Safety Light Curtain
Offers Both Durability and Reliability
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
F3SG-RA Advanced typelast update: December 9, 2021
(Unit: mm)
F3SG-RA Advanced type

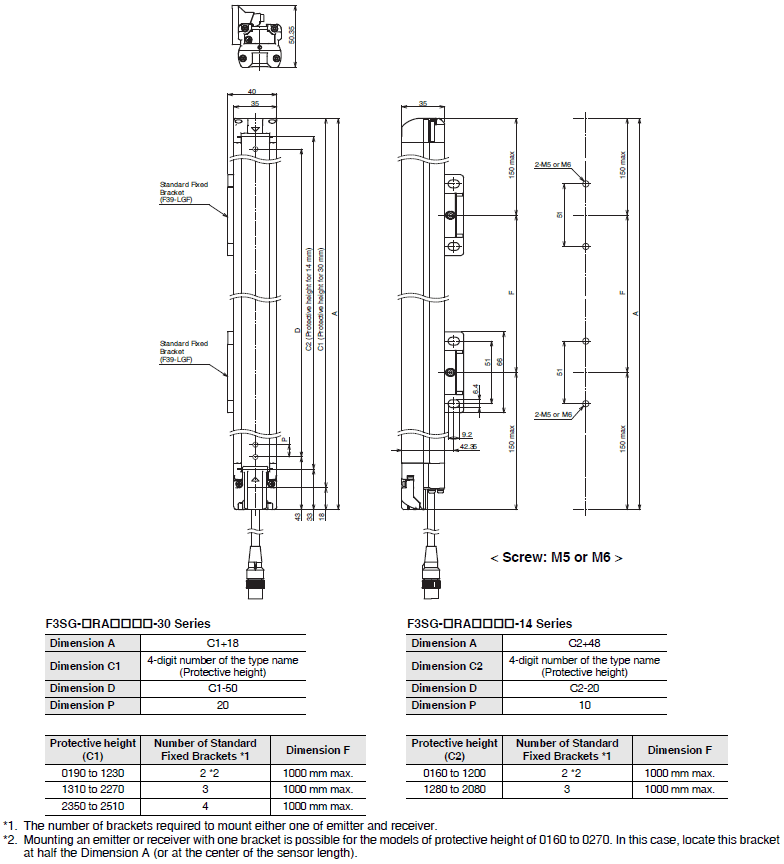

Mounted with Standard Fixed Brackets (F39-LGF)
Backside Mounting
Side Mounting

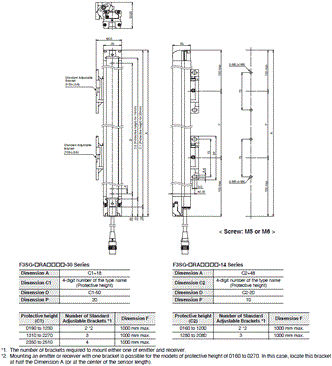

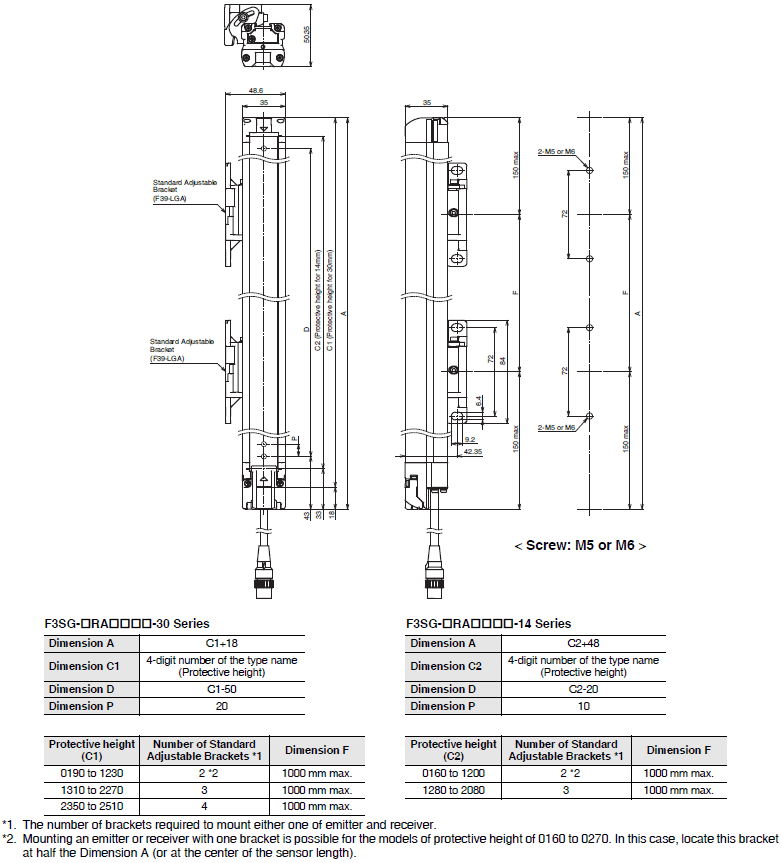

Mounted with Standard Adjustable Brackets (F39-LGA)
Backside Mounting
Side Mounting

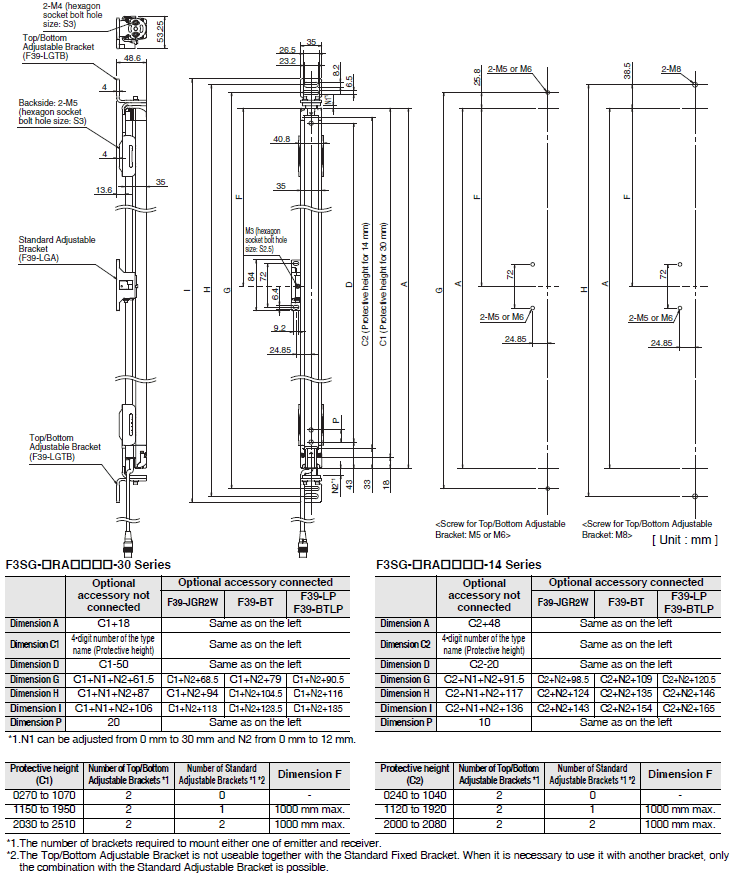

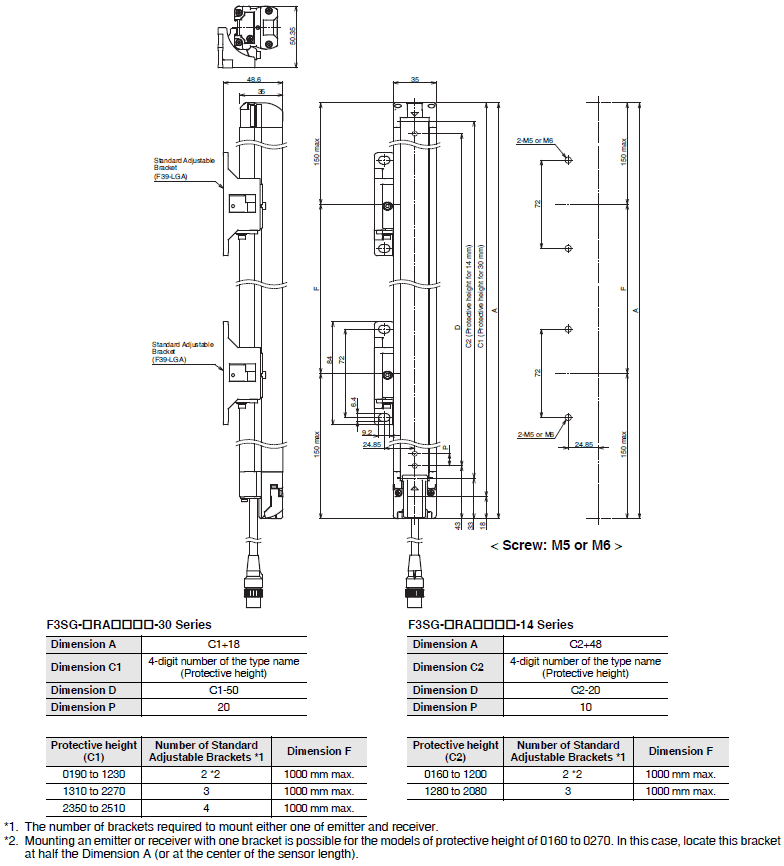

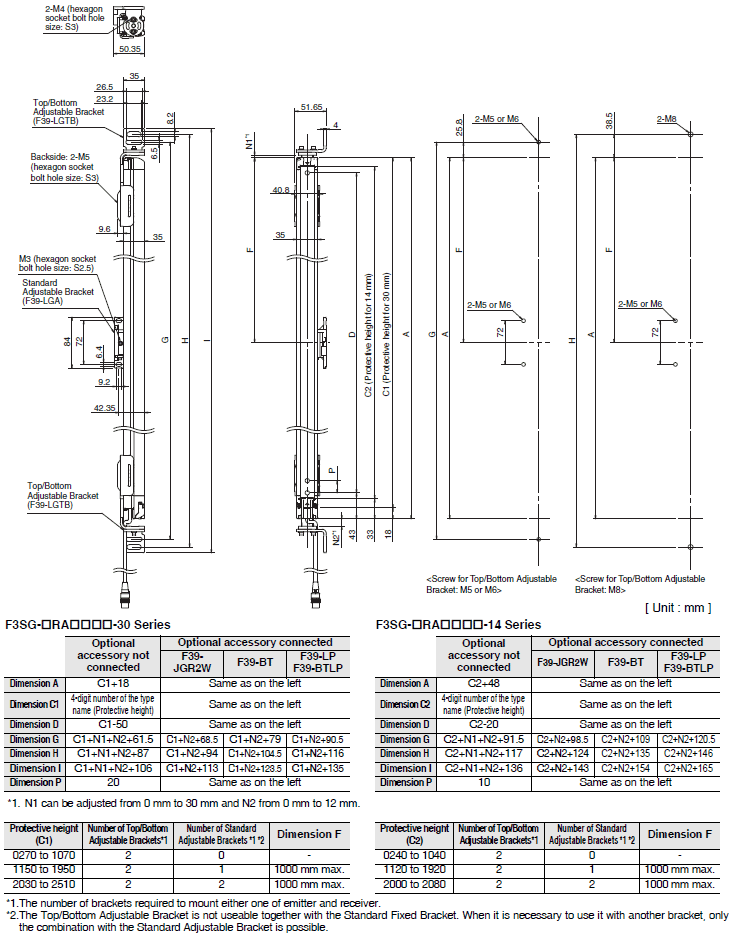

Mounted with Top/Bottom Adjustable Brackets (F39-LGTB) and Standard Adjustable Brackets (F39-LGA)
Dimensions when using the F3SG-RA Series except the F3SG-4RA0190-30 and F3SG-4RA0160-14
Refer to Safety Light Curtain F3SG-R Series User's Manual for the dimensions when using the F3SG-4RA0190-30 and F3SG-4RA0160-14.
Backside Mounting
Side Mounting
Accessories
Sensor Mounting Brackets

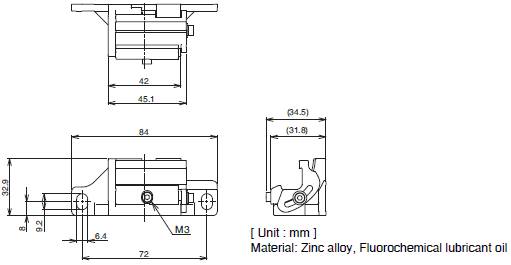

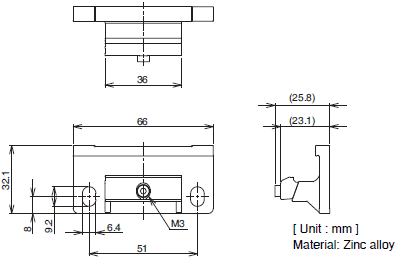

Standard Fixed Bracket (F39-LGF)

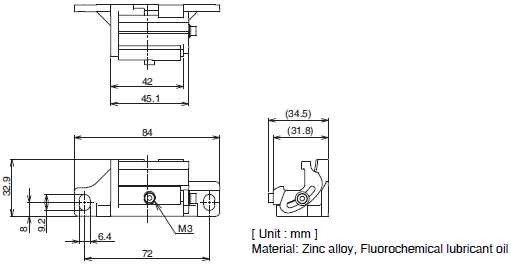

Standard Adjustable Bracket (F39-LGA, sold separately)
Top/Bottom Adjustable Bracket (F39-LGTB, sold separately)
Safety light curtain connecting cable

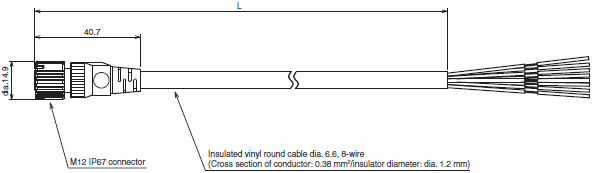

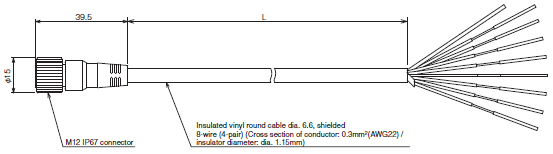

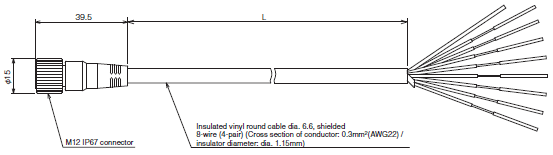

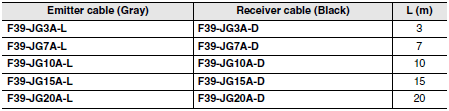

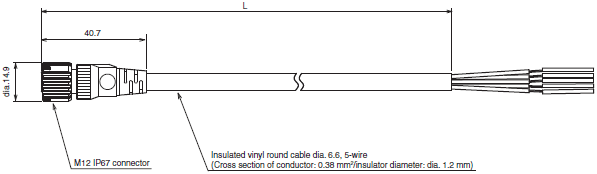

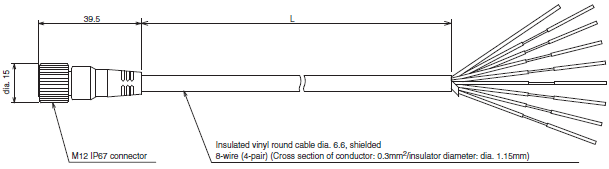

Single-Ended Cable for Emitter (F39-JG[]A-L, sold separately)
Single-Ended Cable for Receiver (F39-JG[]A-D, sold separately)

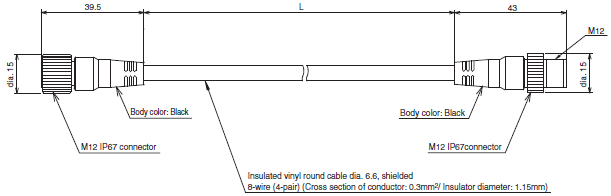

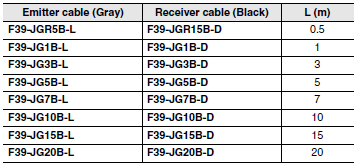

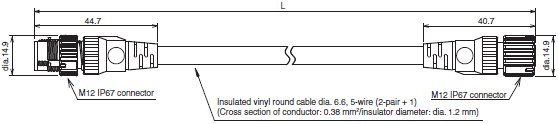

Double-Ended Cable for Emitter: Cable for extension (F39-JG[]B-L, sold separately)
Double-Ended Cable for Receiver: Cable for extension (F39-JG[]B-D, sold separately)

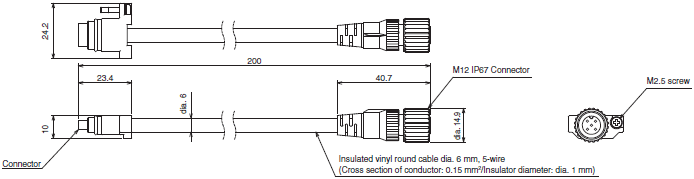

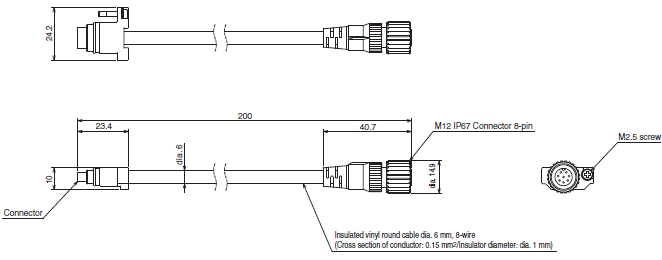

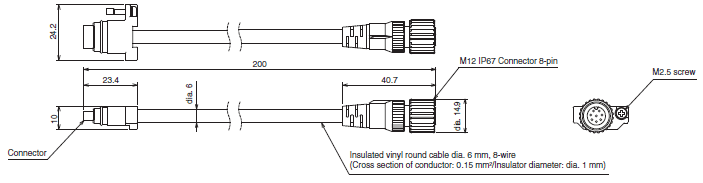

Cascading Cable for Emitter (F39-JGR2W-L, sold separately)
Cascading Cable for Receiver (F39-JGR2W-D, sold separately)

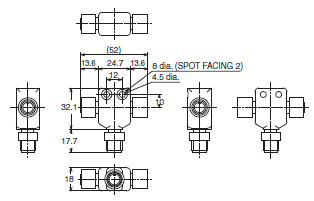

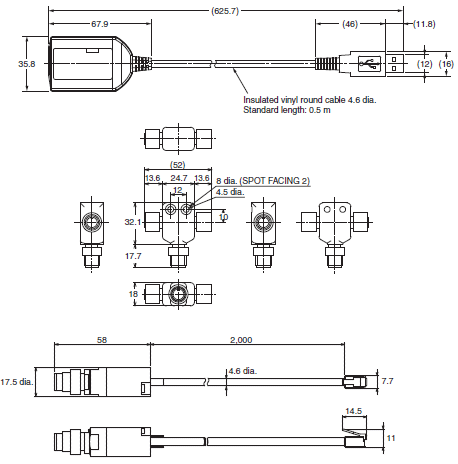

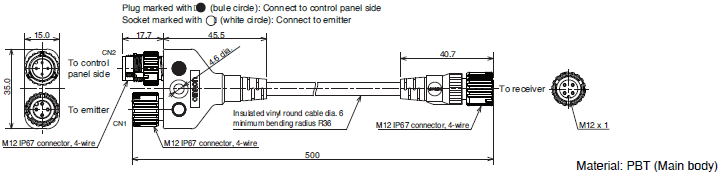

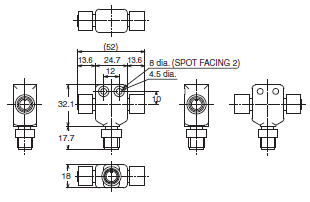

Y-Joint Plug/Socket Connector (F39-GCNY2, sold separately)

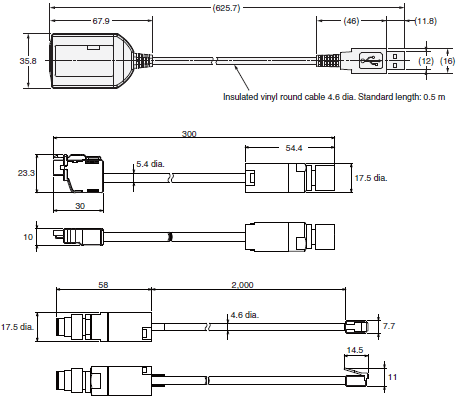

Interface Unit (F39-GIF, sold separately)

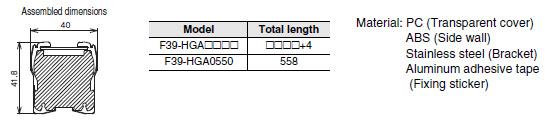

Spatter Protection Cover (F39-HGA, sold separately)

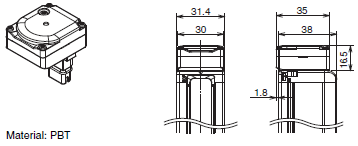

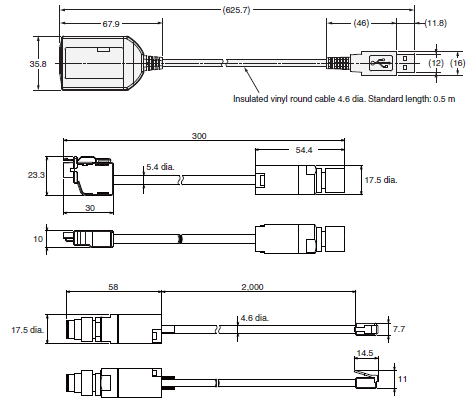

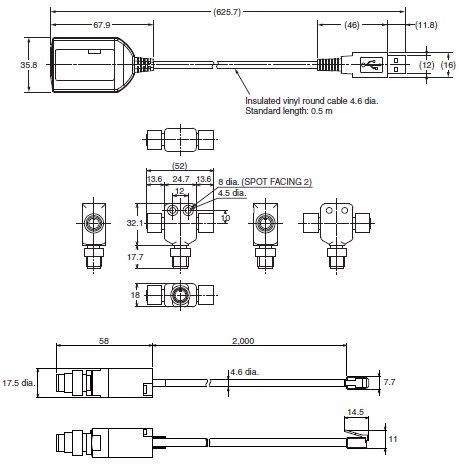

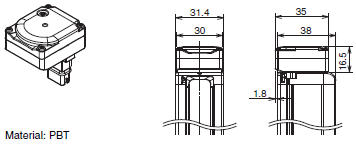

Bluetooth Communication Unit (F39-BT, sold separately)

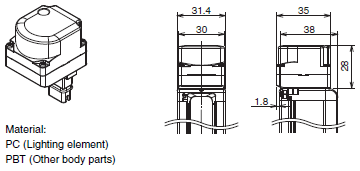

Lamp and Bluetooth Communication Unit(F39-BTLP, sold separately)

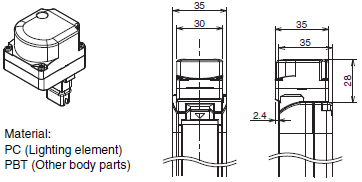

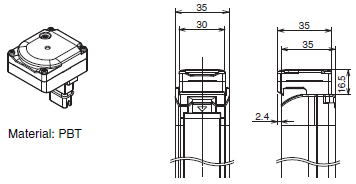

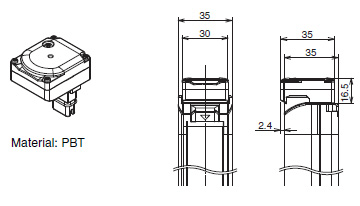

Lamp (F39-LP, sold separately)
F3SG-RR Robust type

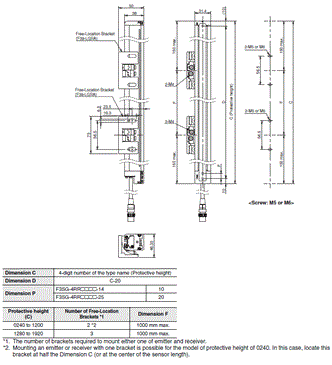

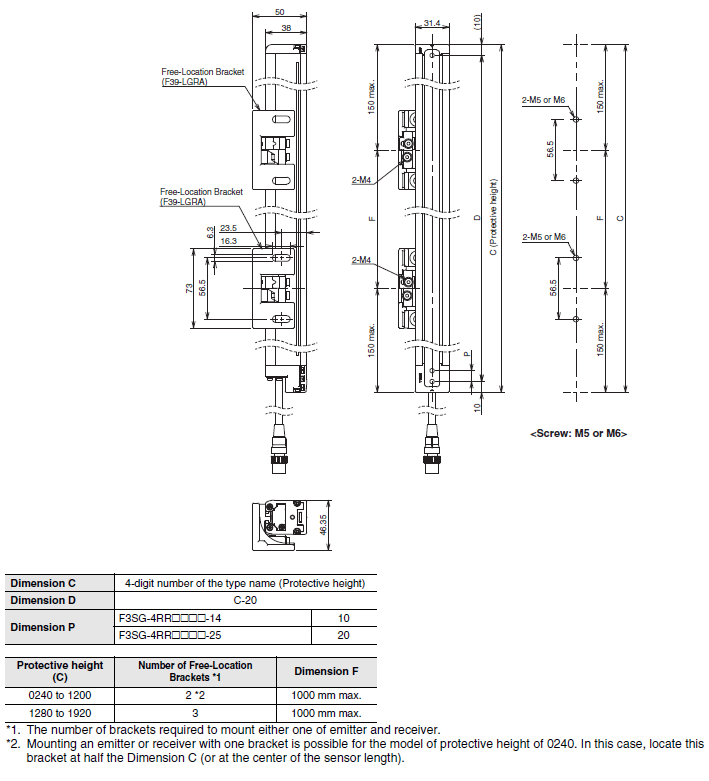

Mounted with Free-Location Brackets (F39-LGRA)
Backside Mounting
Side Mounting

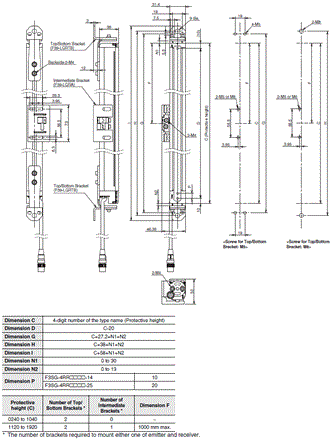

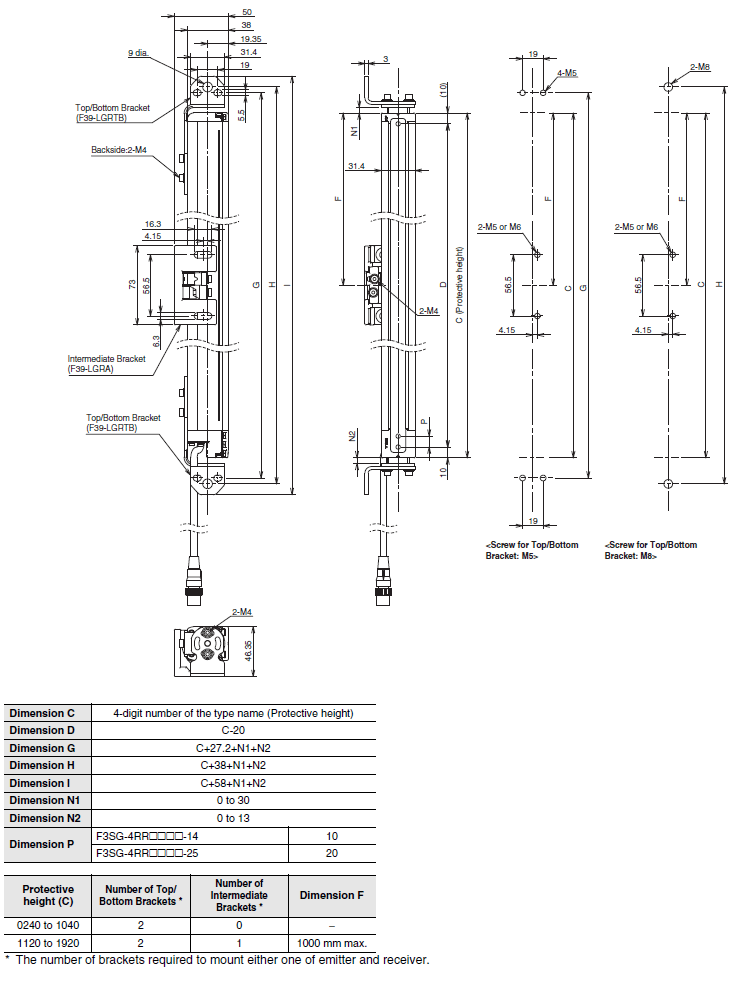

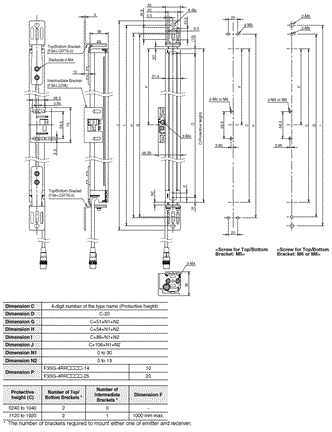

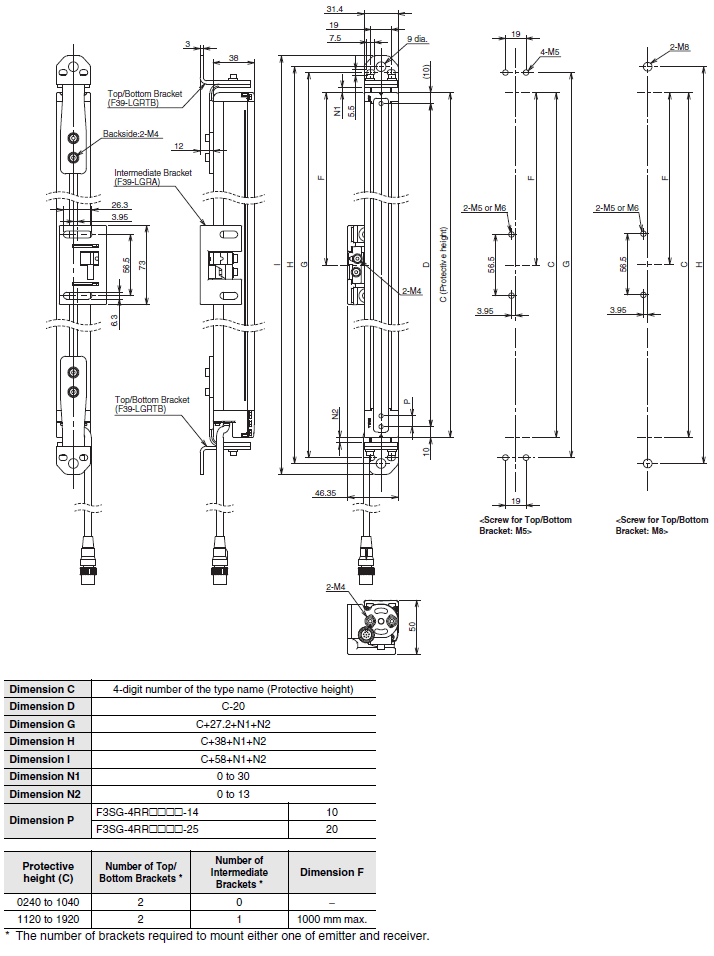

Mounted with Top/Bottom Brackets (F39-LGRTB) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting

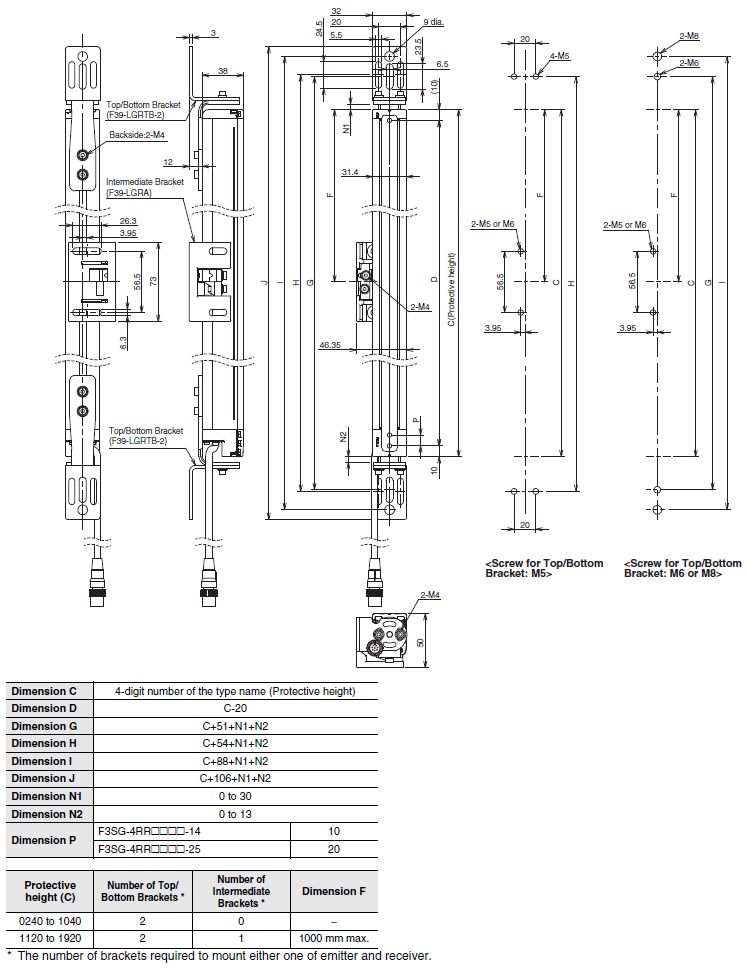

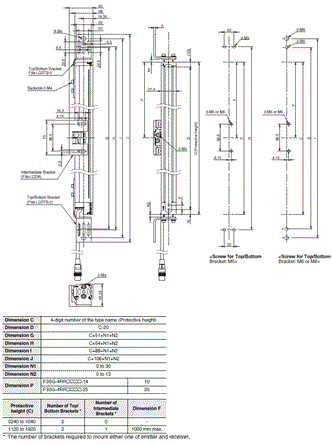

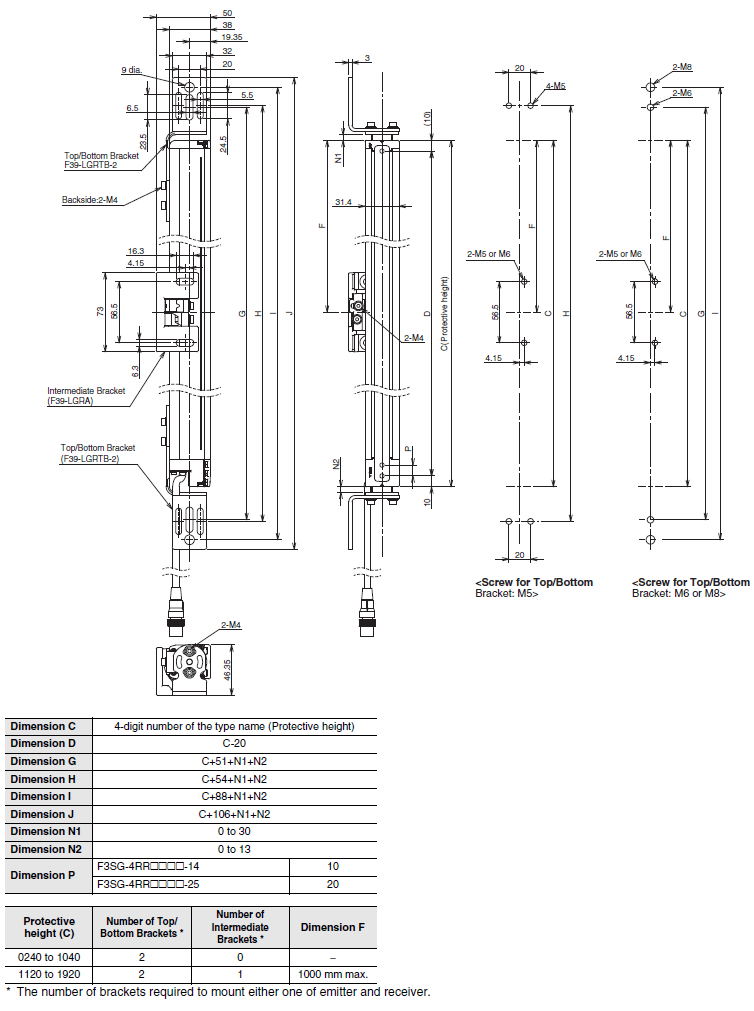

Mounted with Top/Bottom Brackets (F39-LGRTB-2) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting

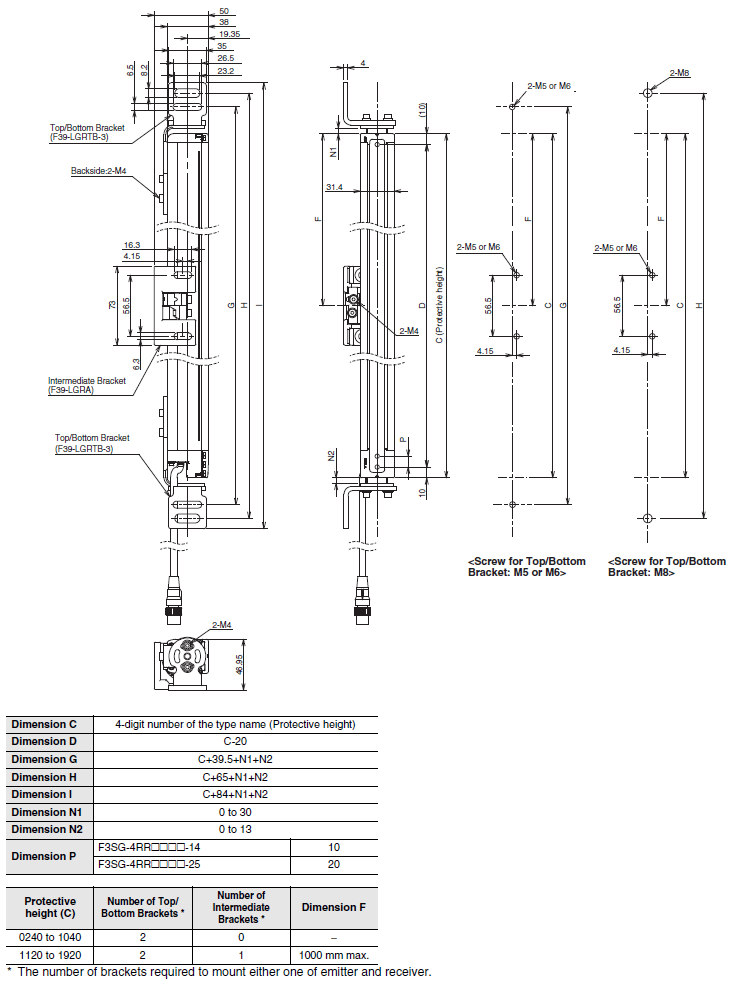

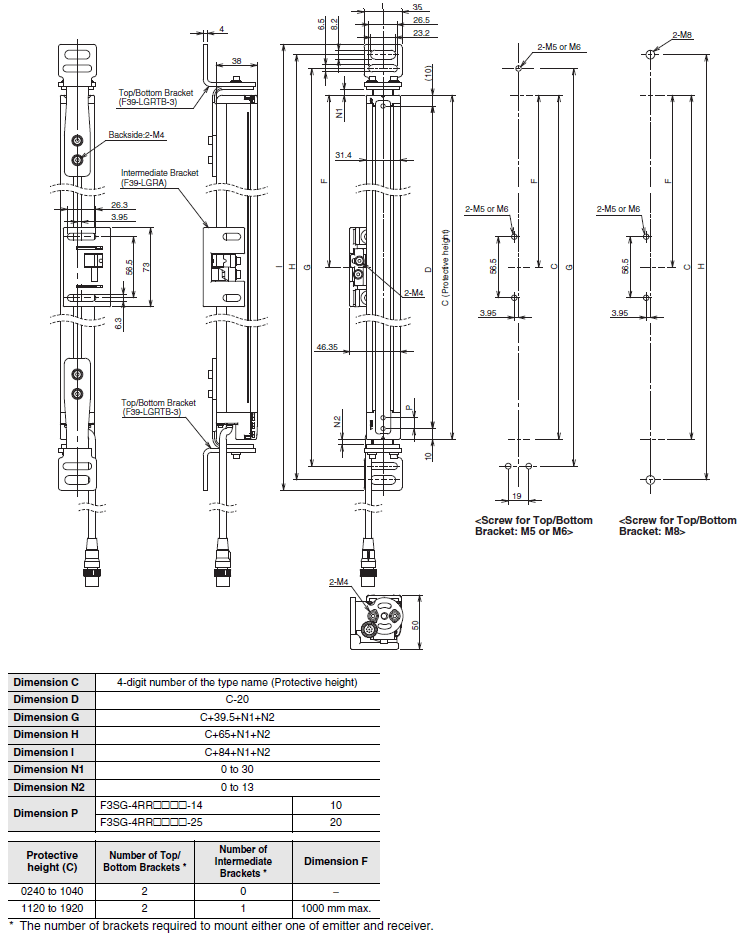

Mounted with Top/Bottom Brackets (F39-LGRTB-3) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting
Accessories
Sensor Mounting Brackets

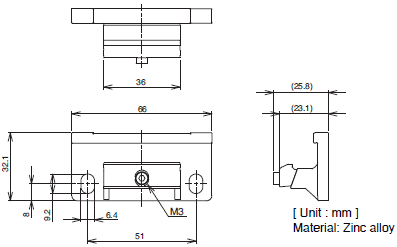

Free-Location Bracket / Intermediate Bracket (F39-LGRA, sold separately)

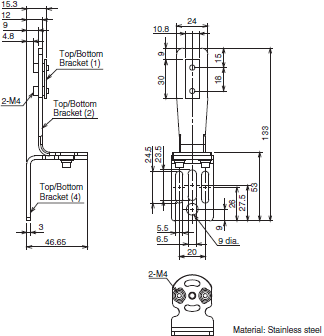

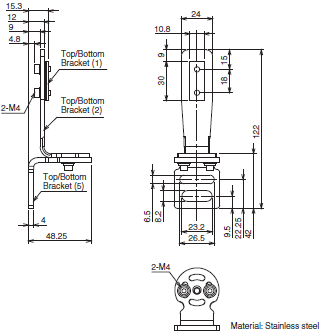

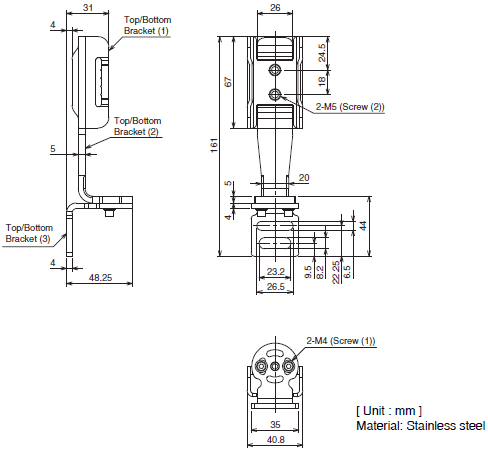

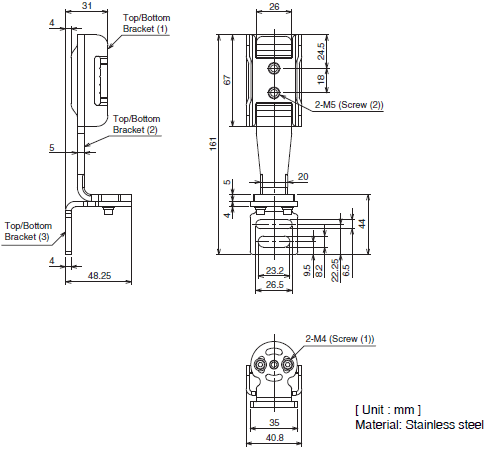

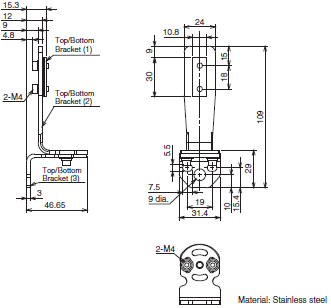

Top/Bottom Bracket (F39-LGRTB, sold separately)

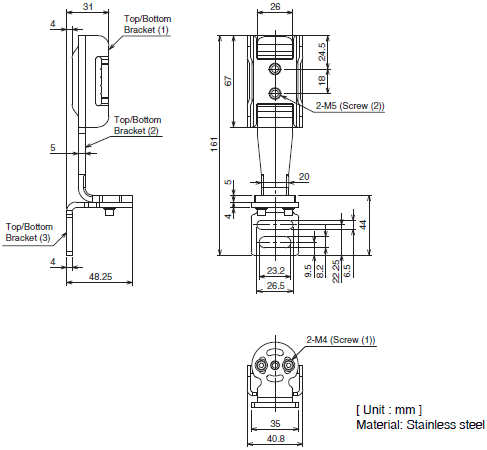

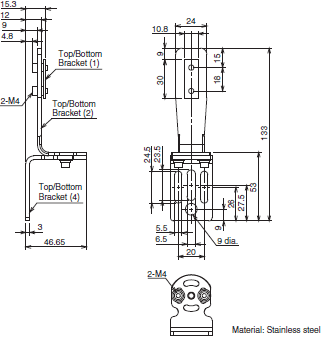

Top/Bottom Bracket (F39-LGRTB-2, sold separately)

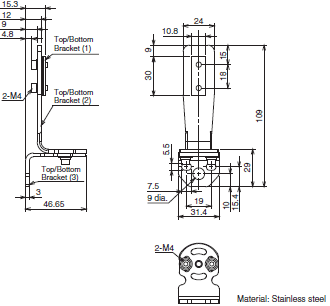

Top/Bottom Bracket (F39-LGRTB-3, sold separately)
Safety light curtain connecting cable

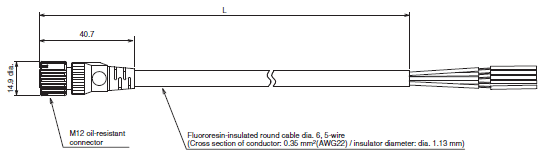

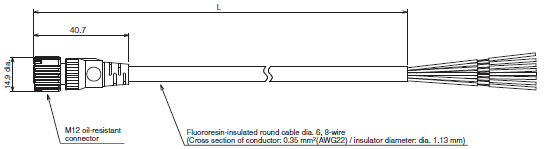

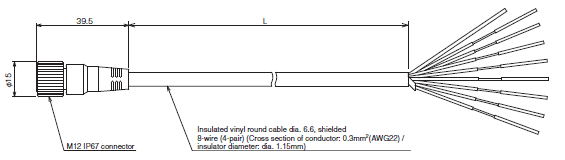

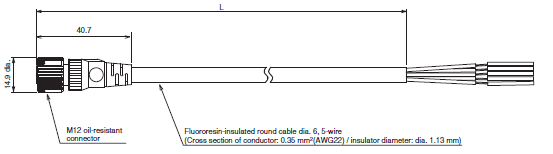

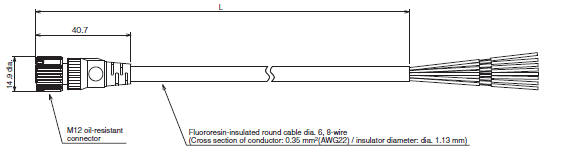

Single-Ended Cable for Emitter (Oil-Resistant Cable) (F39-JD[]RA-L, sold separately)
Single-Ended Cable for Receiver (Oil-Resistant Cable) (F39-JD[]RA-D, sold separately)

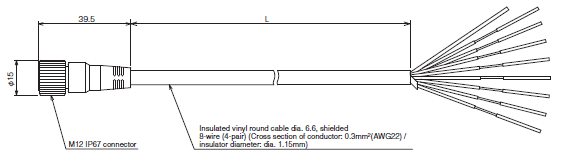

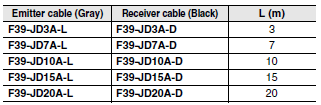

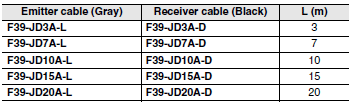

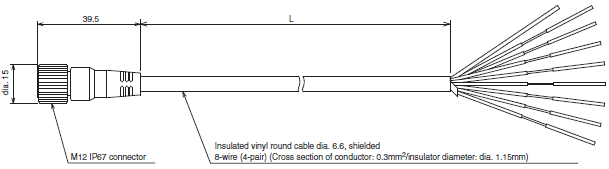

Single-Ended Cable for Emitter (F39-JD[]A-L, sold separately)
Single-Ended Cable for Receiver (F39-JD[]A-D, sold separately)

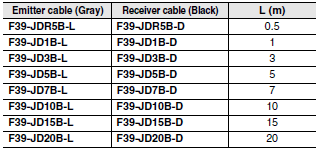

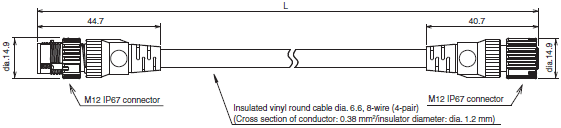

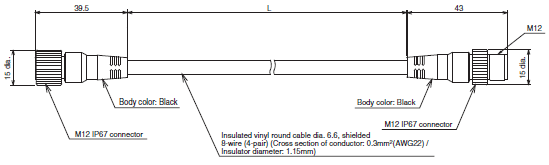

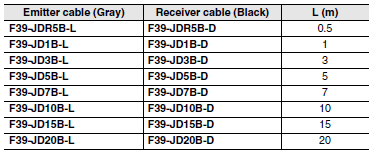

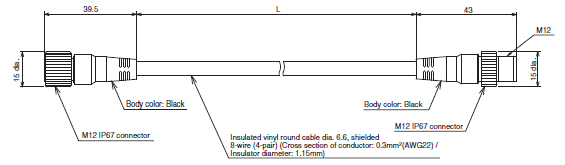

Double-Ended Cable for Emitter: Cable for extension (F39-JD[]B-L, sold separately)
Double-Ended Cable for Receiver: Cable for extension (F39-JD[]B-D, sold separately)

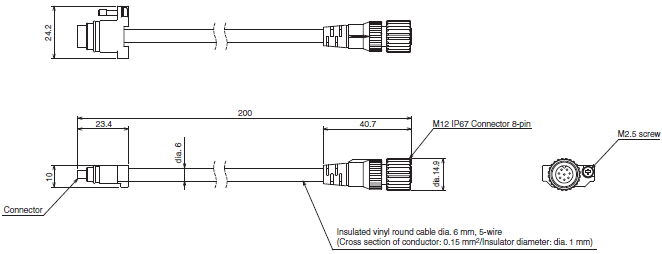

Reduced Wiring Connector (F39-CN5, sold separately)

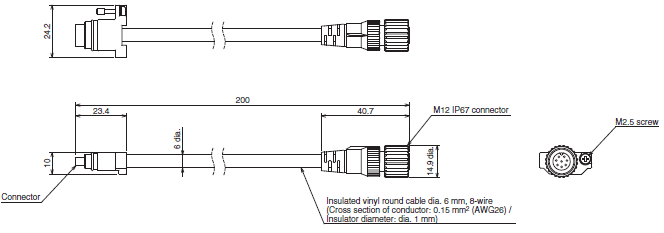

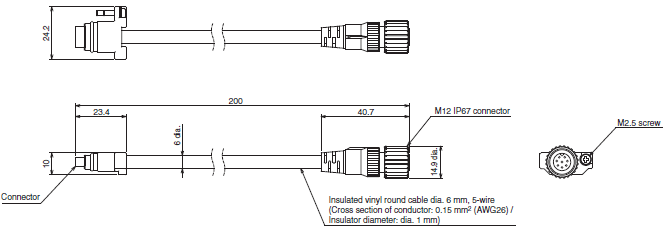

Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)
Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)
Interface Unit (F39-GIF-1, sold separately)
Bluetooth Communication Unit (F39-BT, sold separately)

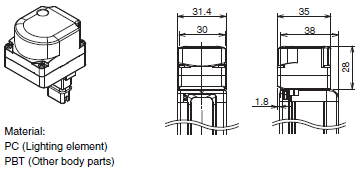

Lamp and Bluetooth Communication Unit (F39-BTLP, sold separately) Lamp (F39-LP, sold separately)
F3SG-RE Easy type

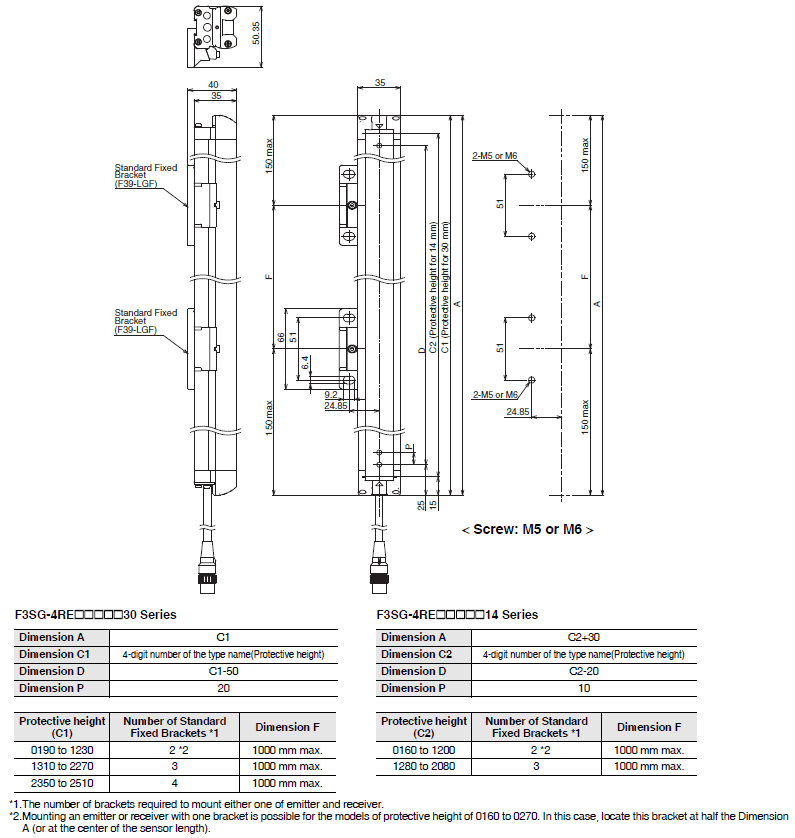

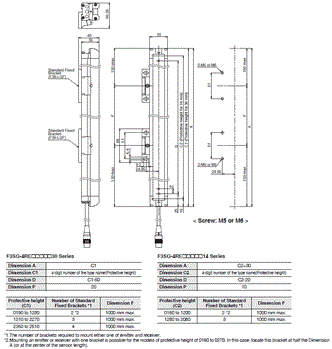

Mounted with Standard Fixed Brackets (F39-LGF)
Backside Mounting
Side Mounting

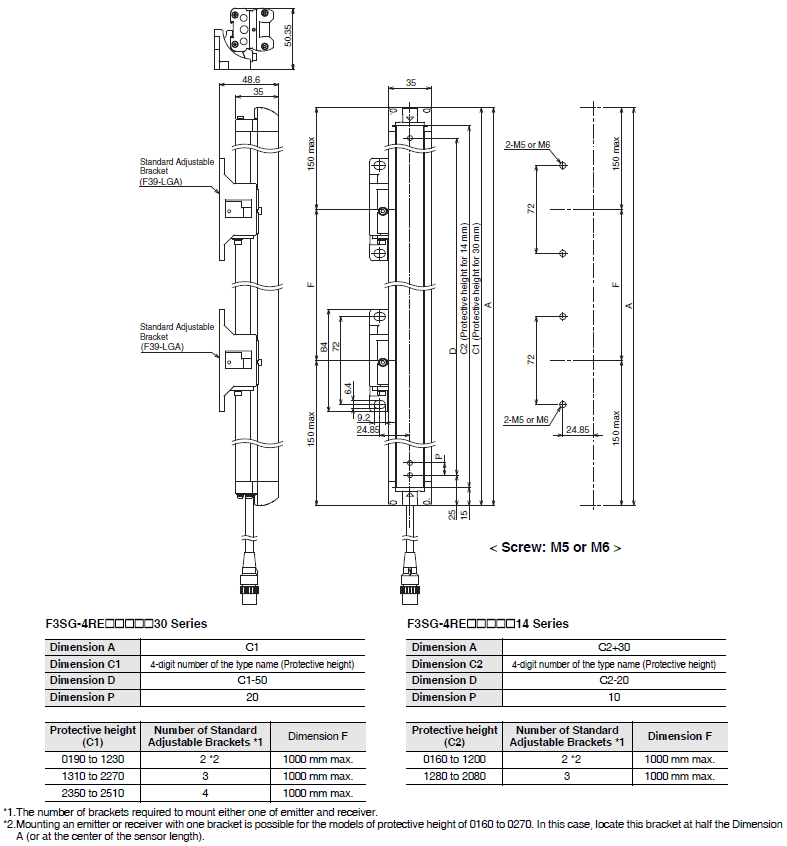

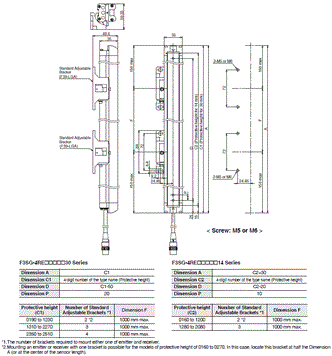

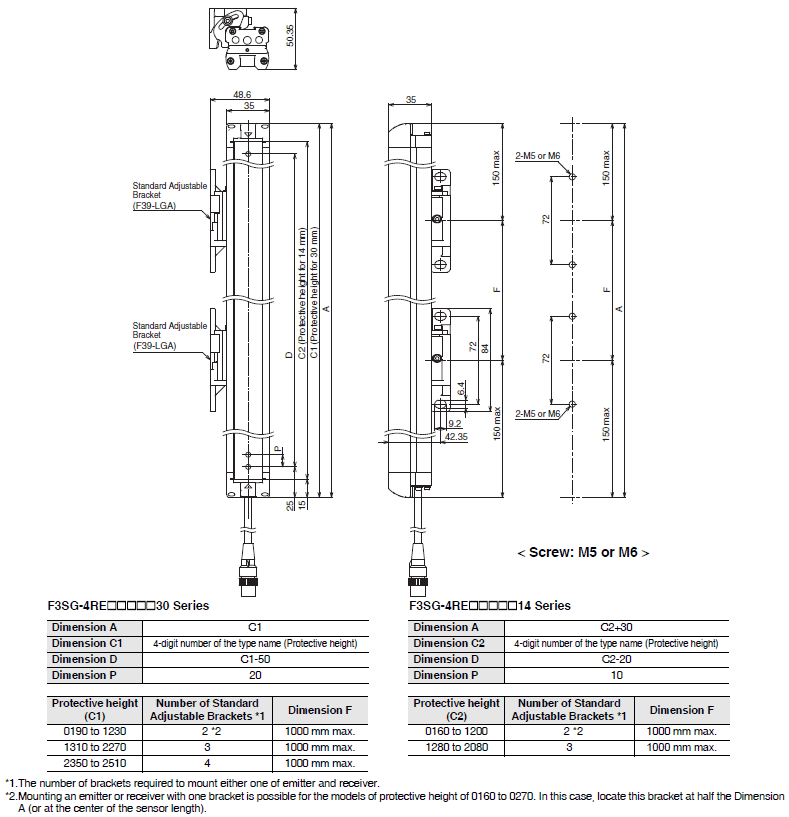

Mounted with Standard Fixed Brackets (F39-LGA)
Backside Mounting
Side Mounting

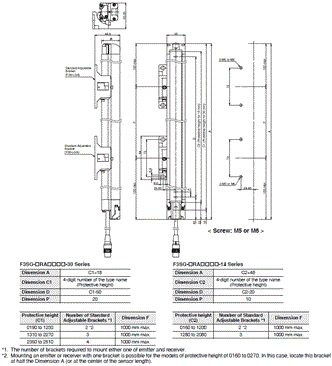

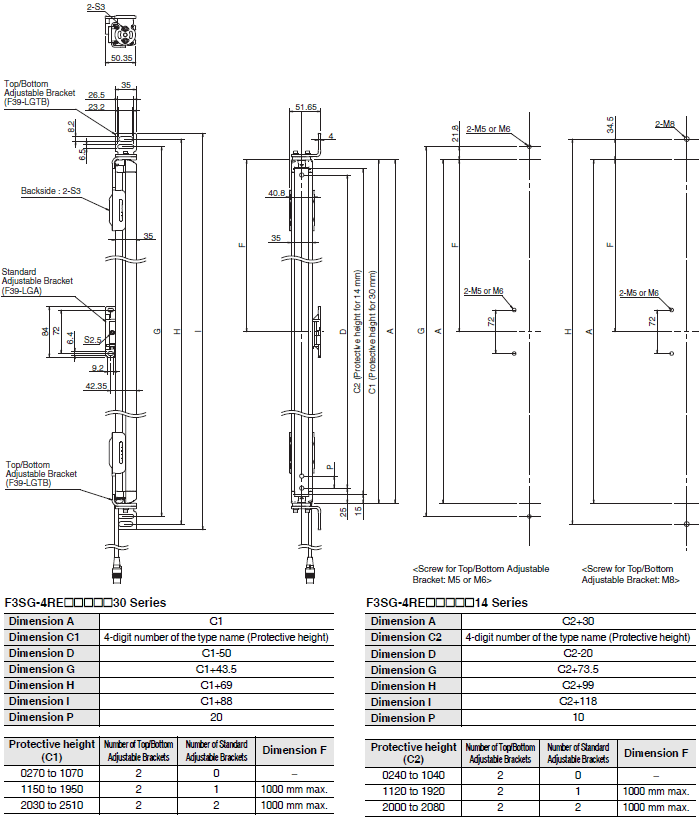

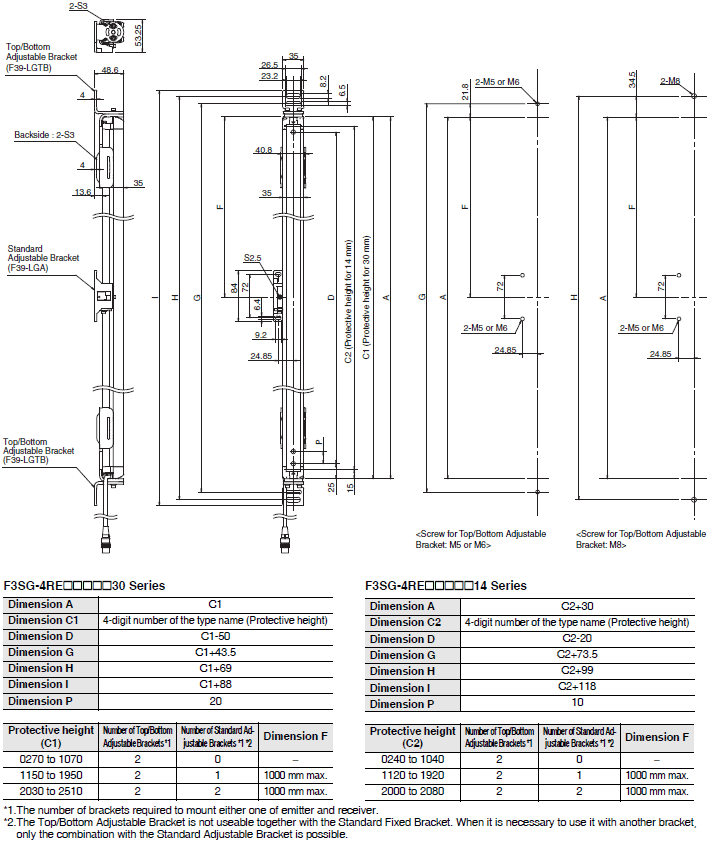

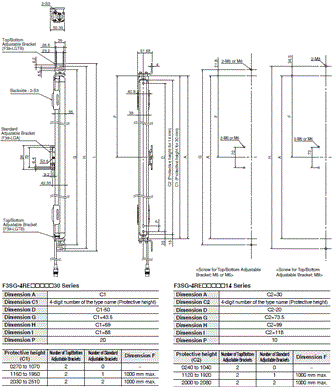

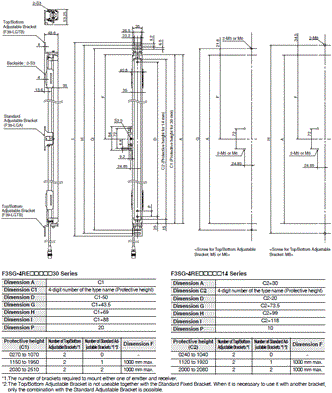

Mounted with Top/Bottom Adjustable Brackets (F39-LGTB) and Standard Adjustable Brackets (F39-LGA)

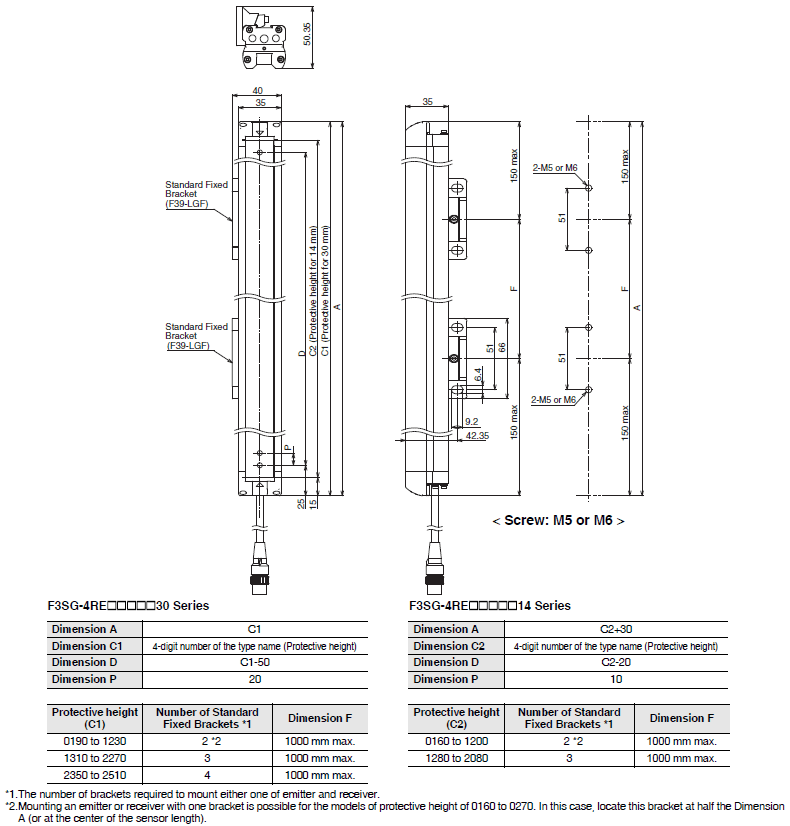

Dimensions when using the F3SG-RE Series except the F3SG-4RE0190[]30 and F3SG-4RE0160[]14
Refer to Safety Light Curtain F3SG-R Series User's Manual for the dimensions when using the F3SG-4RE0190[]30 and F3SG-4RE0160[]14.
Backside Mounting
Side Mounting
Accessories
Sensor Mounting Brackets

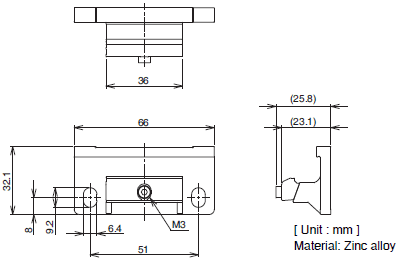

Standard Fixed Bracket (F39-LGF)
Standard Adjustable Bracket (F39-LGA, sold separately)
Top/Bottom Adjustable Bracket (F39-LGTB, sold separately)
Safety light curtain connecting cable

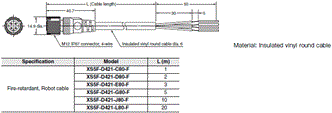

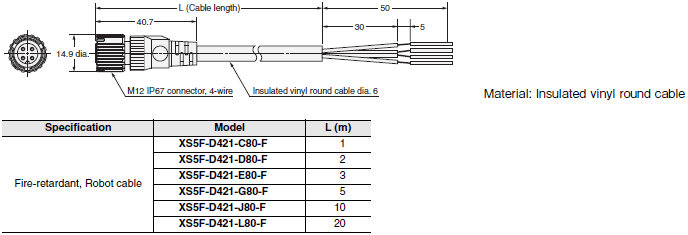

Round Water-resistant Connector: Connector Connected to Cable, Socket on One Cable End (XS5F-D421-[]80-F, sold separately)

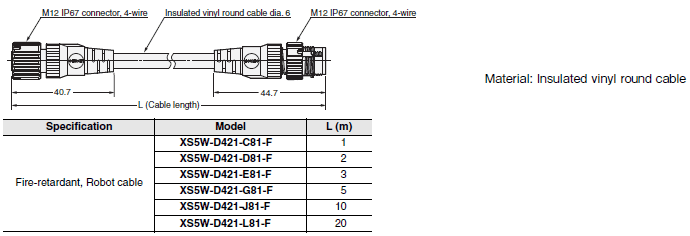

Round Water-resistant Connector: Connectors Connected to Cable, Socket and Plug on Cable Ends (XS5W-D421-[]81-F, sold separately)
Y-Joint Plug/Socket Connector (F39-GCNY1, sold separately)

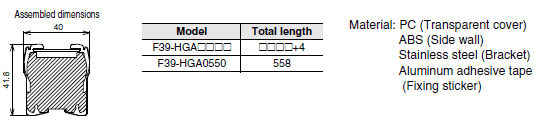

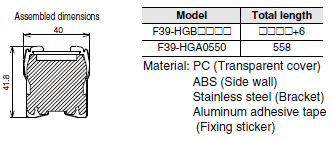

Spatter Protection Cover(F39-HGA/-HGB, sold separately)
F3SG-RA-01TS

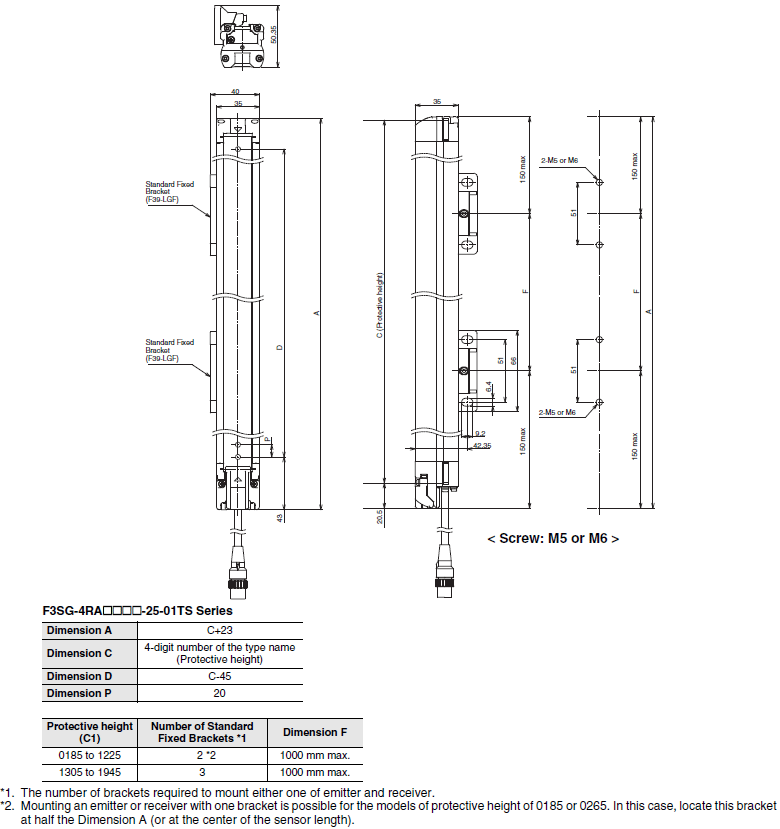

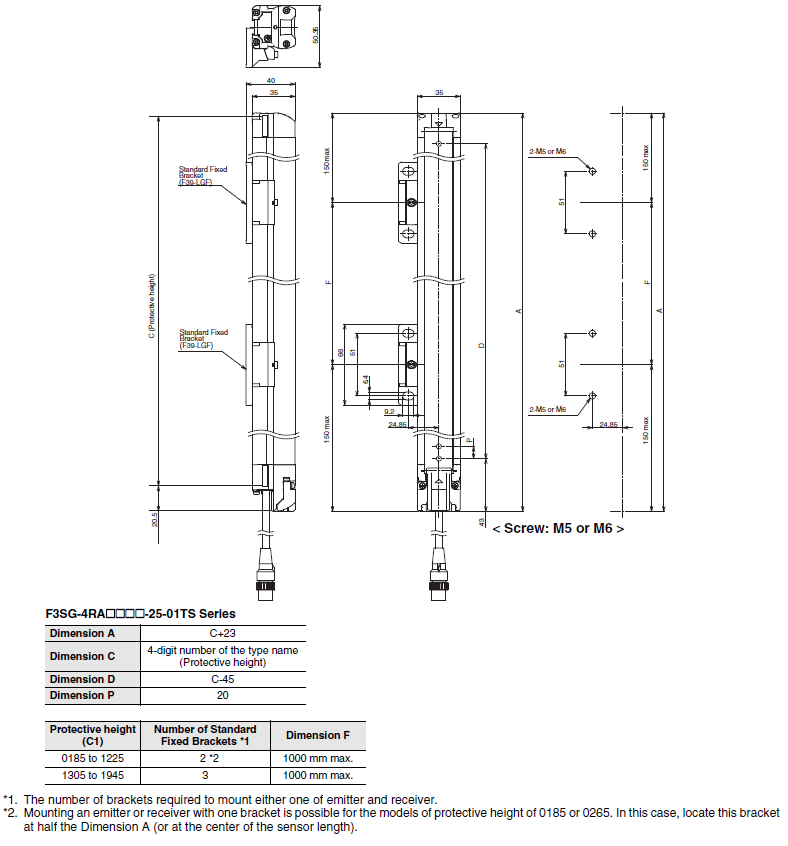

Mounted with Standard Fixed Brackets (F39-LGF)
Backside Mounting
Side Mounting
Mounted with Standard Adjustable Brackets (F39-LGA)
Backside Mounting
Side Mounting

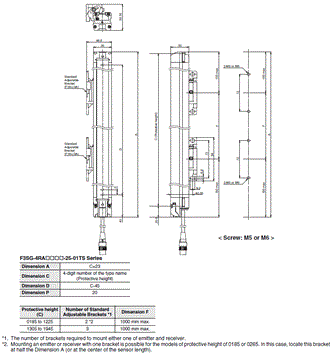

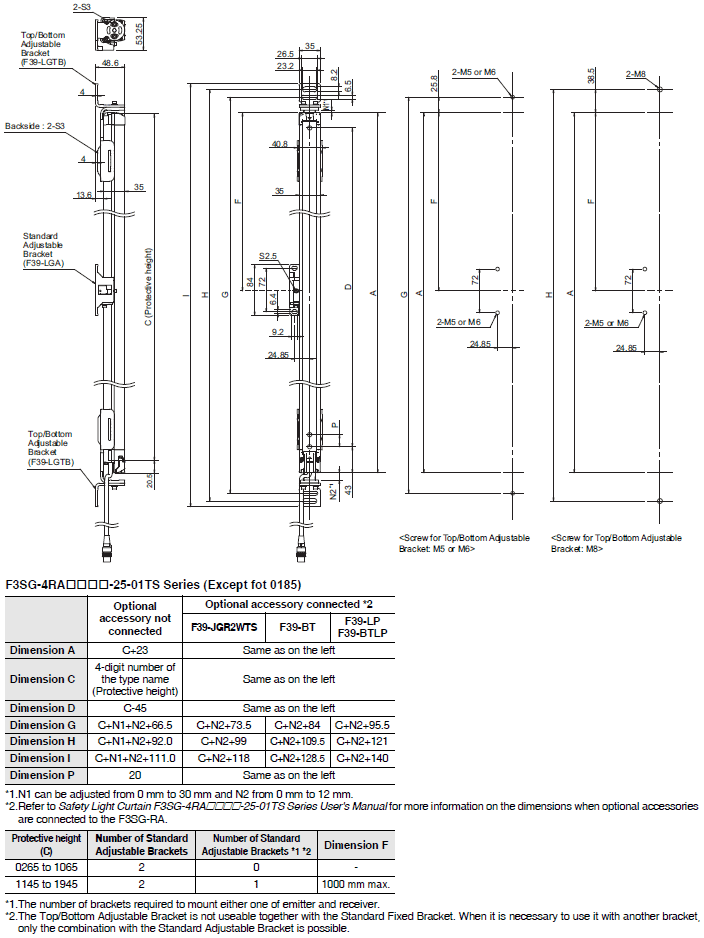

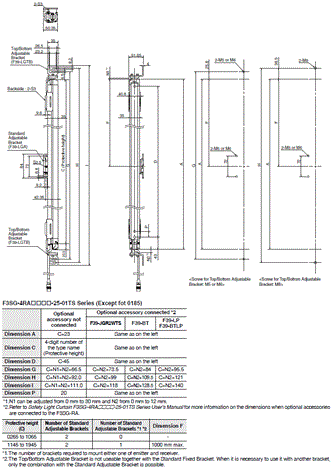

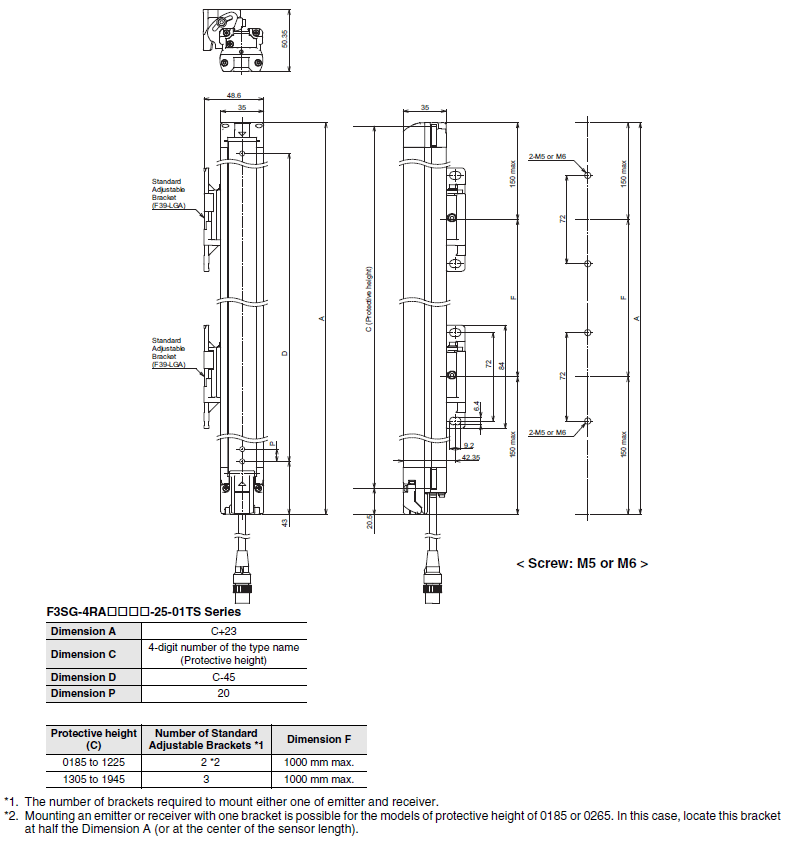

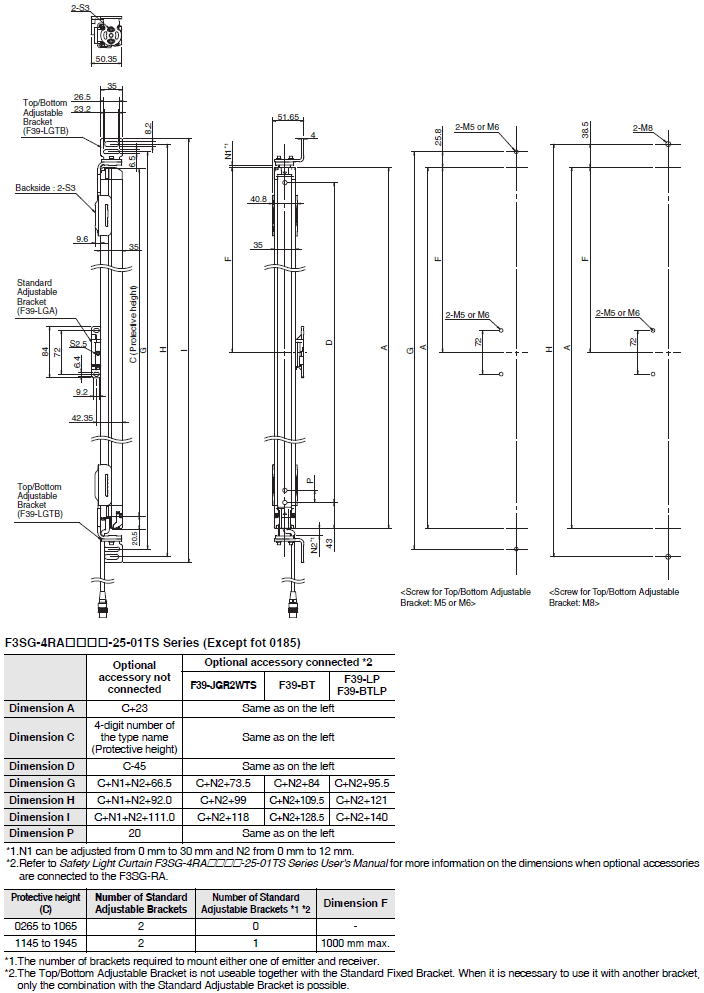

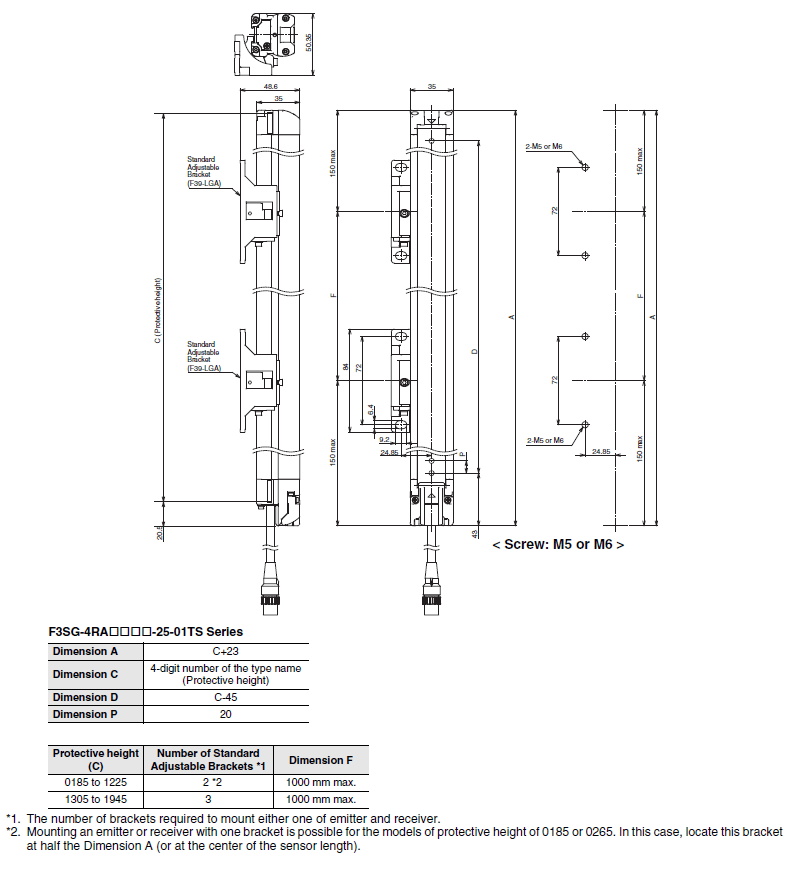

Mounted with Top/Bottom Adjustable Brackets (F39-LGTB) and Standard Adjustable Brackets (F39-LGA)
Dimensions when using the F3SG-RA Series except the F3SG-4RA0185-25-01TS.
Refer to Safety Light Curtain F3SG-4RA[][][][]-25-01TS Series User's Manual for the dimensions when using the F3SG-4RA0185-25-01TS.
Backside Mounting
Side Mounting
Accessories
Sensor Mounting Brackets
Standard Fixed Bracket (F39-LGF)
Standard Adjustable Bracket (F39-LGA, sold separately)
Top/Bottom Adjustable Bracket (F39-LGTB, sold separately)
Safety light curtain connecting cable

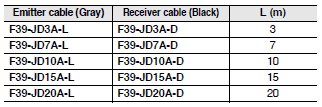

Single-Ended Cable for Emitter (F39-JD[]A-L, sold separately)
Single-Ended Cable for Receiver (F39-JD[]A-D, sold separately)

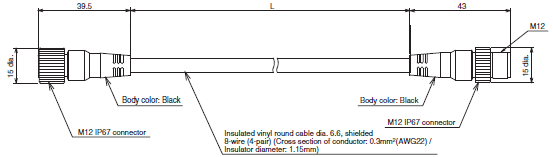

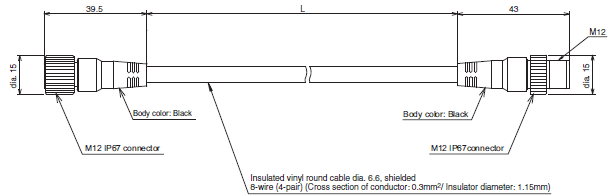

Double-Ended Cable for Emitter: Cable for extension (F39-JD[]B-L, sold separately)
Double-Ended Cable for Receiver: Cable for extension (F39-JD[]B-D, sold separately)
Reduced Wiring Connector (F39-CN5, sold separately)
Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)
Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)
Interface Unit (F39-GIF, sold separately)
Spatter Protection Cover (F39-HGA, sold separately)
Bluetooth Communication Unit (F39-BT, sold separately)
Lamp and Bluetooth Communication Unit (F39-BTLP, sold separately)
Lamp (F39-LP, sold separately)

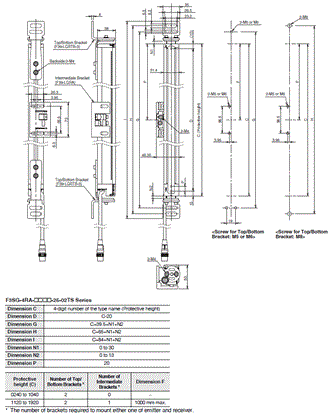

F3SG-RA-02TS

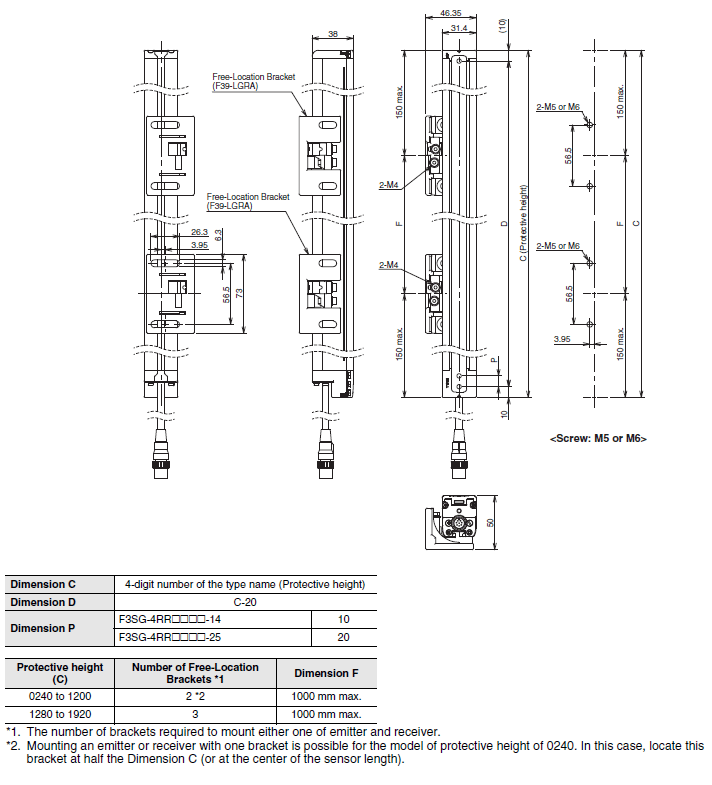

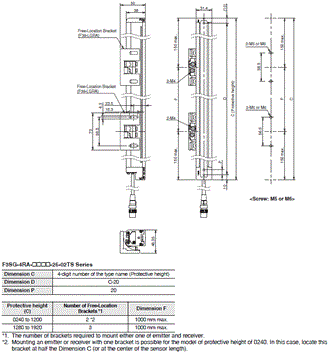

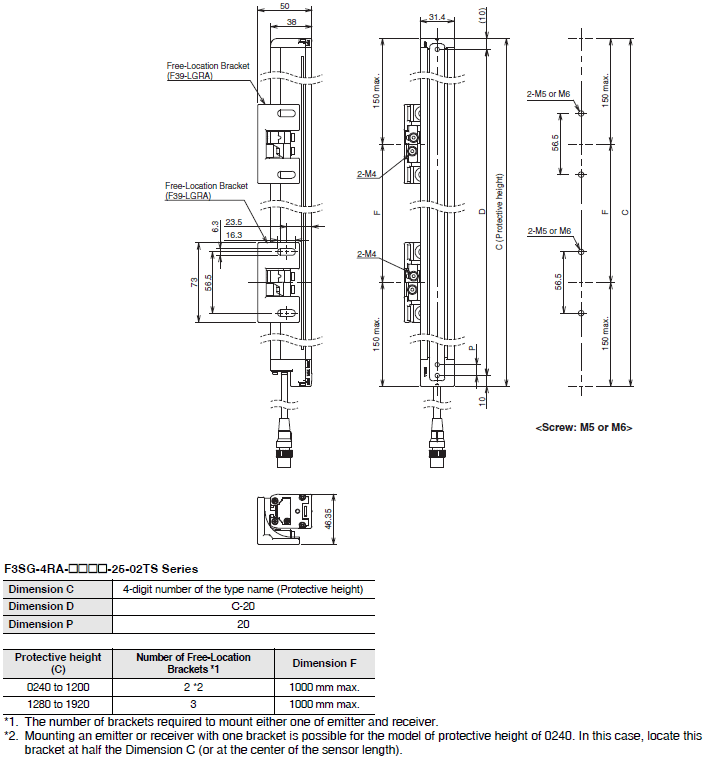

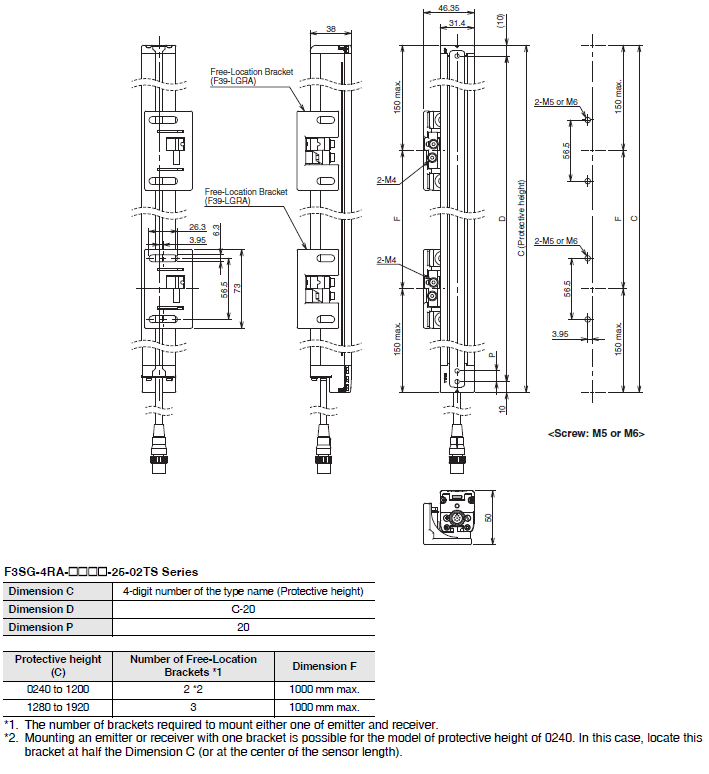

Mounted with Free-Location Brackets (F39-LGRA)
Backside Mounting
Side Mounting

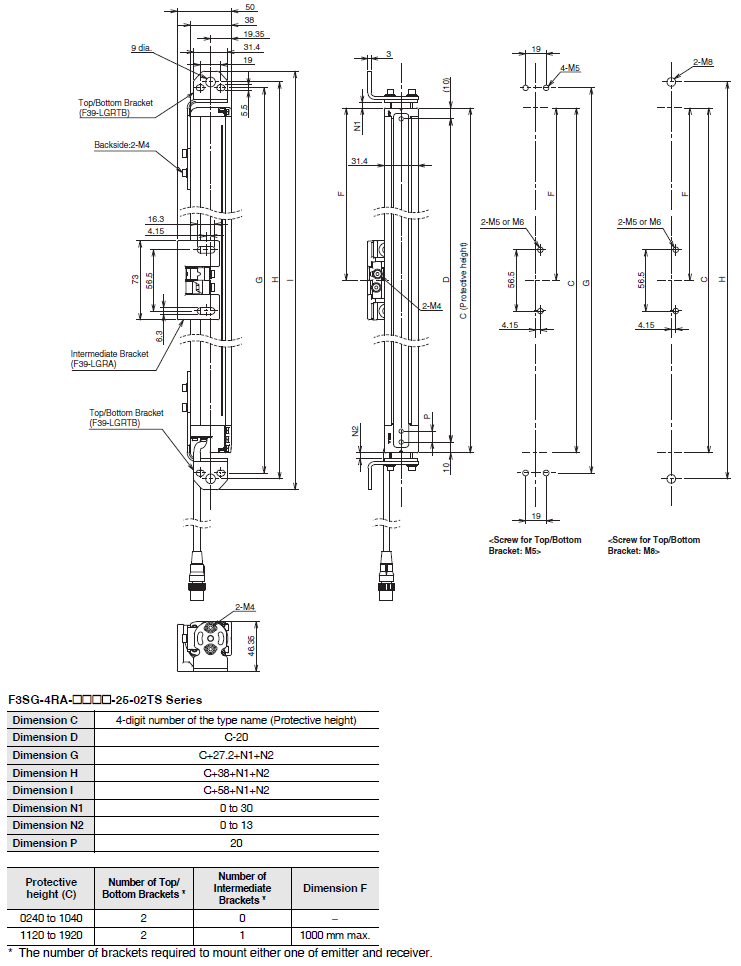

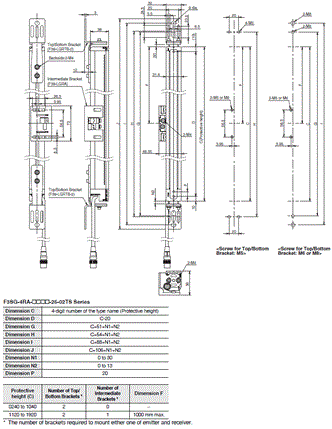

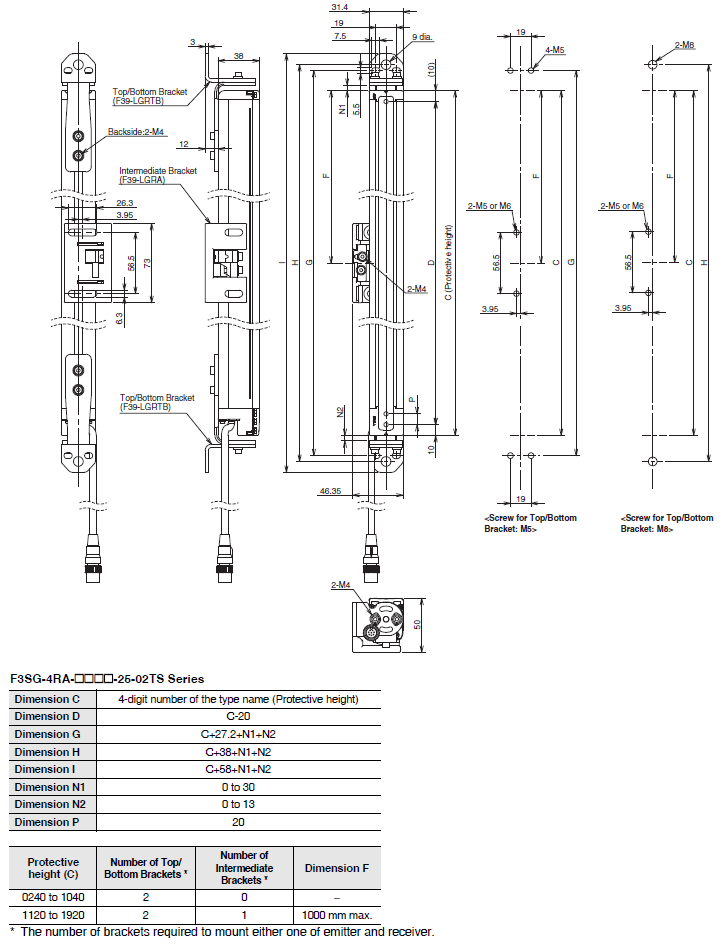

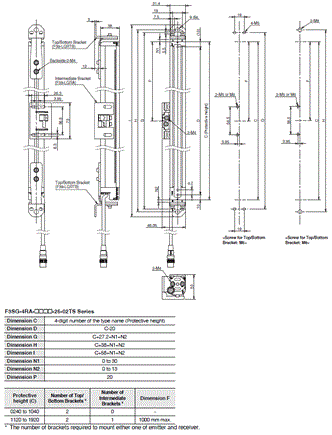

Mounted with Top/Bottom Brackets (F39-LGRTB) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting

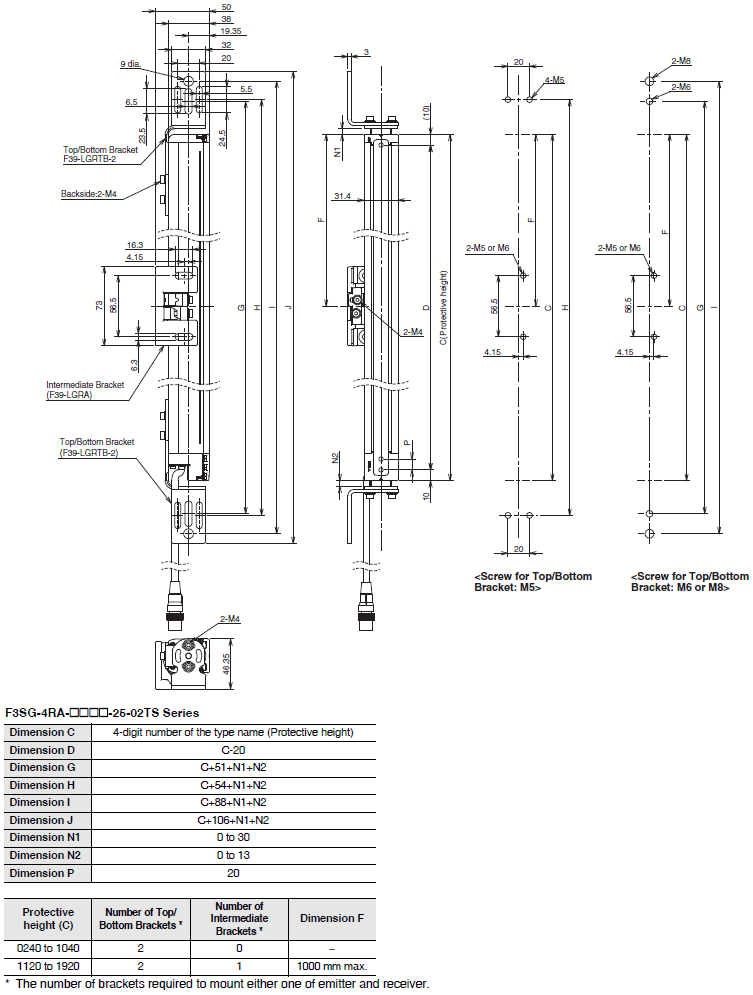

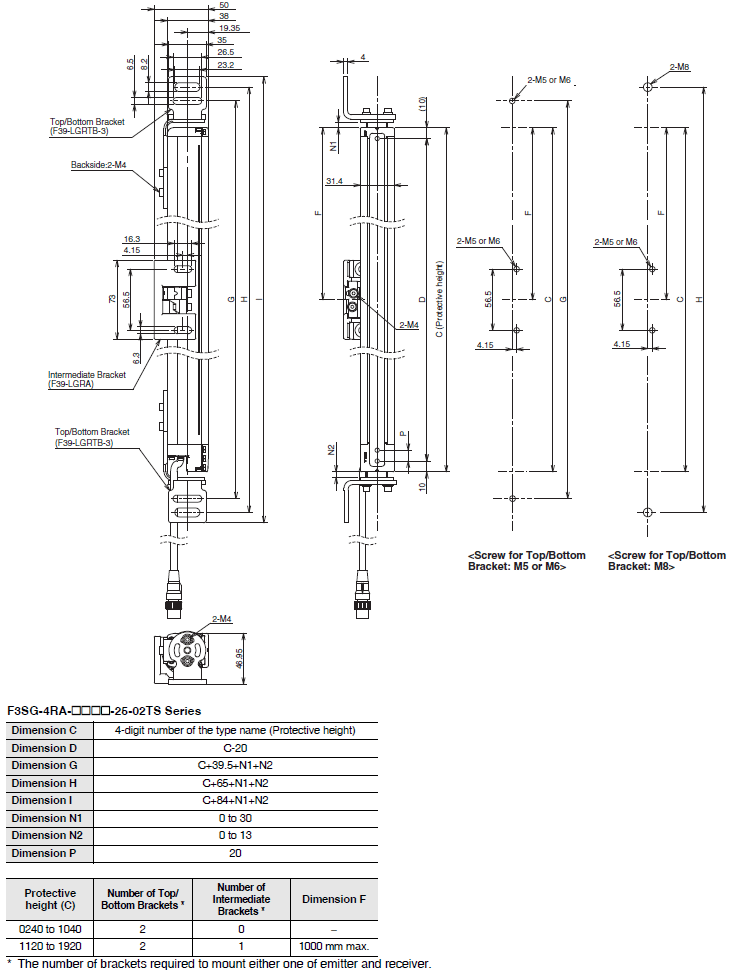

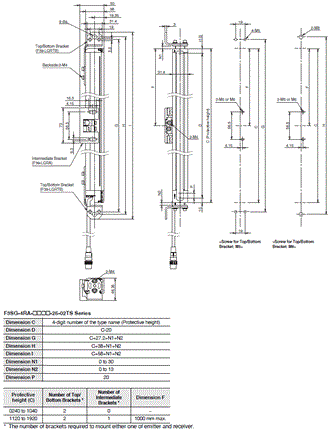

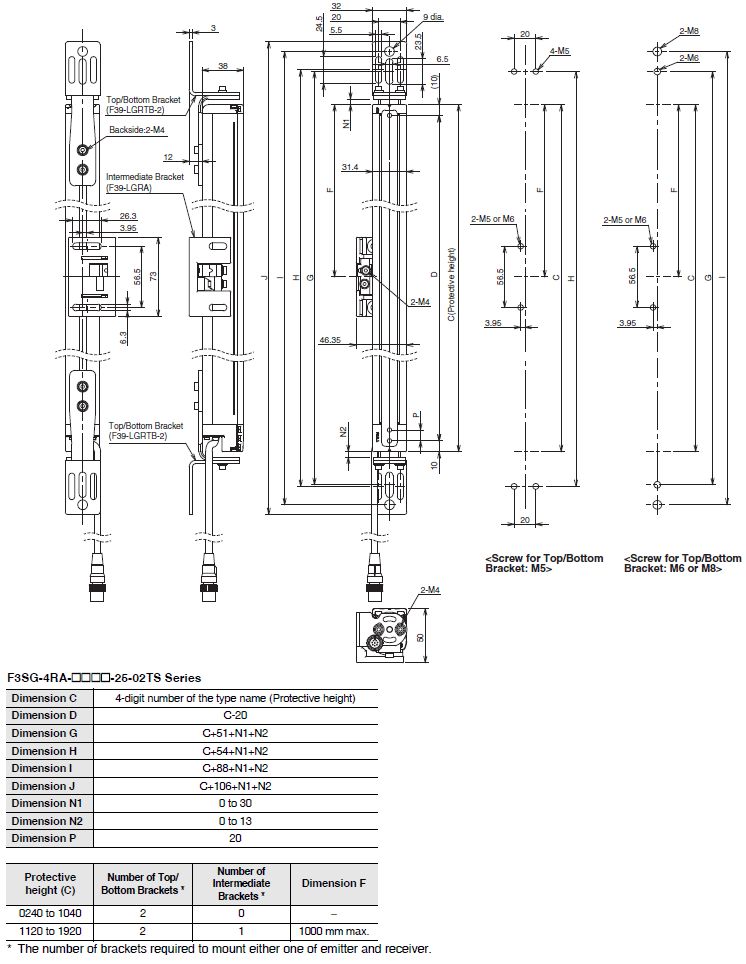

Mounted with Top/Bottom Brackets (F39-LGRTB-2) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting

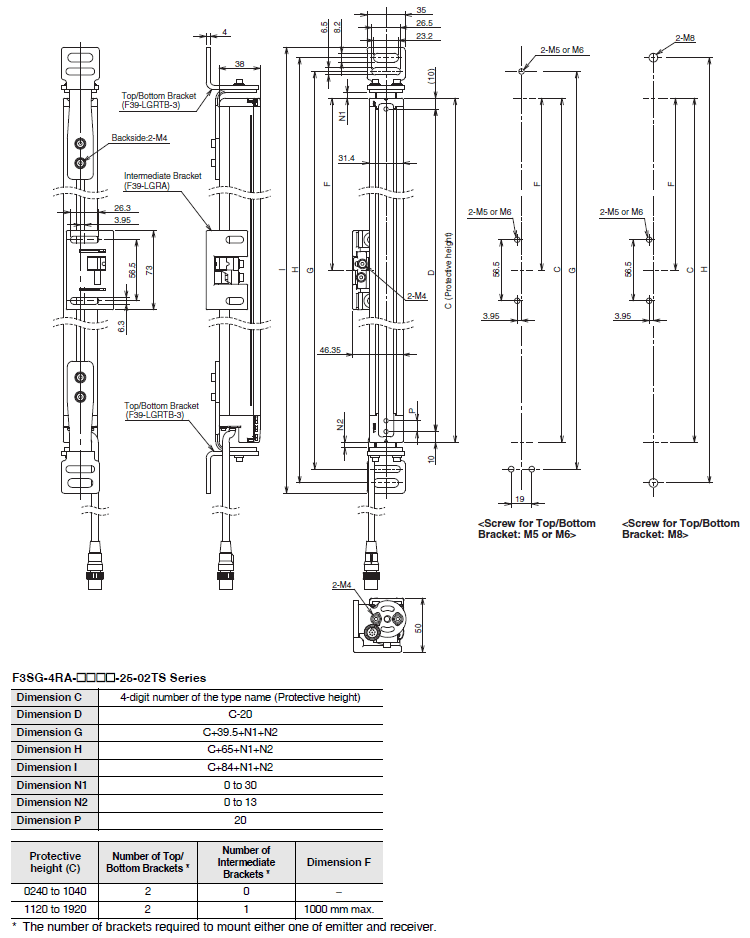

Mounted with Top/Bottom Brackets (F39-LGRTB-3) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting
Accessories
Sensor Mounting Brackets
Free-Location Bracket / Intermediate Bracket (F39-LGRA, sold separately
Top/Bottom Bracket (F39-LGRTB, sold separately)
Top/Bottom Bracket (F39-LGRTB-2, sold separately)
Top/Bottom Bracket (F39-LGRTB-3, sold separately)
Safety light curtain connecting cable
Single-Ended Cable for Emitter (Oil-Resistant Cable) (F39-JD[]RA-L, sold separately)
Single-Ended Cable for Receiver (Oil-Resistant Cable) (F39-JD[]RA-D, sold separately)
Single-Ended Cable for Emitter (F39-JD[]A-L, sold separately)
Single-Ended Cable for Receiver (F39-JD[]A-D, sold separately)

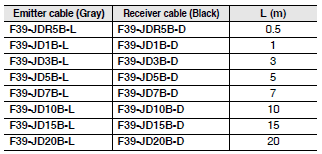

Double-Ended Cable for Emitter: Cable for extension (F39-JD[]B-L, sold separately)
Double-Ended Cable for Receiver: Cable for extension (F39-JD[]B-D, sold separately)

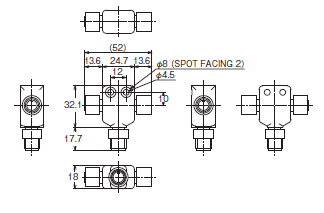

Reduced Wiring Connector (F39-CN5, sold separately)

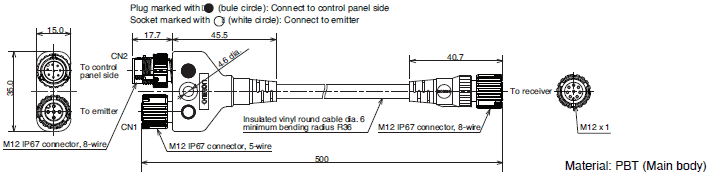

Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)
Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)
Interface Unit (F39-GIF-1, sold separately)
Bluetooth Communication Unit (F39-BT, sold separately)
Lamp and Bluetooth Communication Unit (F39-BTLP, sold separately)

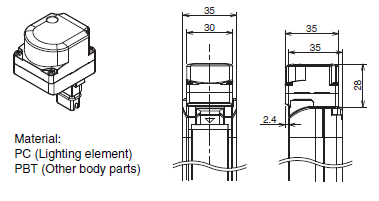

Lamp (F39-LP, sold separately)
last update: December 9, 2021
