UMA Series

Safety Mat

UMA Series

Easy-to-install safety mat with advanced features

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: October 2, 2017

(Unit: mm)

Safety Mat

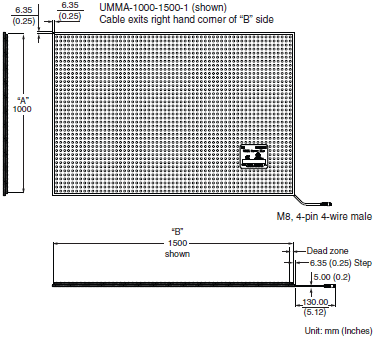

1-cable mat

UM[][]A-[]-[]-1

The UM[][]A-[]-[]-1 mat comes with a short 4-conductor quick disconnect cables with M8 4-pin connector at a corner of the safety mat.

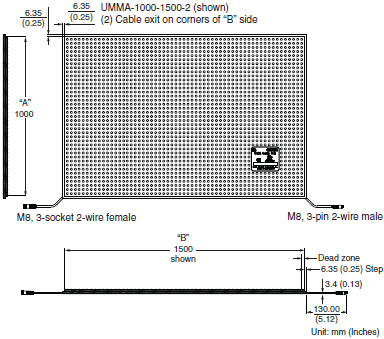

2-cable mat

UM[][]A-[]-[]-2

The UM[][]A-[]-[]-2 mat comes with two short 2-conductor quick disconnect cables with M8 3-pin connector at two corners of the safety mat.

*1. Refer to Model Number Structure on Data Sheet for more information.

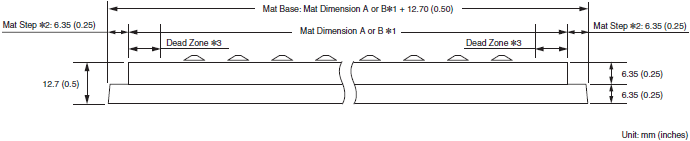

*2. "Step" portion of mat (inactive) is used to "seat/place/hold" trim.
*3. The mat has the following inactive (non-sensing) area:
- 10 mm (20 mm at corners) with a test piece of 80 mm diameter
- 15 mm (30 mm at corners) with a test piece of 11 mm diameter

Example dimensions: UMMA-0500-0500-[]

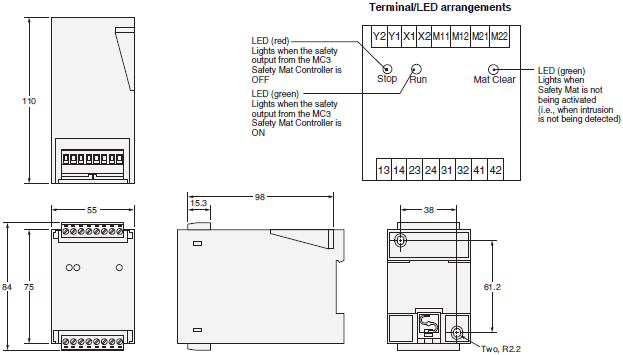

Mat Controller

MC3

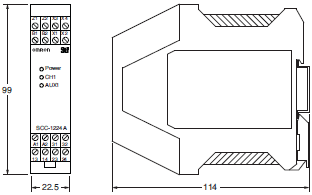

Safety Mat/Edge Controller

SCC-1224A

Accessories

Cables

Using with 1-Cable Mats

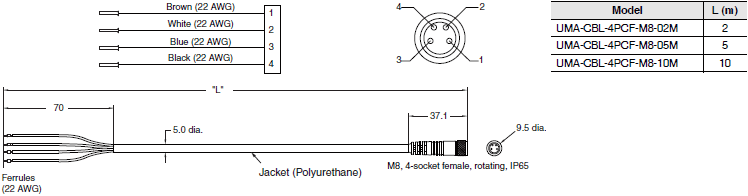

Single Connector Cable (M8, 4-socket)
Single connector cable to connect a 1-cable UMA Safety Mat to a MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX-series Safety Controller.
UMA-CBL-4PCF-M8-[]M

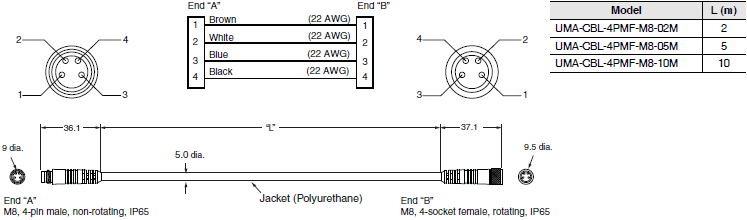

Male-Female Extension Cable (M8, 4-pin)
Extension cable to connect a 1-cable UMA Safety Mat to a UMA-CBL-4PCF-M8-[]M Single Connector Cable.
UMA-CBL-4PMF-M8-[]M

Using with 2-Cable Mats

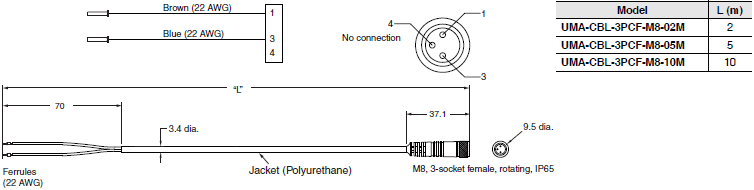

Single Connector Cable (M8, 3-socket)
Single connector cable to connect a 2-cable UMA Safety Mat to a MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX-series Safety Controller.
UMA-CBL-3PCF-M8-[]M

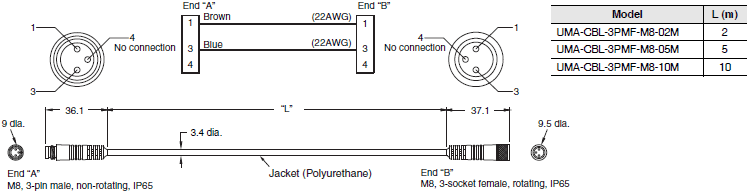

Male-Female Extension Cable (M8, 3-pin)

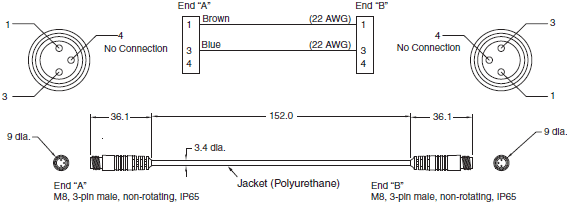

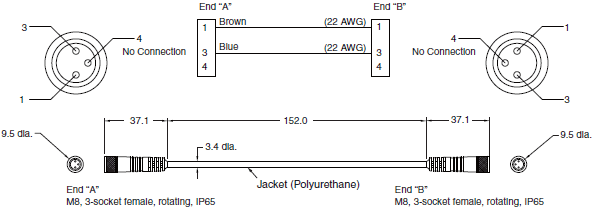

Extension cable to connect a 2-cable UMA Safety Mat to a UMA-CBL-3PCF-M8-[]M Single Connector Cable or connect multiple 2-cable UMA Safety Mats in series.
UMA-CBL-3PMF-M8-[]M
