VHV5-F

Autofocus Multicode Reader and In-Line Verifier

VHV5-F

High-performance barcode reader and in-line verifier.

Related Contents

last update: July 1, 2026

Model Number Structure

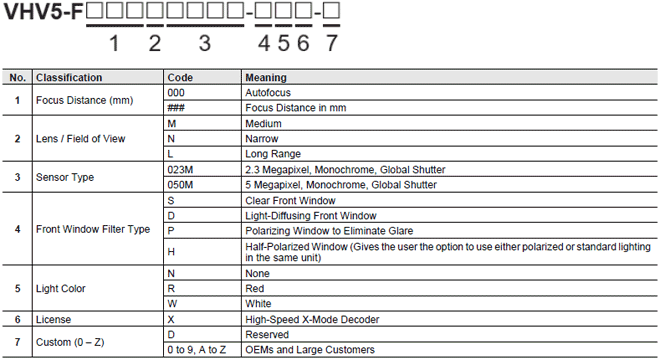

Use the table below to determine the product specifications of your reader or verifier from the model number on the label.

Important: Please see the next section for the full list of orderable model numbers. All other variations should be assembled using standard models combined with available accessories.

VHV5-F – Autofocus Multicode Reader, IP69K Enclosure, 24V/PoE, Serial, Digital IO, Ethernet.

VHV5-F Lineup 1

Ordering Information

Standard Orderable Reader and In-Line Verifier Models

Standard Red 2.3 MP Reader and Standard Red 5 MP Reader

Appearance Standard Red 2.3 MP Reader Part Number
3946_lu_2_1 VHV5-F, Autofocus, Wide Lens, 2.3 MP, Standard Red Light,
X-Mode Reader		 VHV5-F000W023M-SRX
VHV5-F, Autofocus, Medium Lens, 2.3 MP, Standard Red Light,
X-Mode Reader		 VHV5-F000M023M-SRX
VHV5-F, Autofocus, Narrow Lens, 2.3 MP, Standard Red Light,
X-Mode Reader		 VHV5-F000N023M-SRX
VHV5-F, Autofocus, Long Lens, 2.3 MP, Standard Red Light,
X-Mode Reader		 VHV5-F000L023M-SRX
Standard Red 5 MP Reader Part Number
VHV5-F, Autofocus, Wide Lens, 5.0 MP, Standard Red Light,
X-Mode Reader		 VHV5-F000W050M-SRX
VHV5-F, Autofocus, Medium Lens, 5.0 MP, Standard Red Light,
X-Mode Reader		 VHV5-F000M050M-SRX
VHV5-F, Autofocus, Narrow Lens, 5.0 MP, Standard Red Light,
X-Mode Reader		 VHV5-F000N050M-SRX
VHV5-F, Autofocus, Long Lens, 5.0 MP, Standard Red Light,
X-Mode Reader		 VHV5-F000L050M-SRX

Standard White 2.3 MP Reader and Standard White 5 MP Reader

Appearance Standard White 2.3 MP Reader Part Number
3946_lu_3_1 VHV5-F, Autofocus, Wide Lens, 2.3 MP, Standard White Light,
X-Mode Reader		 VHV5-F000W023M-SWX
VHV5-F, Autofocus, Medium Lens, 2.3 MP, Standard White Light,
X-Mode Reader		 VHV5-F000M023M-SWX
VHV5-F, Autofocus, Narrow Lens, 2.3 MP, Standard White Light,
X-Mode Reader		 VHV5-F000N023M-SWX
VHV5-F, Autofocus, Long Lens, 2.3 MP, Standard White Light,
X-Mode Reader		 VHV5-F000L023M-SWX
Standard White 5 MP Reader Part Number
VHV5-F, Autofocus, Wide Lens, 5.0 MP, Standard White Light,
X-Mode Reader		 VHV5-F000W050M-SWX
VHV5-F, Autofocus, Medium Lens, 5.0 MP, Standard White Light,
X-Mode Reader		 VHV5-F000M050M-SWX
VHV5-F, Autofocus, Narrow Lens, 5.0 MP, Standard White Light,
X-Mode Reader		 VHV5-F000N050M-SWX
VHV5-F, Autofocus, Long Lens, 5.0 MP, Standard White Light,
X-Mode Reader		 VHV5-F000L050M-SWX

Standard Red 2.3 MP Reader with Half Polarizer and Standard Red 5 MP Reader with Half Polarizer

Appearance Standard Red 2.3 MP Reader with Half Polarizer Part Number
3946_lu_4_1 VHV5-F, Autofocus, Wide Lens, 2.3 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader		 VHV5-F000W023M-HRX
VHV5-F, Autofocus, Medium Lens, 2.3 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader		 VHV5-F000M023M-HRX
VHV5-F, Autofocus, Narrow Lens, 2.3 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader		 VHV5-F000N023M-HRX
VHV5-F, Autofocus, Long Lens, 2.3 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader		 VHV5-F000L023M-HRX
Standard Red 5 MP Reader with Half Polarizer Part Number
VHV5-F, Autofocus, Wide Lens, 5.0 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader		 VHV5-F000W050M-HRX
VHV5-F, Autofocus, Medium Lens, 5.0 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader		 VHV5-F000M050M-HRX
VHV5-F, Autofocus, Narrow Lens, 5.0 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader		 VHV5-F000N050M-HRX
VHV5-F, Autofocus, Long Lens, 5.0 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader		 VHV5-F000L050M-HRX

Standard Red 2.3 MP In-Line Verifier and Standard Red 5 MP In-Line Verifier

Appearance Standard Red 2.3 MP In-Line Verifier Part Number
3946_lu_10_1 VHV5-F, Autofocus, Medium Lens, 2.3 MP, Standard Red Light,
In-Line Verifier		 VHV5-F000M023M-SRV
VHV5-F, Autofocus, Narrow Lens, 2.3 MP, Standard Red Light,
In-Line Verifier		 VHV5-F000N023M-SRV
VHV5-F, Autofocus, Long Lens, 2.3 MP, Standard Red Light,
In-Line Verifier		 VHV5-F000L023M-SRV
Standard Red 5 MP In-Line Verifier Part Number
VHV5-F, Autofocus, Medium Lens, 5.0 MP, Standard Red Light,
In-Line Verifier		 VHV5-F000M050M-SRV
VHV5-F, Autofocus, Narrow Lens, 5.0 MP, Standard Red Light,
In-Line Verifier		 VHV5-F000N050M-SRV
VHV5-F, Autofocus, Long Lens, 5.0 MP, Standard Red Light,
In-Line Verifier		 VHV5-F000L050M-SRV

Note 1: VHV5-F readers are sold without cables or mounting. These items can be found in later sections.
Note 2: The VHV5-F uses the same Parallel IO cables and interconnect accessories as the MicroHAWK V430-F and V440-F.
Note 3: X-Mode is suitable for all labels as well as low-print-grade codes and DPM.
Note 4: The wide lens is not recommended for in-line verification.

Mounting Accessories

Appearance Type Part Number
3946_lu_5_1 VHV5-F L-Bracket Adjustable Angle Mounting Kit
(VHV5-F only)		 VHV5-AM0
3946_lu_5_2 Universal Mounting Block and Heatsink Kit
(VHV5-F only)		 VHV5-AM1
3946_lu_5_3 VHV5-F APG Pan and Tilt Camera Mount
(VHV5-F only)		 VHV5-AM2

Front Window Accessories

Appearance Type Part Number
3946_lu_6_1 VHV5-F Standard Window (for Wide and Medium Lens Models) VHV5-AF0
3946_lu_6_2 VHV5-F Lensed Window (for Narrow and Long Lens Models) VHV5-AF1
3946_lu_6_3 VHV5-F Diffuser Accessory VHV5-AF2
3946_lu_6_4 VHV5-F Polarizer Accessory VHV5-AF3
3946_lu_6_5 VHV5-F Half Polarizer Accessory VHV5-AF4

Cables

Appearance Category Length / Spec Part Number
3946_lu_7_2 X-Code to RJ45 Ethernet Cable (High Flex, Straight,
Black Jacket)		 2 Meters FHV-VNB2 2M
3 Meters FHV-VNB2 3M
5 Meters FHV-VNB2 5M
10 Meters FHV-VNB2 10M
20 Meters FHV-VNB2 20M
3946_lu_7_3 X-Code to RJ45 Ethernet Cable (High Flex, Right-Angle,
Black Jacket)		 2 Meters FHV-VNLB2 2M
3 Meters FHV-VNLB2 3M
5 Meters FHV-VNLB2 5M
10 Meters FHV-VNLB2 10M
20 Meters FHV-VNLB2 20M
3946_lu_7_4 M12 to Flying Leads Cable - Parallel IO (Power, DIO,
RS-232)		 3 Meters V430-W8-3M
5 Meters V430-W8-5M
10 Meters V430-W8-10M
3946_lu_7_5 M12 to Flying Leads Cable - Parallel IO (Power, DIO,
RS-232) - Right Angle Back		 3 Meters V430-W8LD-3M
3946_lu_7_6 M12 to Flying Leads Cable - Parallel IO (Power, DIO,
RS-232) - Right Angle Front		 3 Meters V430-W8LU-3M
3946_lu_7_7 Reader M12 to RS-232 Breakout Cable 1 Meter V430-WR-1M
3 Meters V430-WR-3M
3946_lu_7_8 VHV5-F to External Light - 5 Pin M12 Plug to 5 Pin
M12 Socket		 1 Meter 61-000184-01
3946_lu_7_9 Cable, Adapter, Omron PLC 2 Meters V430-WPLC-2M
3946_lu_7_10 Reader Interconnect Cable - M12 Socket to M12 Plug 1 Meter V430-WQ-1M
3 Meters V430-WQ-3M
5 Meters V430-WQ-5M
3946_lu_7_11 Reader Interconnect Cable with RS-232 Breakout 3 Meters V430-WQR-3M
5 Meters V430-WQR-5M

* Important: Standard Omron FJ-VSG Ethernet cables are available in alternative and longer lengths.

Verification Accessories

Appearance Category Spec Part Number
(File) Verification License Upgrade for VHV5-F Readers License Key delivered
as a .LIC file		 LIC-0801-009
3946_lu_11_1 Kit - NIST-Certified Calibration Card NIST-Certified
Calibration Card		 98-000265-01
3946_lu_11_2 Kit - Calibration Card Standard Calibration
Card		 98-000265-02

Power Supplies

Appearance Category Length / Spec Part Number
3946_lu_8_1 Standard Reader 24V Power Supply (2.1 A) 1 Meter
U.S. / Euro Plug		 97-000012-01
3946_lu_8_2 Single Port PoE Injector, 30W, IEEE802.3at Compliant,
2 x RJ45 Connector, 90 to 264VAC		 Power Cord NOT Included 98-9000311-01
